LS tractor LL2100 - H y D R a U L I C P I P I N

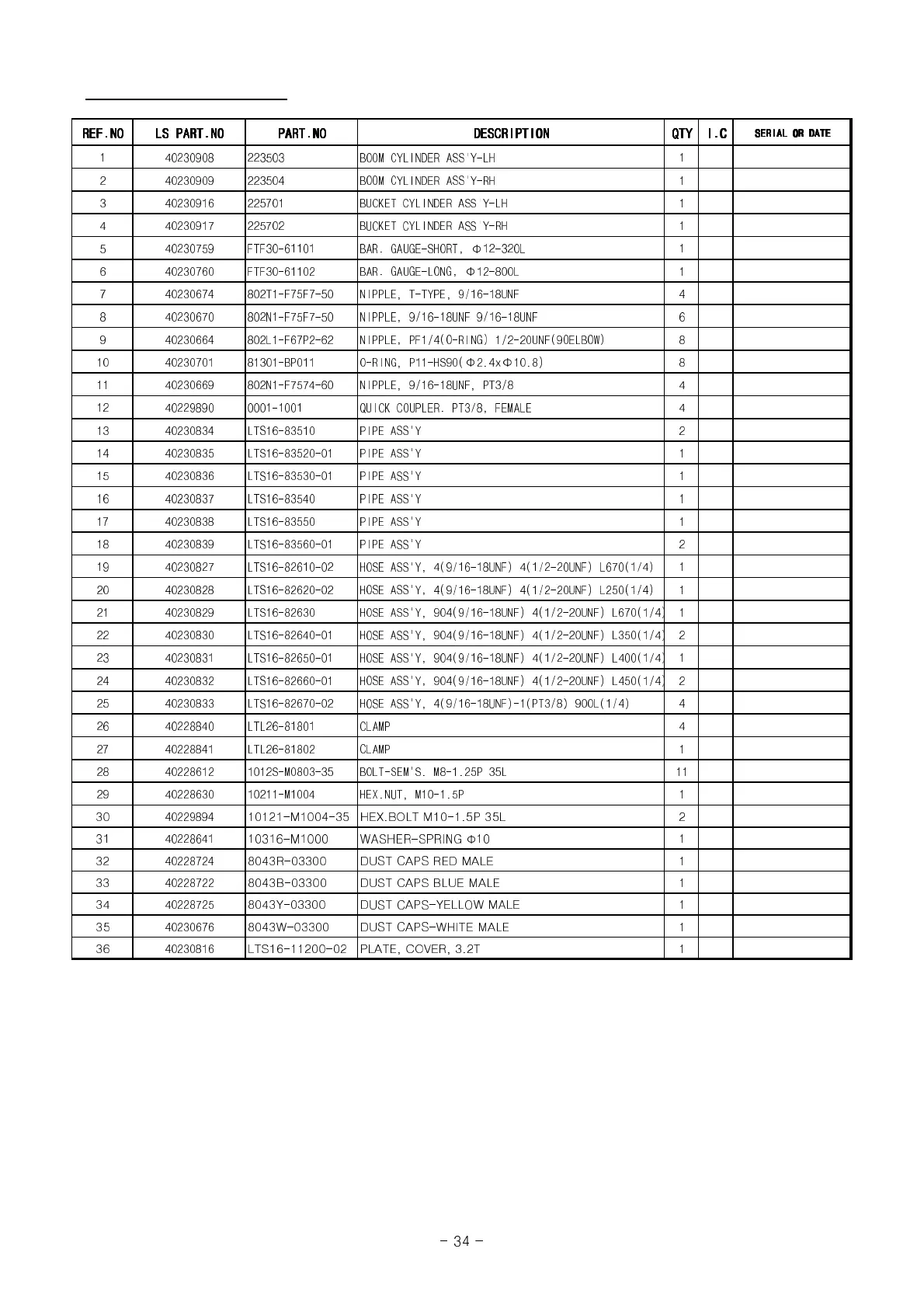

HYDRAULIC PIPING
REF.NO
REF.NOREF.NO
REF.NO LS PART.NO
LS PART.NOLS PART.NO
LS PART.NO PART.NO
PART.NOPART.NO
PART.NO DESCRIPTION
DESCRIPTIONDESCRIPTION
DESCRIPTION QTY
QTYQTY
QTY I.C
I.CI.C
I.C
SERIAL OR DATE
SERIAL OR DATESERIAL OR DATE
SERIAL OR DATE
1 40230908 223503 BOOM CYLINDER ASS'Y-LH 1
2 40230909 223504 BOOM CYLINDER ASS'Y-RH 1
3 40230916 225701 BUCKET CYLINDER ASS'Y-LH 1
4 40230917 225702 BUCKET CYLINDER ASS'Y-RH 1
5 40230759 FTF30-61101 BAR. GAUGE-SHORT, Φ12-320L 1
6 40230760 FTF30-61102 BAR. GAUGE-LONG, Φ12-800L 1
7 40230674 802T1-F75F7-50 NIPPLE, T-TYPE, 9/16-18UNF 4
8 40230670 802N1-F75F7-50 NIPPLE, 9/16-18UNF 9/16-18UNF 6
9 40230664 802L1-F67P2-62 NIPPLE, PF1/4(O-RING) 1/2-20UNF(9OELBOW) 8
10 40230701 81301-BP011 O-RING, P11-HS90(Φ2.4xΦ10.8) 8
11 40230669 802N1-F7574-60 NIPPLE, 9/16-18UNF, PT3/8 4
12 40229890 0001-1001 QUICK COUPLER. PT3/8, FEMALE 4
13 40230834 LTS16-83510 PIPE ASS'Y 2
14 40230835 LTS16-83520-01 PIPE ASS'Y 1
15 40230836 LTS16-83530-01 PIPE ASS'Y 1
16 40230837 LTS16-83540 PIPE ASS'Y 1
17 40230838 LTS16-83550 PIPE ASS'Y 1
18 40230839 LTS16-83560-01 PIPE ASS'Y 2
19 40230827 LTS16-82610-02 HOSE ASS'Y, 4(9/16-18UNF) 4(1/2-20UNF) L670(1/4) 1
20
40230828
LTS16-82620-02
HOSE ASS'Y, 4(9/16-18UNF) 4(1/2-20UNF) L250(1/4)
1
20
40230828
LTS16-82620-02
HOSE ASS'Y, 4(9/16-18UNF) 4(1/2-20UNF) L250(1/4)
1
21 40230829 LTS16-82630
HOSE ASS'Y, 904(9/16-18UNF) 4(1/2-20UNF) L670(1/4)
1
22 40230830 LTS16-82640-01
HOSE ASS'Y, 904(9/16-18UNF) 4(1/2-20UNF) L350(1/4)
2
23 40230831 LTS16-82650-01
HOSE ASS'Y, 904(9/16-18UNF) 4(1/2-20UNF) L400(1/4)
1
24 40230832 LTS16-82660-01
HOSE ASS'Y, 904(9/16-18UNF) 4(1/2-20UNF) L450(1/4)
2
25 40230833 LTS16-82670-02 HOSE ASS'Y, 4(9/16-18UNF)-1(PT3/8) 900L(1/4) 4
26 40228840 LTL26-81801 CLAMP 4
27 40228841 LTL26-81802 CLAMP 1
28 40228612 1012S-M0803-35 BOLT-SEM'S. M8-1.25P 35L 11
29 40228630 10211-M1004 HEX.NUT, M10-1.5P 1
30 40229894 10121-M1004-35 HEX.BOLT M10-1.5P 35L 2
31 40228641 10316-M1000 WASHER-SPRING Φ10 1
32 40228724 8043R-03300 DUST CAPS RED MALE 1
33 40228722 8043B-03300 DUST CAPS BLUE MALE 1
34 40228725 8043Y-03300 DUST CAPS-YELLOW MALE 1
35 40230676 8043W-03300 DUST CAPS-WHITE MALE 1
36 40230816 LTS16-11200-02 PLATE, COVER, 3.2T 1
- 34 -
