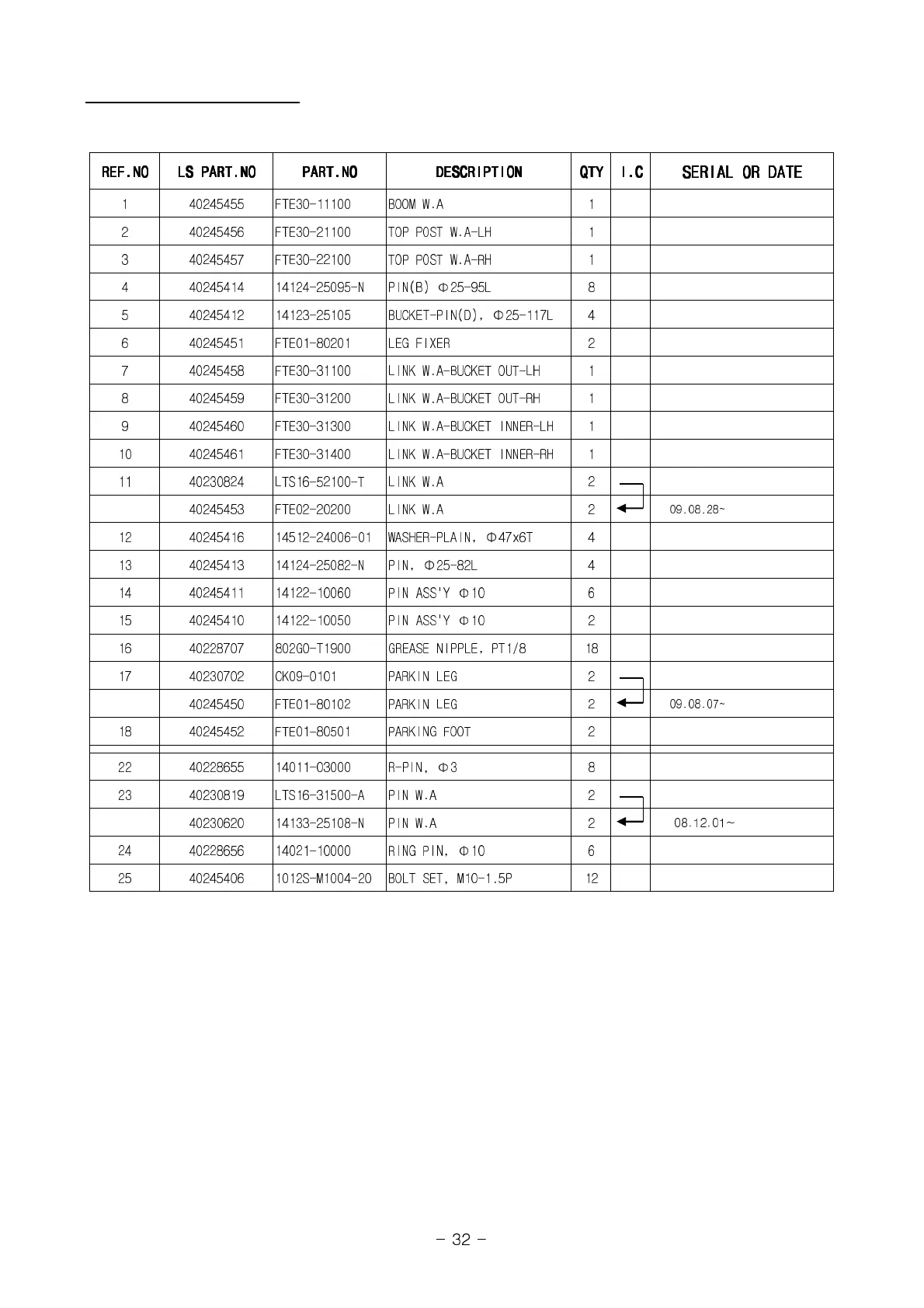

BOOM ASSEMBLY
REF.NO
REF.NOREF.NO
REF.NO LS PART.NO
LS PART.NOLS PART.NO
LS PART.NO PART.NO
PART.NOPART.NO
PART.NO DESCRIPTION
DESCRIPTIONDESCRIPTION
DESCRIPTION QTY
QTYQTY
QTY I.C
I.CI.C
I.C
SERIAL OR DATE
SERIAL OR DATESERIAL OR DATE
SERIAL OR DATE
1 40245455 FTE30-11100 BOOM W.A 1
2 40245456 FTE30-21100 TOP POST W.A-LH 1
3 40245457 FTE30-22100 TOP POST W.A-RH 1
4 40245414 14124-25095-N PIN(B) Φ25-95L 8
5 40245412 14123-25105 BUCKET-PIN(D), Φ25-117L 4
6 40245451 FTE01-80201 LEG FIXER 2
7 40245458 FTE30-31100 LINK W.A-BUCKET OUT-LH 1
8 40245459 FTE30-31200 LINK W.A-BUCKET OUT-RH 1
9 40245460 FTE30-31300 LINK W.A-BUCKET INNER-LH 1
10 40245461 FTE30-31400 LINK W.A-BUCKET INNER-RH 1
11 40230824 LTS16-52100-T LINK W.A 2
40245453 FTE02-20200 LINK W.A 2
09.08.28~
12 40245416 14512-24006-01 WASHER-PLAIN, Φ47x6T 4
13 40245413 14124-25082-N PIN, Φ25-82L 4
15 40245410 14122-10050 PIN ASS'Y Φ10 2
16 40228707 802G0-T1900 GREASE NIPPLE, PT1/8 18
17 40230702 CK09-0101 PARKIN LEG 2
40245450 FTE01-80102 PARKIN LEG 2
09.08.07~
18 40245452 FTE01-80501 PARKING FOOT 2
22 40228655 14011-03000 R-PIN, Φ3 8
23 40230819 LTS16-31500-A PIN W.A 2
40230620 14133-25108-N PIN W.A 2
08.12.01~
24 40228656 14021-10000 RING PIN, Φ10 6
25 40245406 1012S-M1004-20 BOLT SET, M10-1.5P 12
