HYDRAULIC CONNECTING -
DUKIN VALVE
REF.NO
REF.NOREF.NO
REF.NO LS PART.NO
LS PART.NOLS PART.NO
LS PART.NO PART.NO
PART.NOPART.NO
PART.NO DESCRIPTION
DESCRIPTIONDESCRIPTION
DESCRIPTION QTY
QTYQTY
QTY I.C
I.CI.C
I.C SERIAL OR DATE
SERIAL OR DATESERIAL OR DATE
SERIAL OR DATE

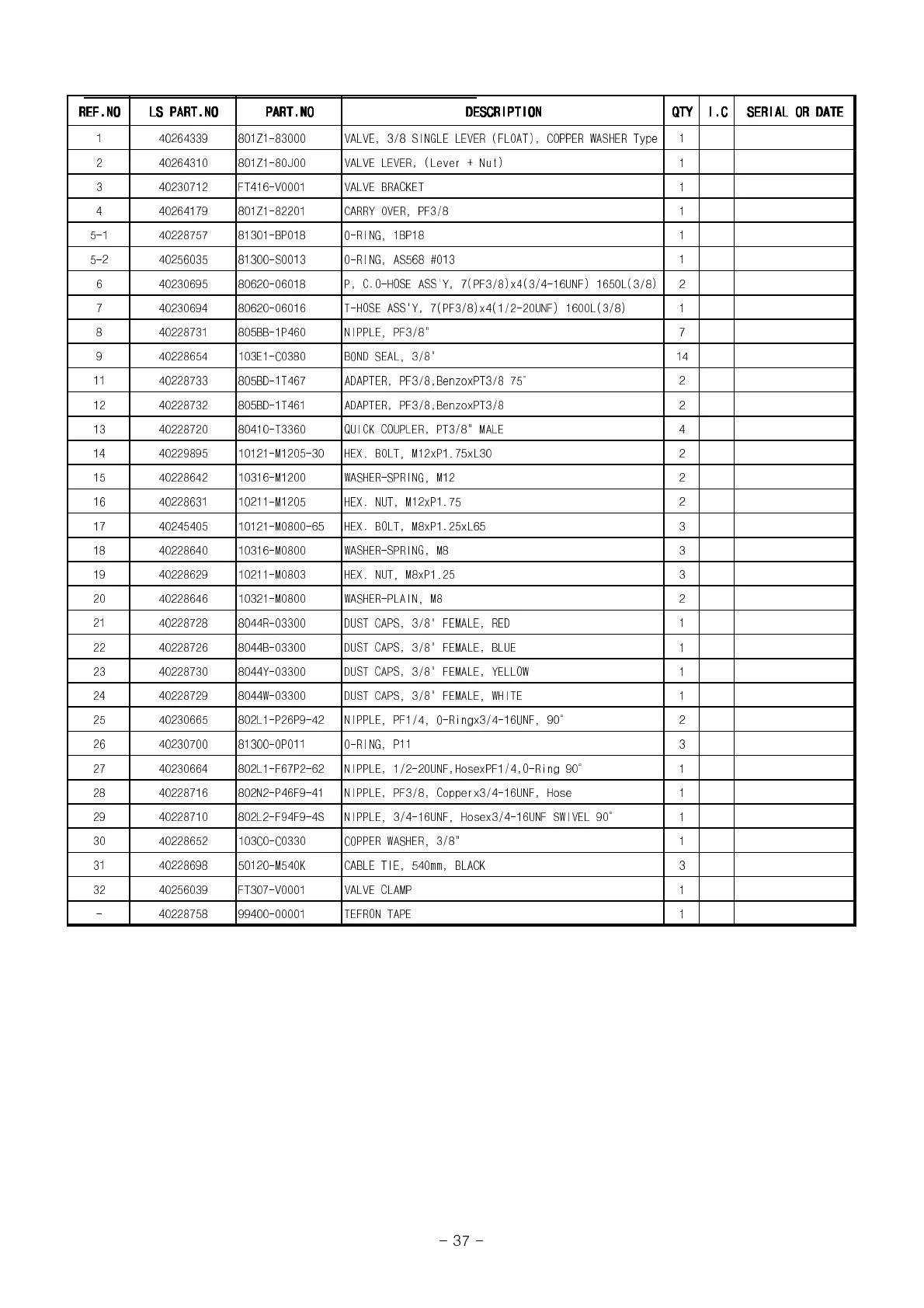

1 40264339 801Z1-83000 VALVE, 3/8 SINGLE LEVER (FLOAT), COPPER WASHER Type 1
2 40264310 801Z1-80J00 VALVE LEVER, (Lever + Nut) 1
3 40230712 FT416-V0001 VALVE BRACKET 1
4 40264179 801Z1-82201 CARRY OVER, PF3/8 1
5-1 40228757 81301-BP018 O-RING, 1BP18 1
5-2 40256035 81300-S0013 O-RING, AS568 #013 1
6 40230695 80620-06018 P, C.O-HOSE ASS'Y, 7(PF3/8)x4(3/4-16UNF) 1650L(3/8) 2
7 40230694 80620-06016 T-HOSE ASS'Y, 7(PF3/8)x4(1/2-20UNF) 1600L(3/8) 1
8 40228731 805BB-1P460 NIPPLE, PF3/8" 7
9 40228654 103E1-C0380 BOND SEAL, 3/8" 14
11 40228733 805BD-1T467 ADAPTER, PF3/8,BenzoxPT3/8 75° 2
12 40228732 805BD-1T461 ADAPTER, PF3/8,BenzoxPT3/8 2
13 40228720 80410-T3360 QUICK COUPLER, PT3/8" MALE 4
14 40229895 10121-M1205-30 HEX. BOLT, M12xP1.75xL30 2
15 40228642 10316-M1200 WASHER-SPRING, M12 2
16 40228631 10211-M1205 HEX. NUT, M12xP1.75 2
17 40245405 10121-M0800-65 HEX. BOLT, M8xP1.25xL65 3
18 40228640 10316-M0800 WASHER-SPRING, M8 3
19 40228629 10211-M0803 HEX. NUT, M8xP1.25 3
20 40228646 10321-M0800 WASHER-PLAIN, M8 2
21 40228728 8044R-03300 DUST CAPS, 3/8" FEMALE, RED 1
22 40228726 8044B-03300 DUST CAPS, 3/8" FEMALE, BLUE 1
23 40228730 8044Y-03300 DUST CAPS, 3/8" FEMALE, YELLOW 1
24 40228729 8044W-03300 DUST CAPS, 3/8" FEMALE, WHITE 1
25 40230665 802L1-P26P9-42 NIPPLE, PF1/4, O-Ringx3/4-16UNF, 90° 2
26 40230700 81300-0P011 O-RING, P11 3
27 40230664 802L1-F67P2-62 NIPPLE, 1/2-20UNF,HosexPF1/4,O-Ring 90° 1
28 40228716 802N2-P46F9-41 NIPPLE, PF3/8, Copperx3/4-16UNF, Hose 1
29 40228710 802L2-F94F9-4S NIPPLE, 3/4-16UNF, Hosex3/4-16UNF SWIVEL 90° 1
30 40228652 103C0-C0330 COPPER WASHER, 3/8" 1
31 40228698 50120-M540K CABLE TIE, 540mm, BLACK 3
32 40256039 FT307-V0001 VALVE CLAMP 1
- 40228758 99400-00001 TEFRON TAPE 1
- 37 -
