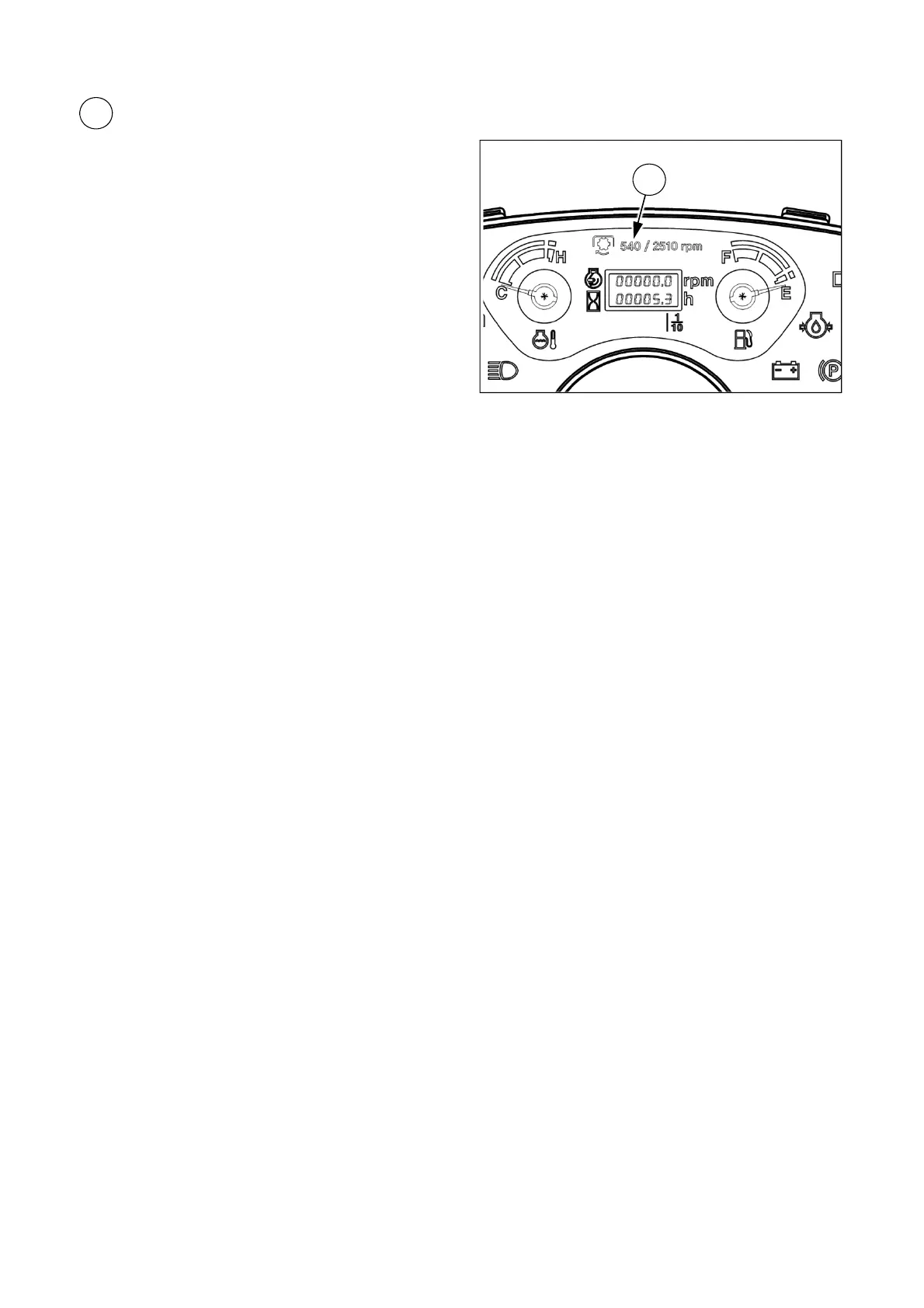

PTO speed indicator
 It determined by the engine speed indicated on
the tachometer. The tachometer reading of 2430
RPM indicates 540 RPM rear PTO speed.
 If the tachometer registers higher than 2430
RPM for rear PTO operation, reduce the engine
speed when this dangerous over speed
conditions exists. For middle PTO operation, see
chapter 4-5-(2) in this manual.
