Gearbox management
Detach from the tractor before servicing.
You may be killed or injured by a malfunction of the tractor.
NOTE>
Oil
rade : ISO VG22
(SAE80W90)

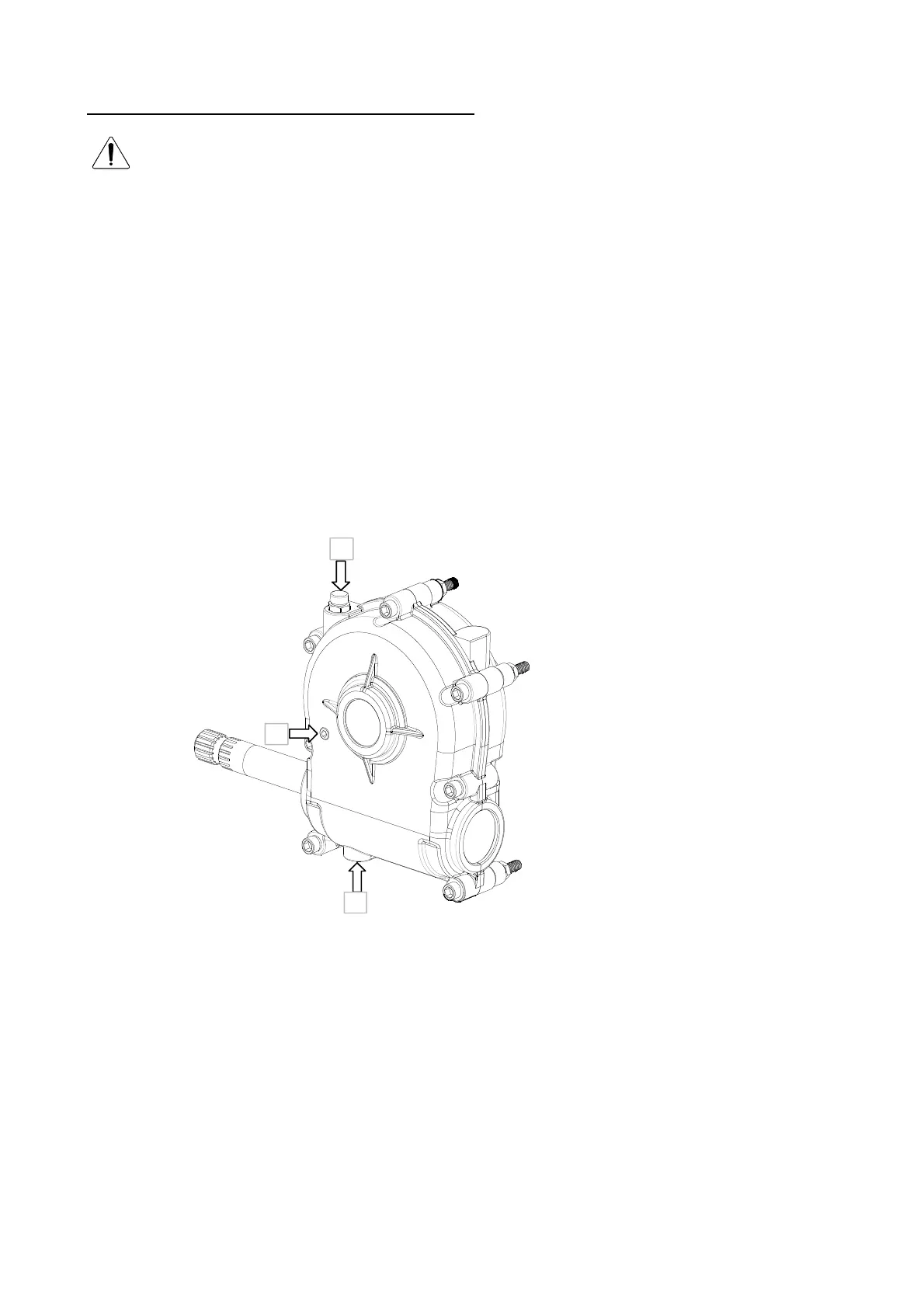

Install and tighten fill plug & overflow plug (No. 1 & No.3).
Fix the broom on a flat surface and start working.
Remove the Air Breather Plug(No.1) and drain plug(No.2) .
Allow all the fluid to drain into an appropriate container.
Install and tighten drain plug(No.2)
Add 17 oz (0.5 L) Oil through the fill port (No 1).
Fluid such as engine oil, hydraulic fluid, coolants, grease, etc.
must be disposed of in an environmentally safe manner.
Some regulations require that certain spills and leaks on the ground must be cleaned in a
specific manner.
See local, state and federal regulations for the correct disposal.
Remove the overflow plug.(No.3)
Stop oil filling when oil is spilled by overflow (No.3)
WARNING
AVOID BURNS
The gearbox is hot immediately after operation.
Let gearbox cool or use gloves when servicing.
Replace the gearbox oil after the first 50 hours and every 200 hours or one year thereafter.
1
2
3
