How to replace the brush
Remove the No. ② collar and adjust the height.
If excessive load is applied to the brush due to incorrect tension or incorrect
height, the brush may be damaged or human injury may occur.
Adjust the spring tension by loosening or tightening the No. ① nut.
WARNING
Detach from the tractor before servicing.
You may be killed or injured by a malfunction of the tractor.

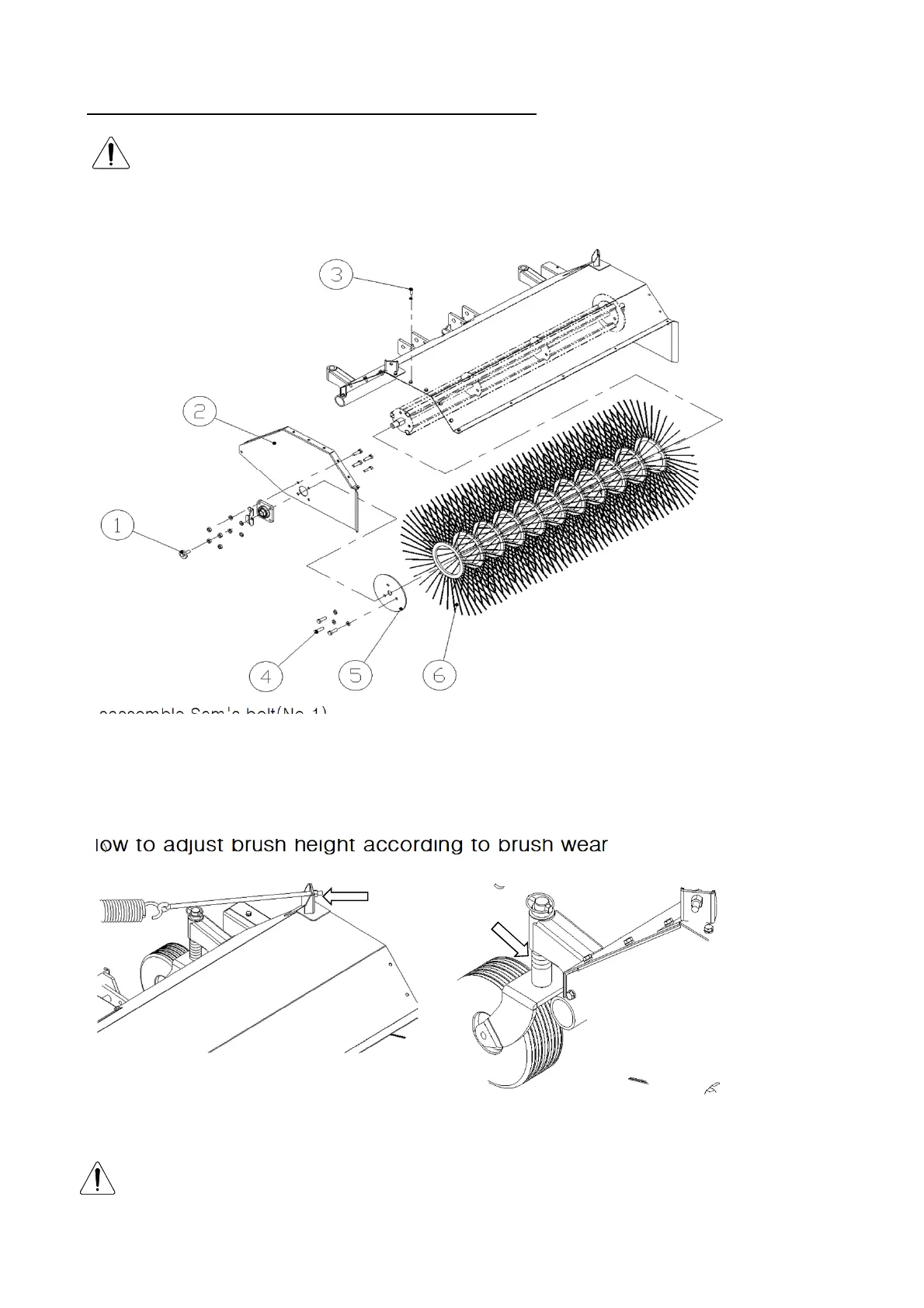

Disassemble Sem's bolt(No.1)
How to adjust brush height according to brush wear
To disassemble Side cover(No.2) , remove hex. nut(No. 3).
To disassemble Plate(No.5) , remove hex. bolt(No. 4).
Replace the old brush(No.6) with a new one.
Assembly is performed in the reverse order of disassembly.
①
②
