4 -28
1) Loosen the locking nut on both sides.
2) Connect the front hook of the tractor to the crane
by using specified wire. And, lift up the front axle
off the ground sufficiently.
3) Lift up one side of the front axle fully and turn the
steering wheel to the left and right with checking
that the clearances between tire and other parts
are over 20mm (0.8in.) at least.
4) At this time, set each steering stopper of the both
sides to be contacted with the cast. Check all the
possible interferences by combinations of the
steering and oscillation of the front axle.
5) Tighten the locking nuts of the each side.

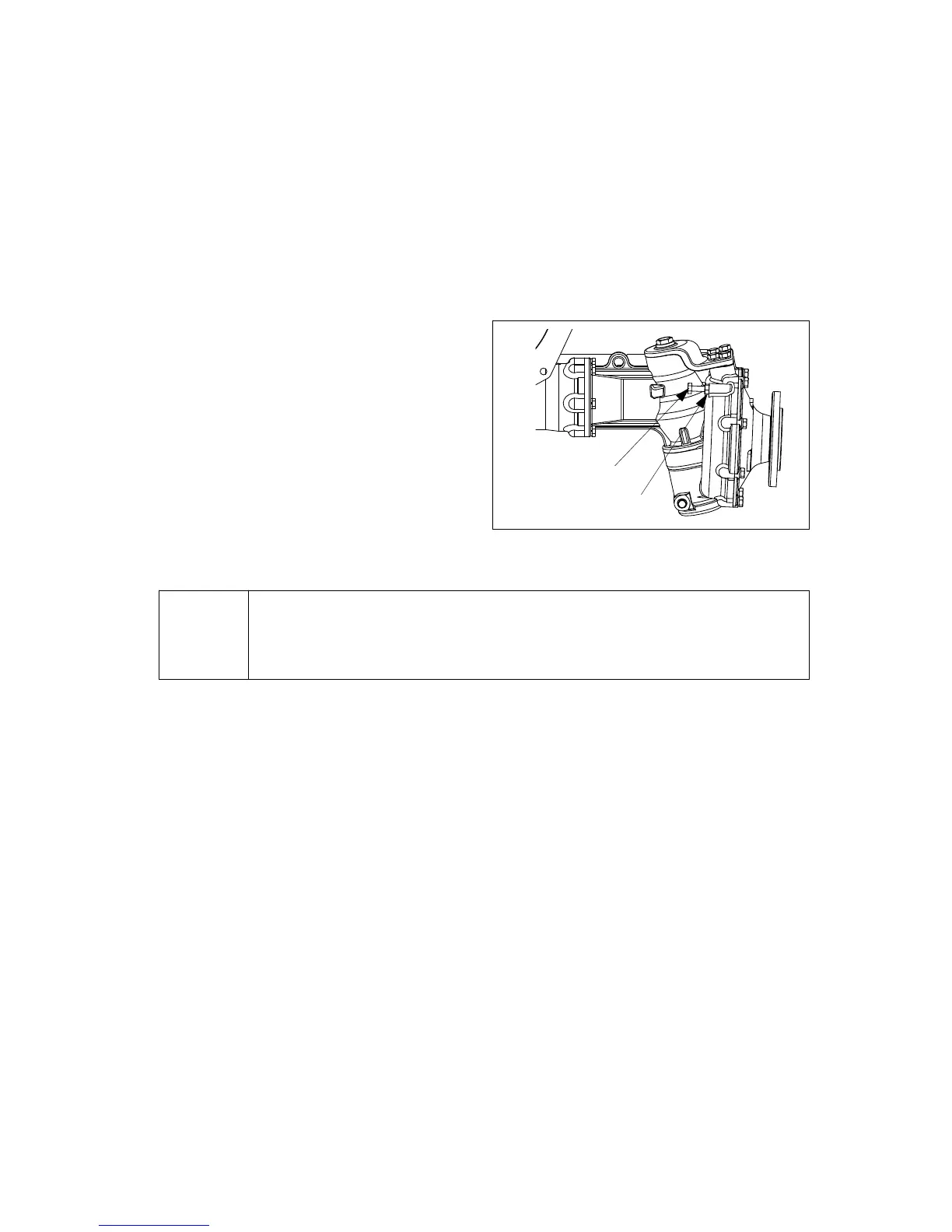

(9) Adjusting Steering angle
① 4WD models
z If the front wheel track is altered or front tires are replaced with bigger ones than current
specifications, or in case that a front equipment is attached, the steering angle must be checked and/
or adjusted as required.
Steering stopper
Locking nut
▶DO NOT shorten the length of the steering stopper rather than factory condition.
If the stopper does not contact at maximum steering condition, it can damage the
steering cylinder or tie-rod.
Notice
