(5) Replacing Air cleaner element
(Dry type)
z

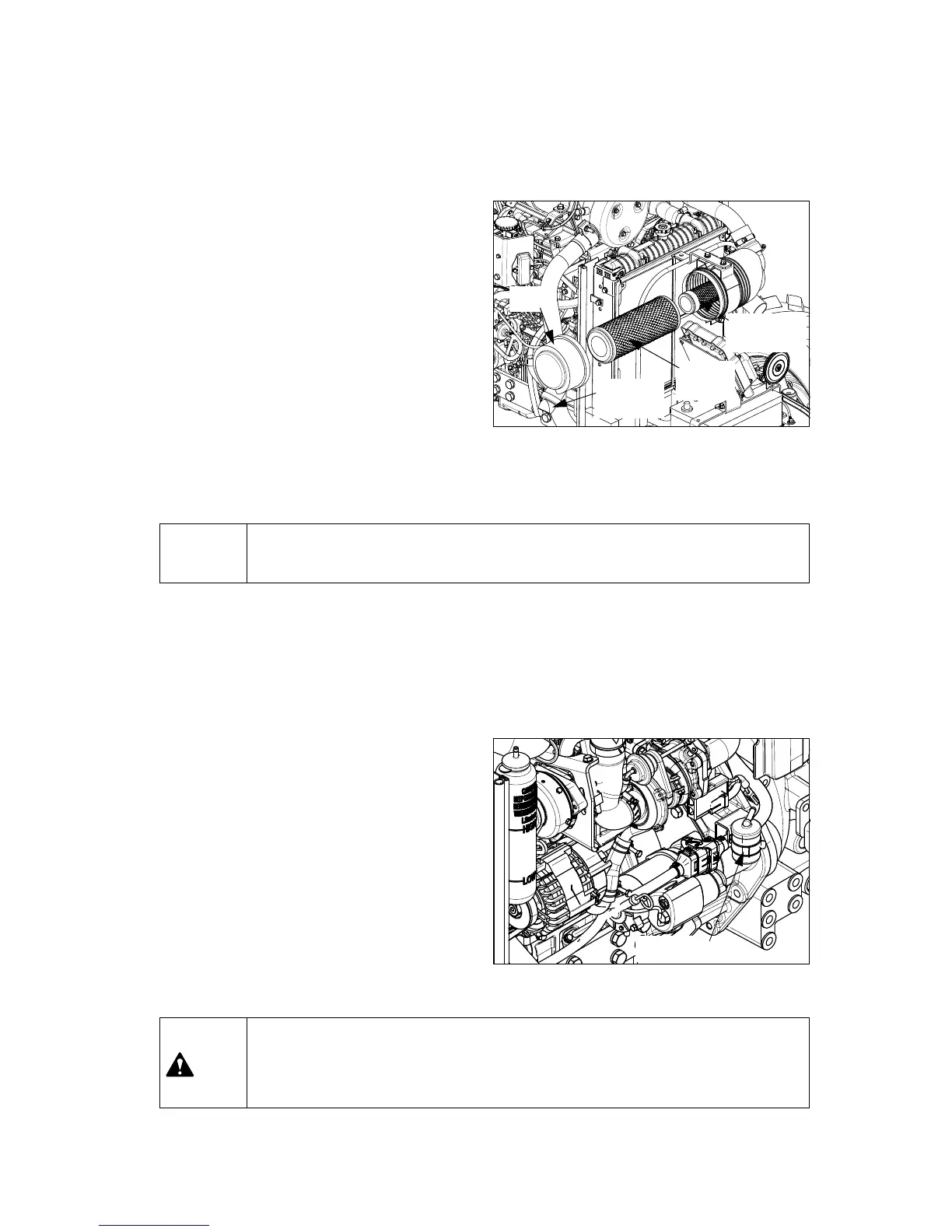

Remove the cover and pull the primary element
straight out, ensuring the safety filter element
remains in place.
z
Clean the inside of the air cleaner housing using
a clean damp cloth, taking care not to damage
the safety element.
z
Check if there is damage inside filter element by
using a light. If finding tiny crack or small holes
in the filter element or the gasket is damaged,
change it with a new one.
z
Insert the filter element by pushing it deeply into the filter housing.
z
Remove the dust of the evacuator valve and clean the inside of the cover.
z
Assemble the cover with the evacuator valve placed downward.
▶
Do not start the engine or close the hood if the filter element is not assembled..
Notice
5-10. Every 300 hour check
(1) Replacing fuel pre-filter
▶
Gathered fuel in the container has to be disposed in suitable manner.
▶
In extreme dusty/dirty environments, it is recommended to replace fuel pre-filter
every 200 hours.
z
Set a container under the fuel pre-filter.
z
Loosen the hose clamps connected to inlet/outlet
of the fuel pre-filter.
z
Replace fuel pre-filter with a new one and
tighten the hose clamps.
Caution
Cover
Primary
element
Evacuator
valve
Safety filter
element
Fuel pre-filter
