LS tractor XG3037H - 7-Pole Connector (Optional)

4 -20
(4) 7-Pole connector (optional)
z The one of the standard 7-pole trailer connectors is provided and is mounted at the rear of the tractor.
The connections of the 7-pole connector (viewed from the rear of the tractor) are as follows;
z ASAE Version
Pin No. Function
1 Ground (Earth)
2 Working light
3 Left turn signal light
4 Brake light
5 Right turn signal light
6 License number plate light
7 Auxiliary

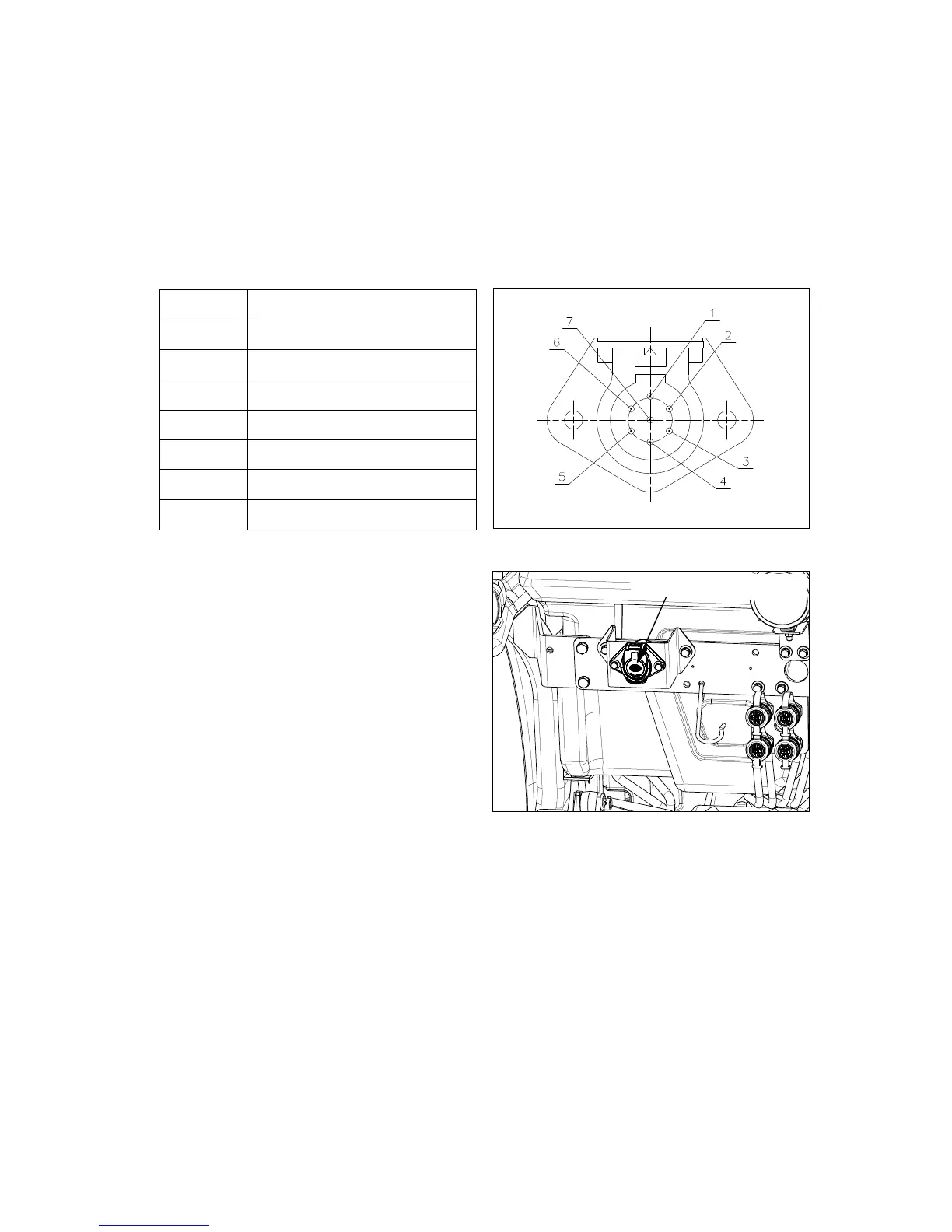

7-Pole Connector (ASAE)
