Remote control lever
(if fitted)
(3) Hydraulic lift Control (Mechanical Hydraulic Lift, MHL)
z The hydraulic lift system is operated by the position control and draft control lever.

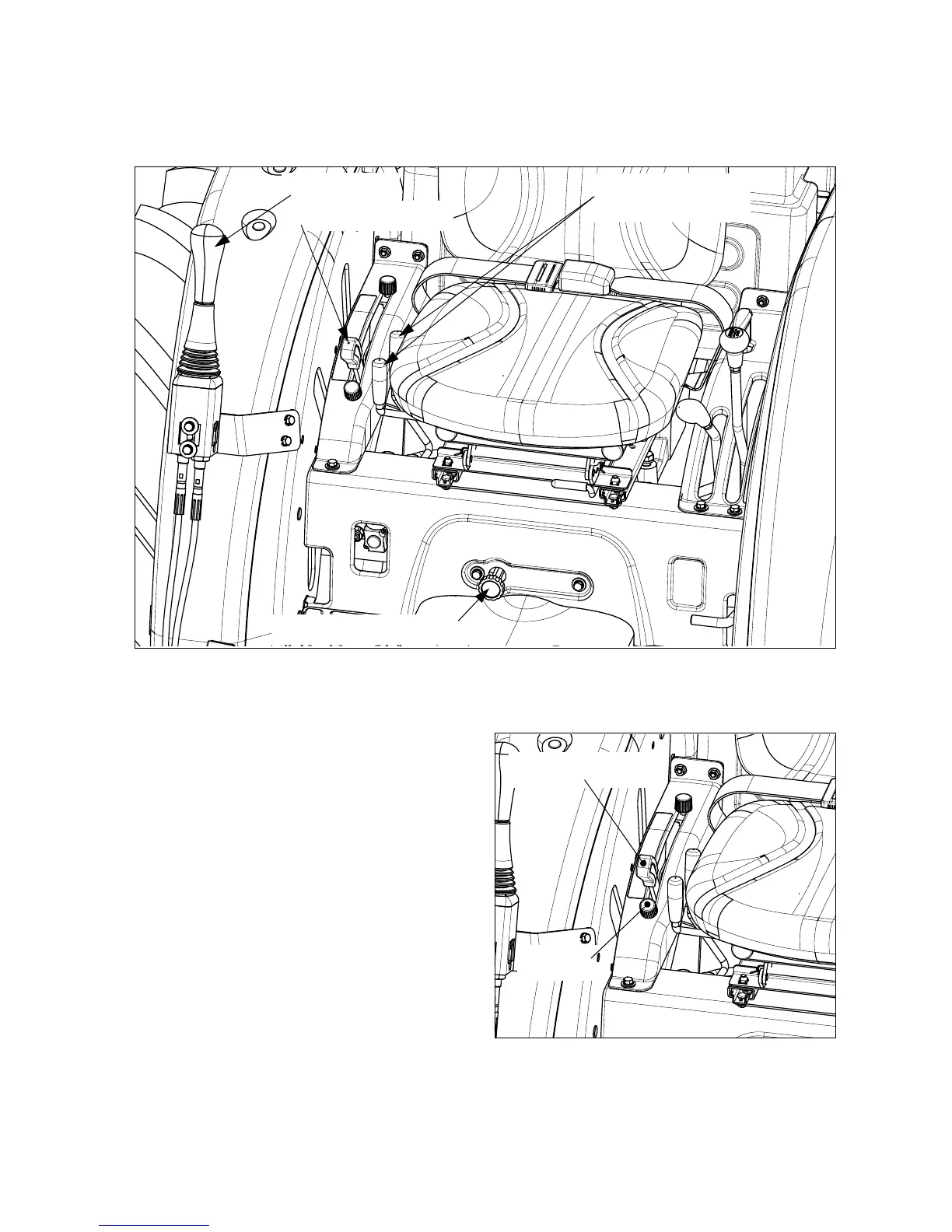

Position control lever
Joystick lever
Down speed control lever
① Position control
z This mode sets the position of implements freely
by position control lever operation. Generally,
this mode is used for tiller, fertilizer distributor,
mower, rake etc. In this case, operate the lever
as follows.
1.Push position control lever forward and the
implement lets down by its own weight.
2.If the position control lever is on random position,
the implement stops at the height corresponding
to the lever position.
3.To keep the height of implement in a desired
range, restrict the lever to the lowest point with
stopper A.
Position control lever
Stopper A
