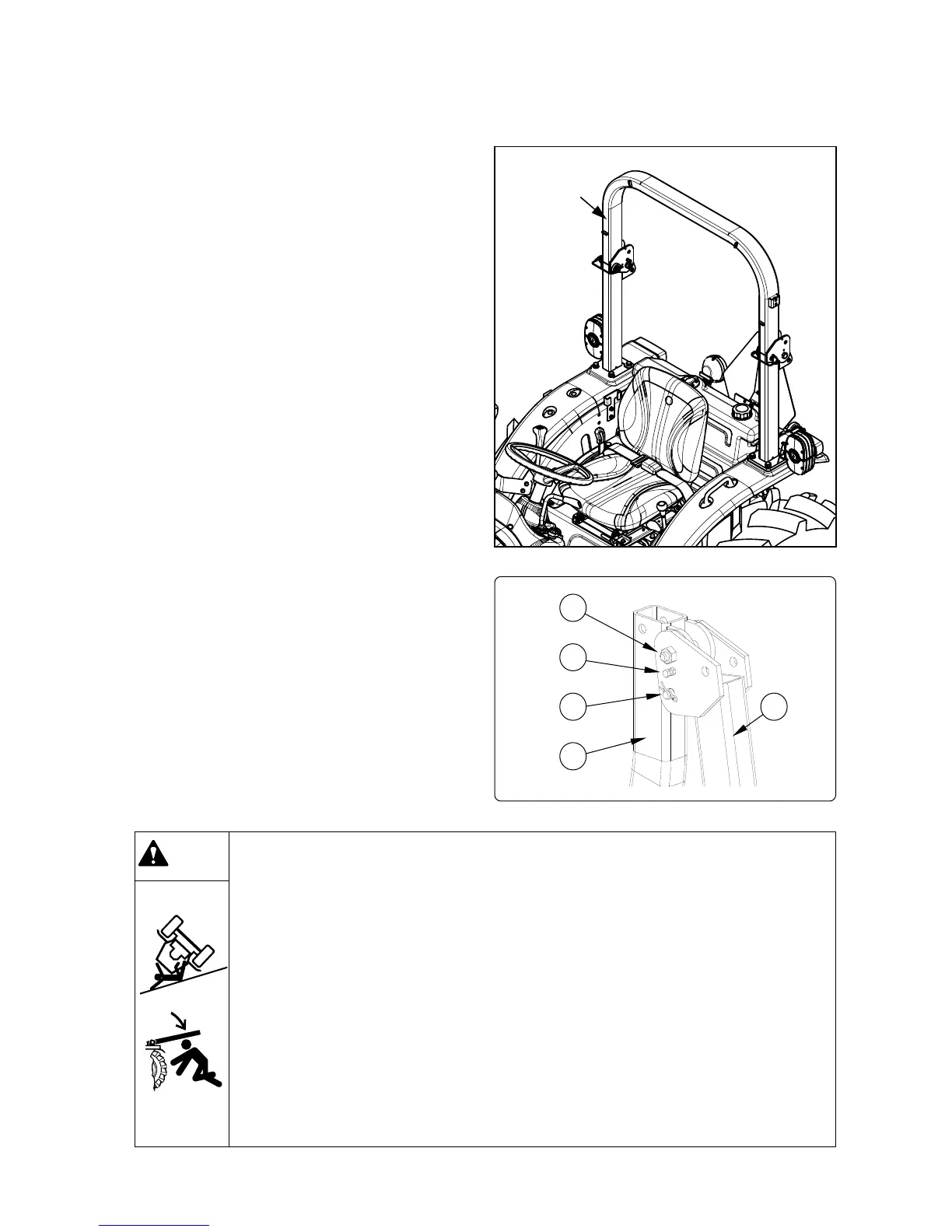

z How to fold the Safety frame.
1. Loosen the safety frame bolts②④and nuts
(both sides) loosely. (Do not unfasten it
completely)
2. Remove the pins③ on the both side and fold the
safety frame backward.
- Be careful of the possibility that your head, hand
and shoulder might be hurt by sudden folding
result from the weight of the safety frame.
3. Set the holes of the frame ① and ⑤ in line, and
put the pins③ into the hole to fix the safety
frame and apply the snap pin.
4. Fasten the bolts②④and nuts (both sides)
tightly.
z When standing the safety frame up, follow the
same procedure.
2
4
3
5
1
Warning
▶ Do not modify or remove safety frame arbitrarily for safety.
▶ Unless the safety frame is applied correctly, it may cause a serious accident on
tractor when being overturned.
- Be sure to stand the safety frame up completely and tighten the bolts, pins and
nuts correctly.
▶ In case of folding the safety frame.
- Do cooperate with more than 2 people when folding or standing up the safety
frame as it’s heavy.
- Be careful not to be injured by sudden folding, which might occur when folding or
standing up the safety frame, results from its weight.
- Do not wear seatbelt when the safety frame is folded down.
- Do stand the safety frame up again as soon as the work is finished.
② Safety frame (Foldable Roll-bar)
Safety frame
(Roll-bar)
z DO NOT remove the safety frame arbitrary. This
structure will reduce the risk of serious injury or
death.
z DO NOT modify or repair the safety frame. The
welding, bending, drilling, grinding, or cutting of
any part of the safety frame, it can weaken the
structure.
z If the safety frame is loosened or removed for any
reason, make sure that all parts reinstalled
correctly before operating the tractor.
