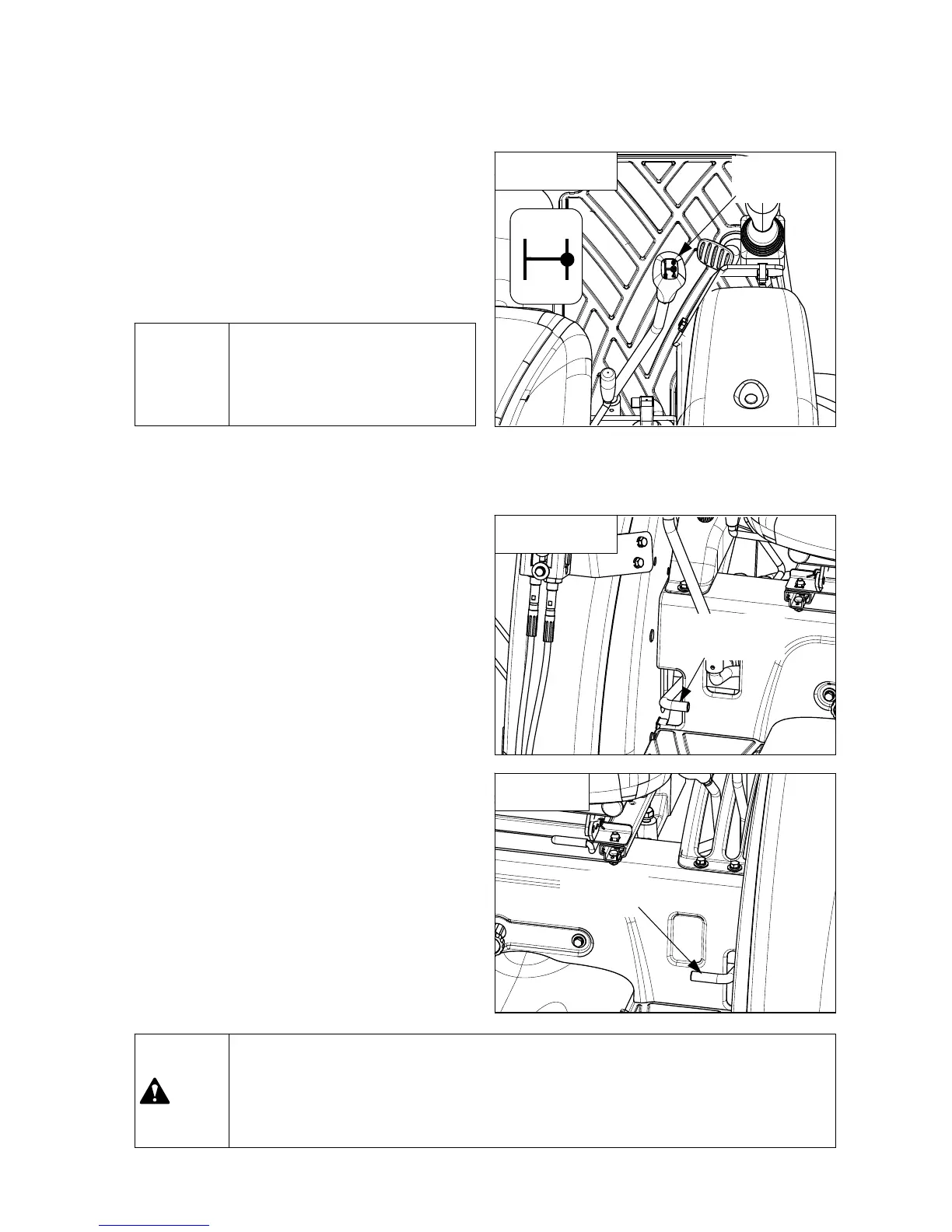

(1) Main gear shift lever
(Mechanical)
z Four speed gear shift is available.
z Main gear shift lever can be shifted with just
depressing clutch pedal without stopping tractor.
Notice
▶Operate main gear shift lever
by correct H pattern. If operated
diagonally, it may cause a
failure.
Main gear
shift lever
4
2
31
Differential
lock pedal
(2) Differential lock pedal
z When the rear wheel is slipping and the tractor
can not move forward, stop the tractor
temporarily and press the differential lock pedal.
z Differential lock is effective for working on
slippery ground.
z If engaged, both rear wheels will rotate at equal
speed. So, It disturbs steering operation and you
cannot turn.
z Take your foot off the pedal to release the
differential lock. If the traction is equalized, the
lock is released automatically.
z If the differential lock does not disengaged (i.e.
the turning radius is larger than normal and the
turning is not smooth), depress the clutch pedal
and/or press left/right one-side brake pedal
slightly for a second each other.
z This pedal is installed on the step floor, but the
location is ;
- the right-hand side for mechanical model
- the left-hand side for HST model.
Mechanical
Differential
lock pedal
HST
▶Do not turn the tractor with pressing the differential lock pedal.
▶Do not use this differential lock pedal while driving on public road.
▶Do not engage differential lock when one wheel is spinning.
Warning
Mechanical
