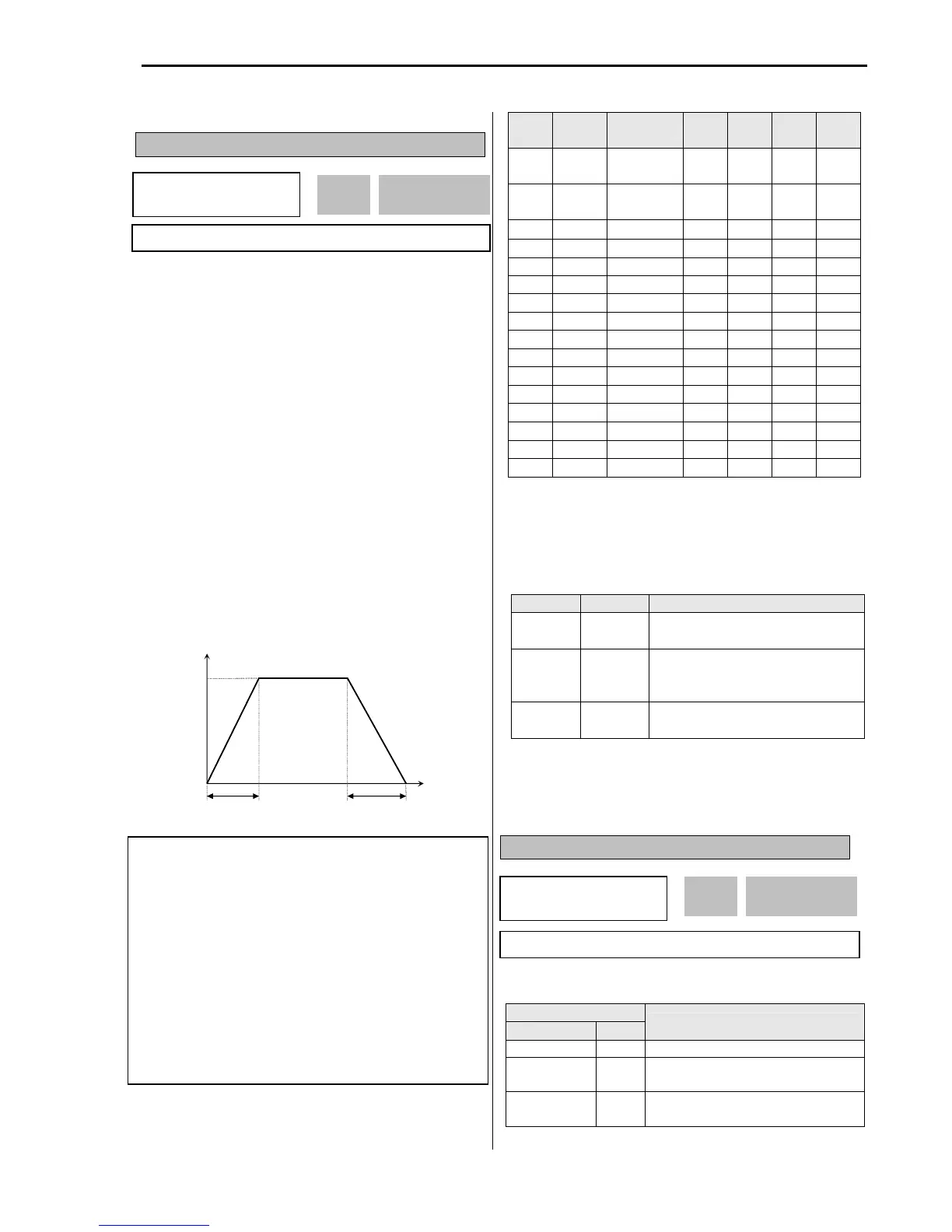

DRV-02: Deceleration Time
The inverter targets the FU2-70 when accelerating or
decelerating. When the FU2-70 is set to “Maximum
Frequency”, the acceleration time is the time taken by
the motor to reach FU1-20 from 0 Hz. The deceleration
time is the time taken by the motor to reach 0 Hz from
FU1-20 [Maximum Frequency].
When the FU2-70 is set to ‘Delta Frequency’, the
acceleration and deceleration time is the time taken to
reach a targeted frequency (instead the maximum
frequency) from a frequency.
The acceleration and deceleration time can be changed
to a preset transient time via multi-function inputs. By
setting the multi-function inputs (P1, P2, P3) to ‘XCEL-L’,
‘XCEL-M’, ‘XCEL-H’ respectively, the Accel and Decel
time set in I/O-25 to I/O-38 are applied according to the
binary inputs of the P1, P2, P3.
☞ Note: I/O-12 to I/O-14: Sets the terminal function of P1,
P2, P3 terminal inputs.
Code
LCD
display
Description
XCEL-
H
XCEL-
M
XCEL-
L
Factory
setting
DRV-
01
Acc time
Acc time 0 0 0 0 10 sec
DRV-
02
Dec time
Dec time 0
0 0 0 20 sec
I/O-25
ACC-1
Acc time 1 0 0 1 20 sec
I/O-26
DEC-1
Dec time 1
0 0 1 20 sec
I/O-27
ACC-2
Acc time 2 0 1 0 30 sec
I/O-28
DEC-2
Dec time 2
0 1 0 30 sec
I/O-29
ACC-3
Acc time 3 0 1 1 40 sec
I/O-30
DEC-3
Dec time 3
0 1 1 40 sec
I/O-31
ACC-4
Acc time 4 1 0 0 50 sec
I/O-32
DEC-4
Dec time 4
1 0 0 50 sec
I/O-33
ACC-5
Acc time 5 1 0 1 40 sec
I/O-34
DEC-5
Dec time 5
1 0 1 40 sec
I/O-35
ACC-6
Acc time 6 1 1 0 30 sec
I/O-36
DEC-6
Dec time 6
1 1 0 30 sec
I/O-37
ACC-7
Acc time 7 1 1 1 20 sec
I/O-38
DEC-7
Dec time 7
1 1 1 20 sec
FU2-71 [Accel/Decel time scale]
l Set the Accel / Decel time unit.
Setting Unit Description
0 0.01 sec
Minimum 0 sec settable
Maximum 60 sec settable
1 0.1 sec
Minimum 0 sec settable
Maximum 600 sec settable
(Factory setting)
2 1 sec
Minimum 0 sec settable
Maximum 6000 sec settable*
* Up to 6000 sec setting is available via LE-200 keypad.
DRV-03: Drive Mode (Run/Stop Method)
Select the source of run/stop command.
Setting Range
LCD 7-Seg
Description
Keypad
0
Run/Stop is controlled by Keypad.
Fx/Rx-1
1
Control Terminals FX, RX and 5G
control Run/Stop. (Method 1)
Fx/Rx-2
2
Control Terminals FX, RX and 5G
control Run/Stop. (Method 2)
DRV ► Dec. time
02 30.0 sec
30.0
02
Factory Default: 30.0 sec 30.0
Related Functions:
FU1
-
20 [Max freq]
FU2-70 [Reference freq. for Accel/Decel]
FU2-71 [Accel/Decel time scale]
I/O-12 to I/O-14 [Multi-function input
terminal P1, P2, P3]
I/O-25 to I/O-38 [Acc/Dec time for step
frequency]
n FU2-
70: Selects the frequency to be targeted for acceleration
and deceleration. [Max Freq, Delta Freq]
n FU2-71: Selects the time scale. [0.01, 0.2, 1]
n I/O-12 to I/O-14: Sets the terminal function of P1, P2, P3
terminal inputs.
n I/O-25 to I/O-38: Presets the Accel/Decel time activated via
multifunction inputs (P1, P2, P3)
Output Frequency
Max. Freq.
Time
Acc. time
Dec. time
DRV ► Drive mode
03 Keypad
1
03
Factory Default: Fx/Rx-1 1
