Chapter 6 - Parameter Description [DRV]
83
[Freq Mode: ‘V1’]
[Freq Mode: ‘I’]
[Freq Mode: V1+’I’]
DRV-05 ~ DRV-07: Step Frequency 1 ~ 3
The inverter outputs preset frequencies set in these
codes according to the multi-function terminals
configured as ‘Speed-L’, ‘Speed-M’ and ‘Speed-H’. The
output frequencies are decided by the binary
combination of P1, P2, P3 configured in I/O-12 to I/O-17.
Refer to the following table for the preset frequency
outputs.
Binary Combination of
P1, P2, P3
Speed-L
Speed-M
Speed-H
Output
Frequency
Step Speed
0 0 0 DRV-00 Speed 0
1 0 0 DRV-05 Speed 1
0 1 0 DRV-06 Speed 2
1 1 0 DRV-07 Speed 3

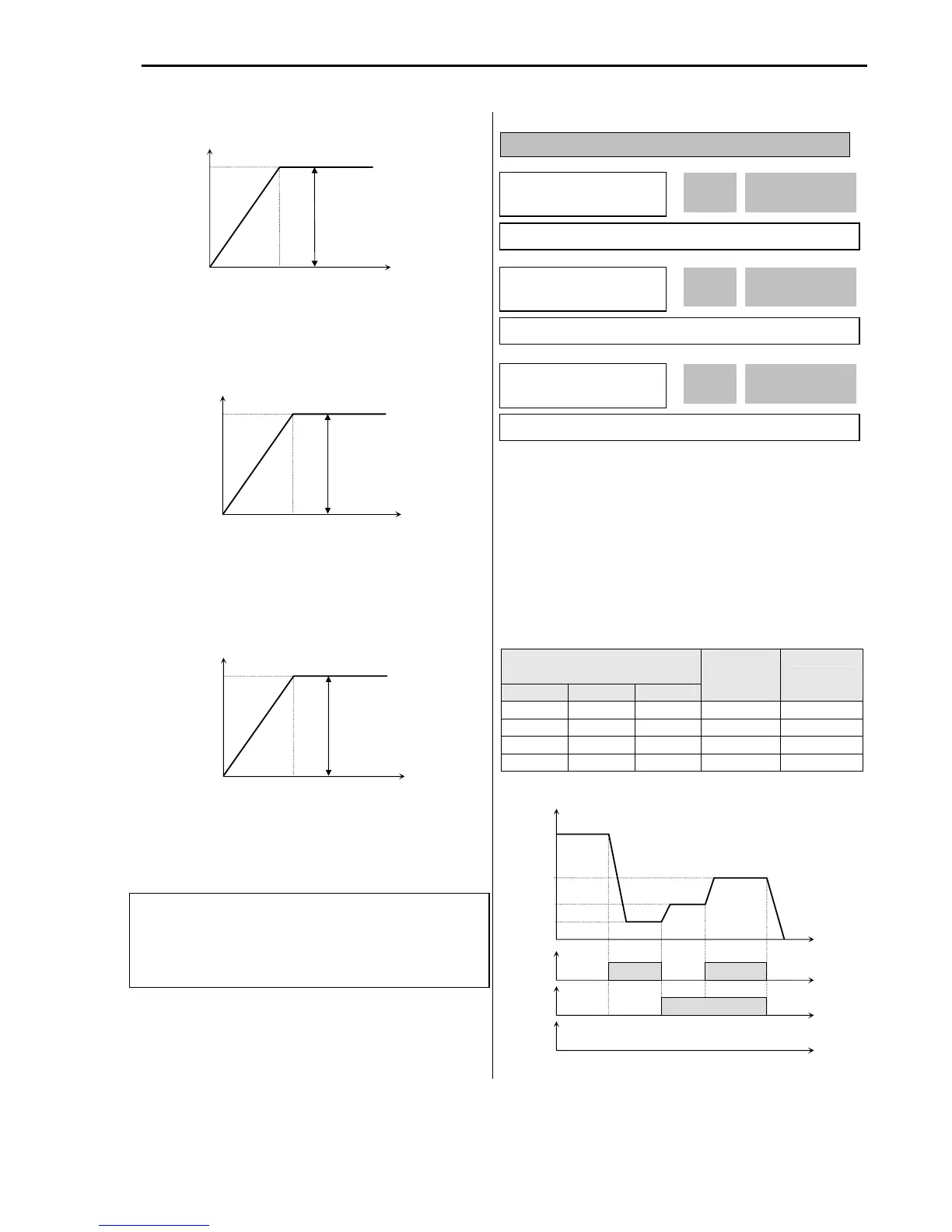

[Step Frequency Output]
Output Frequency
Analog Signal
Input (V1)
Freq. max
0V
10V
Reference Freq. Range
Output Frequency
Freq. Max
4mA
20mA
Reference Freq. Range
Analog Signal
Input (I)
Output Frequency
Freq. Max
0V+4mA
Reference Freq. Range
10V+20mA
Analog Signal
Input (‘V1+I’)
DRV ► Step freq-1
05 10.00 Hz
10.00
05
Factory Default: 10.00 Hz 10.00
DRV ► Step freq-2
06 20.00 Hz
20.00
06
Factory Default: 20.00 Hz 20.00
DRV ► Step freq-3
07 30.00 Hz
30.00
07
Factory Default: 30.00 Hz 30.00
P1-CM
ON
Output Frequency
Time
Time
P2-CM
ON
Time
P3-CM
Time
ON
Speed 3
Speed 0
Speed 2
Speed 1
Related functions
:
DRV
-
0
0
[Digital Command Frequency or
Command Torque]
FU2~39 [Control Mode Selection]
I/O-01~10 [Analog Voltage/Current input
signal adjustment]
