LSI SAS 9206-16e PCI Express to 6Gb/s SAS HBA User Guide
October 2014
LSI SAS 9206-16e HBA Characteristics
5.4 Physical Characteristics
The LSI SAS 9206-16e HBA is a 6.6-in. x 2.7-in., low-profile board. The component height on the top and bottom of the
LSI SAS 9206-16e HBA is in accordance with the PCIe specification. The following figure shows the board layout.

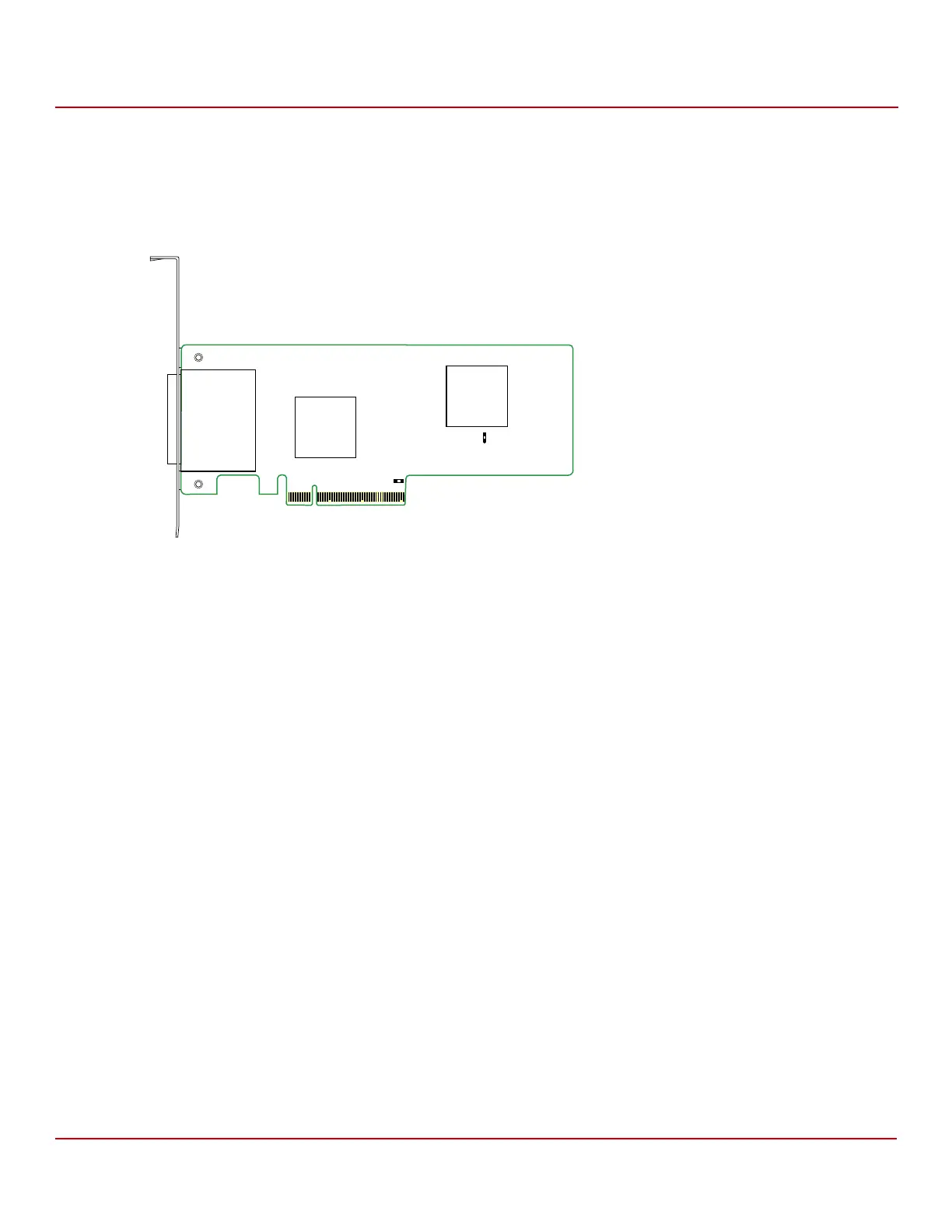

Figure 1 LSI SAS 9206-16e HBA Board Layout
J2B1: PCIe x8-lane board edge connector
J1A2: SFF-8644 mini-SAS HD, external connectors
CR4B1 and CR5B1: Heartbeat LEDs
5.5 Power Requirements
The maximum power requirements for the LSI SAS 9206-16e HBA under normal operation are as follows:
PCIe 3.3 V = 0.83 A
PCIe 12.0 V = 1.92 A
Passive cable, nominal = 25.8 W
5.6 Thermal and Atmospheric Limits
The atmospheric limits for the LSI SAS 9206-16e HBA are as follows:
Temperature range: 0 °C to 55 °C (32 °F to 131 °F) (dry bulb)
Relative humidity range: 5 percent to 90 percent noncondensing
Maximum dew point temperature: 32 °C (89.6 °F)
Minimum airflow:
— 100 linear feet per minute at 35 °C (95 °F) bay inlet temperature
— 150 linear feet per minute at 45 °C (113 °F) bay inlet temperature
— 200 linear feet per minute at 55 °C (131 °F) bay inlet temperature
NOTE LSI developed airflow limits in a flow tube with ideal airflow. Your
server model might require different limits.
*"
?
