2-10 MegaRAID SAS Hardware Installation
Copyright © 2009 by LSI Corporation. All rights reserved.
Step 2. Plug the HDD connector on the other end of the internal cable
into the connector on the SAS drive or the SATA II drive.
Step 3. If you have another drive, connect it to another plug on the
internal cable.
You can connect other devices if the cable has more
connectors.

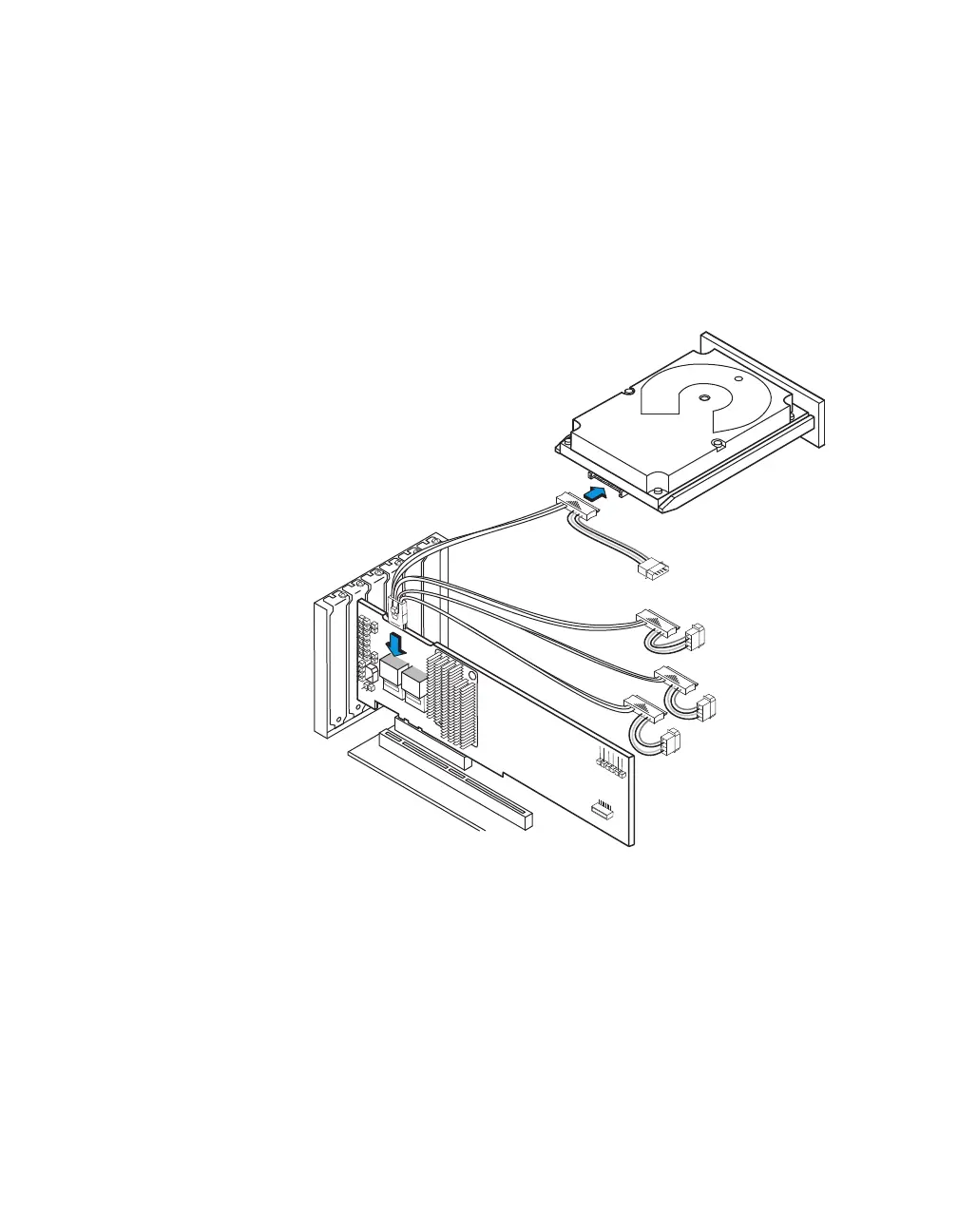

Figure 2.5 Connecting the SAS 9260-8i RAID Controller to a Drive
2.5.2 Connecting the SAS RAID Controller with External Connectors to
a Drive Enclosure
This section provides step-by-step instructions for connecting a SAS
RAID controller with external SAS port connectors to a drive enclosure
containing SAS drives, SATA II drives, or a combination of both drive
types.
HDD
Connector
Power
Connector
85039-06
