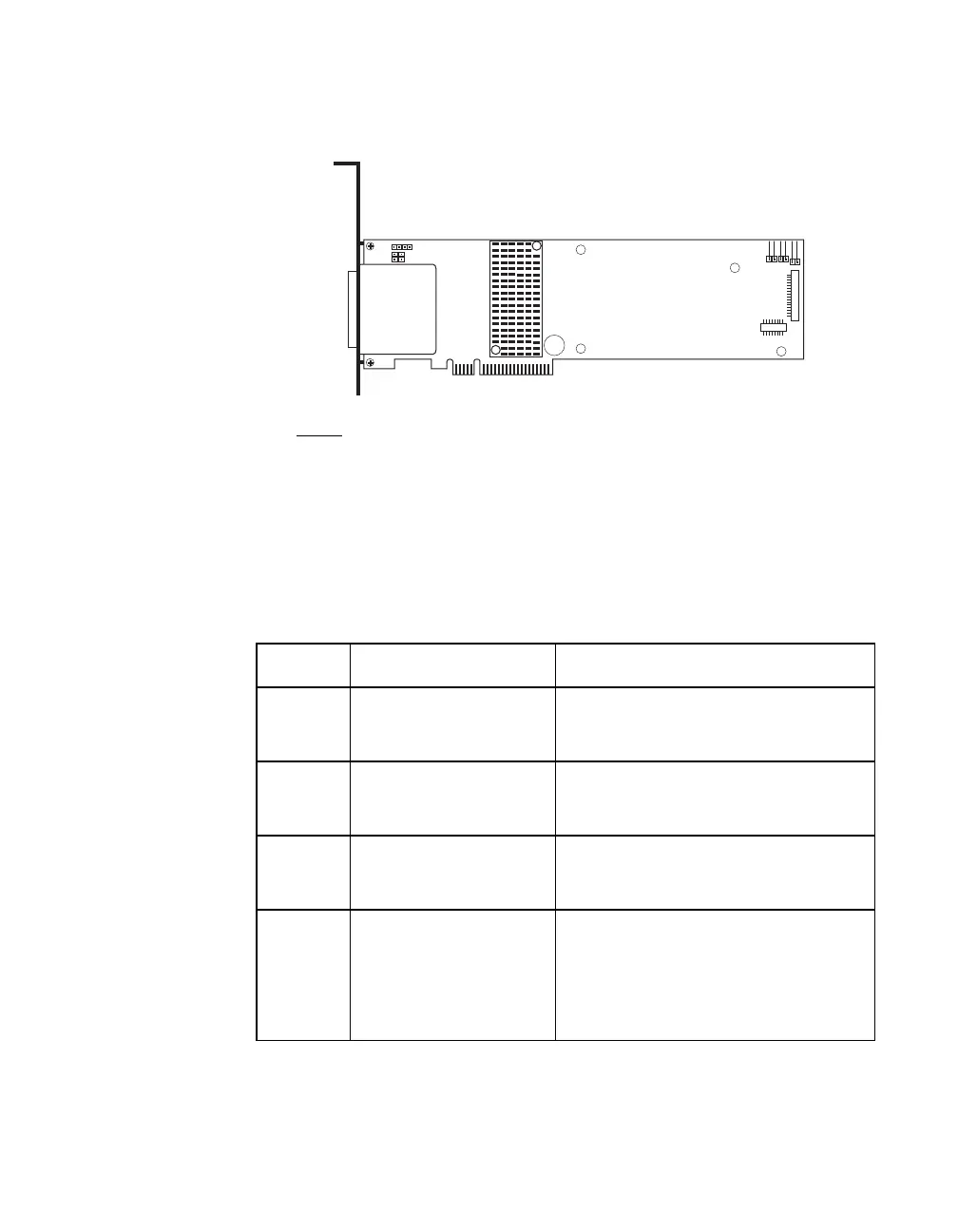

Figure 3.4 Card Layout for the MegaRAID SAS 9280-8e RAID
Controller
Note:
Connectors J6A1, J6A2, and J6A3 are behind the
LSIiBBU07 when the iBBU is installed, but they are still
accessible.
Tabl e 3 . 4 describes the jumpers and connectors on the SAS 9280-8e
RAID controller.
Table 3.4 SAS 9280-8e and SAS 9280DE-8e RAID Controllers –
Connectors
Connector Description Comments
J1A1 Universal Asynchronous
Receiver/Transmitter
(UART) debugging
4-pin connector
Reserved for LSI use.
J1A2 Test header 2-pin connector
Reserved for LSI use.
J1A3 Set Factory Defaults
connector
2-pin connector
Reserved for LSI use.
J1A4 x4 SAS Ports 4–7 SFF-8088 x4 external mini SAS
connector
Connects the cables from the controller
to SAS drives or SATA II drives, or a SAS
expander.
85040-00
J6B2
J6A1
J1A2
J1A1
J1A4
J1B1
J6B1
J1A3
Port
0-3
Port
4-7
J6A2
J6A3
