10-2

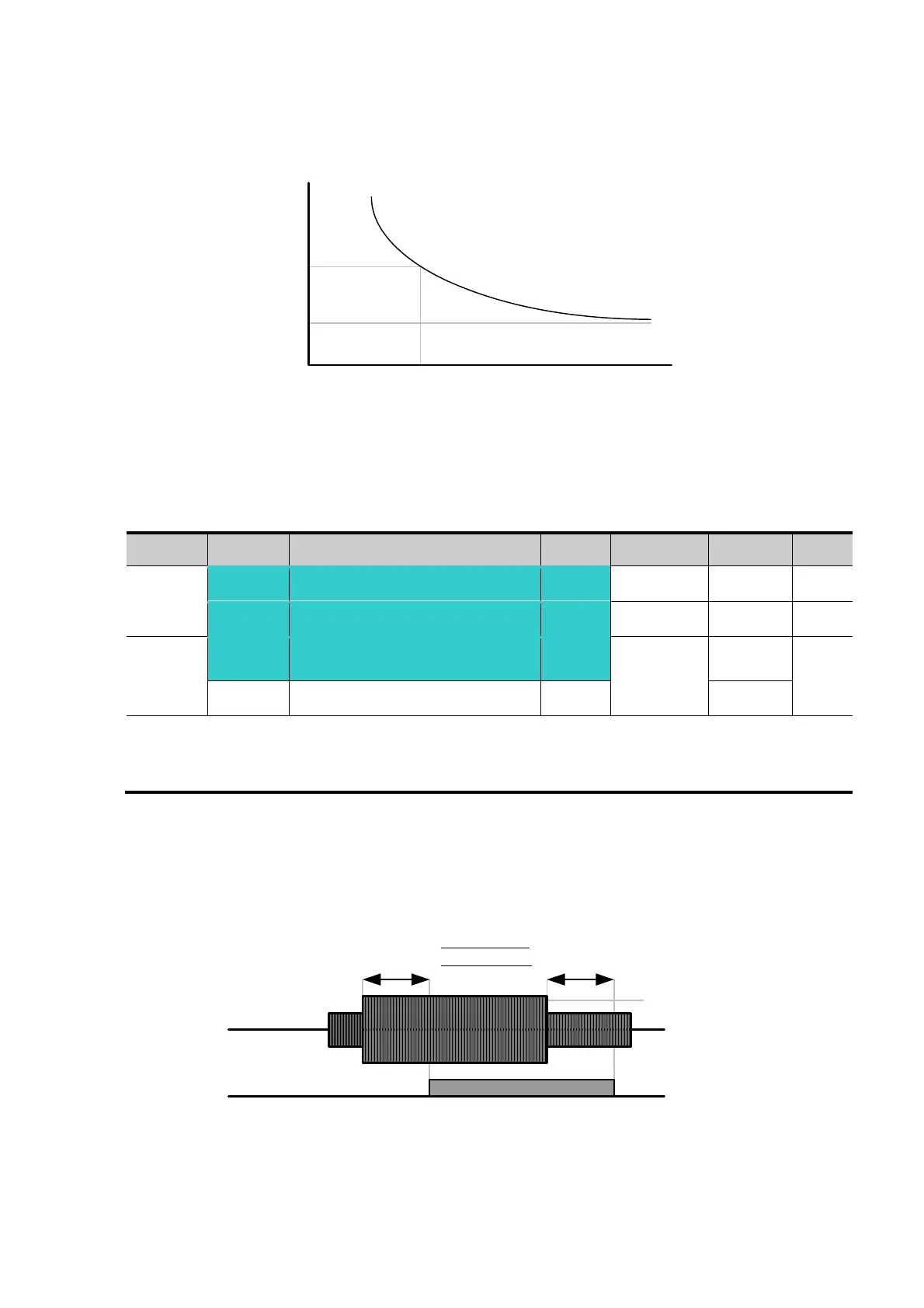

10.2 Overload Warning and trip
z Overload warning
Group Code Parameter Set Range Initial Unit
Function
group 1
F54 [Overload warning level] -
30 ~ 150 150 %
F55 [Overload warning time] -
0 ~ 30 10 Sec
I/O
group
I54
[Multi-function output
terminal select]
5
0 ~ 19
12
I55 [Multi-function relay select] 5 17
Select one output terminal for this function between MO and 3ABC.
If selecting MO as output terminal, set I54 to 5 {Overload: OL}
F54: Set the value as a percent of motor rated current.
Current [%]
F51
F52
60 ETH trip time [sec]
Current
Multi-function
output
F54
t : Overload
warning time
tt
