Digital Video Recorder User Manual
42
Step1: enter into system configurationÆalarm configurationÆsensorÆbasic; refer to Fig 4-19:

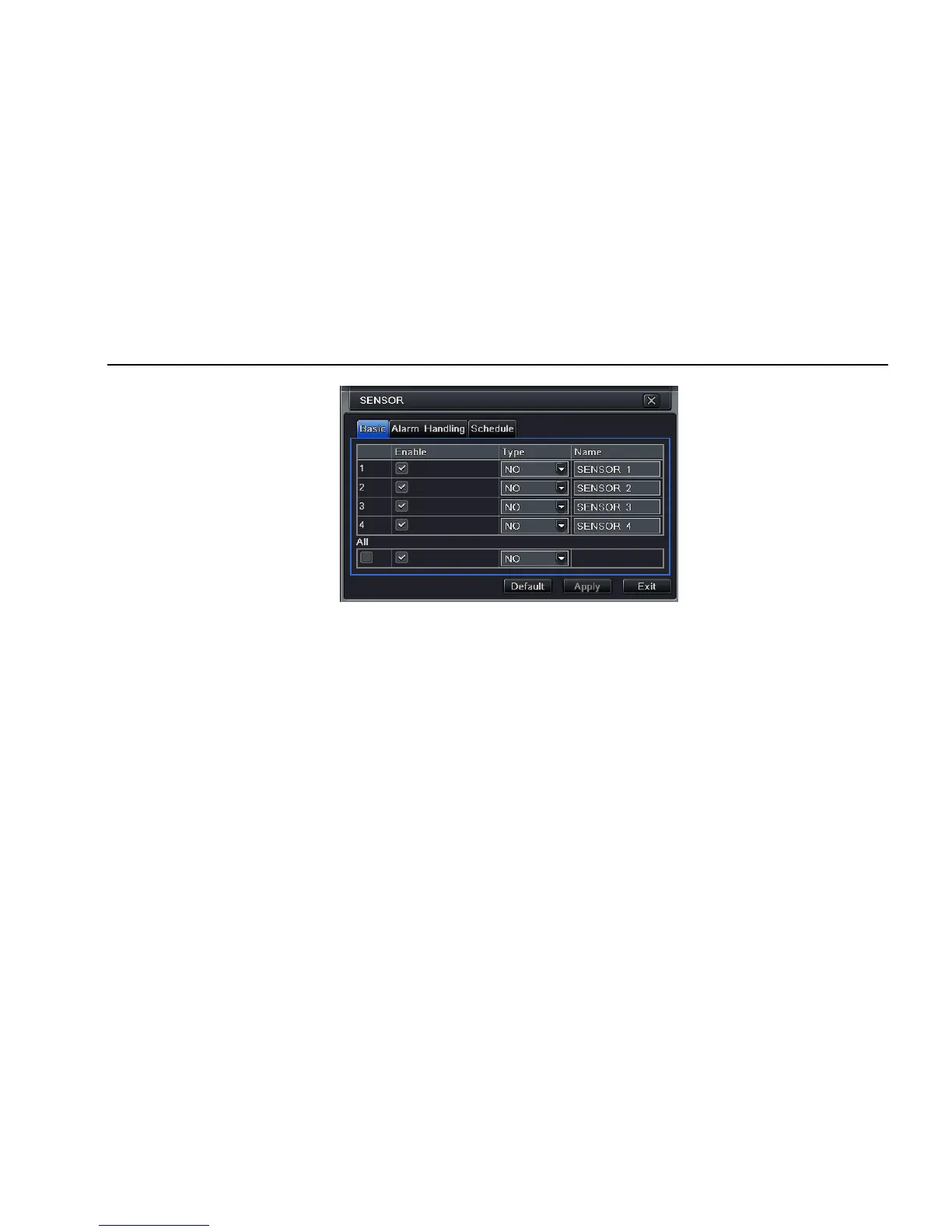

Fig 4-19 alarm configuration-sensor-basic
Step2: enable sensor alarm, set the alarm type according to triggered alarm type. Two option: NO and NC.
Step3: user can setup all channels with same parameters, tick off “all”, then to do relevant setup.
Step4: click “default” button to resort default setting; click “apply” button to save the setting; click “exit” button to exit current interface.
② Alarm handling
Step1: enter into system configurationÆalarm configurationÆsensorÆalarm handling; refer to Fig 4-20:
