Digital Video Recorder User Manual
65
Step2: click Search button, the searched event information will displayed in the event list box, user can select date, channel, tick off Motion,
Sensor or All accordingly.
Step3: double check a certain record file to playback.
Note: when the monitor resolution is VGA800*600, the event search interface will appear a hide button, click this button, the whole
interface can be expanded.
5.3 File manager
Step1: enter into Search configurationÆfile manager; refer to Fig 5-3:

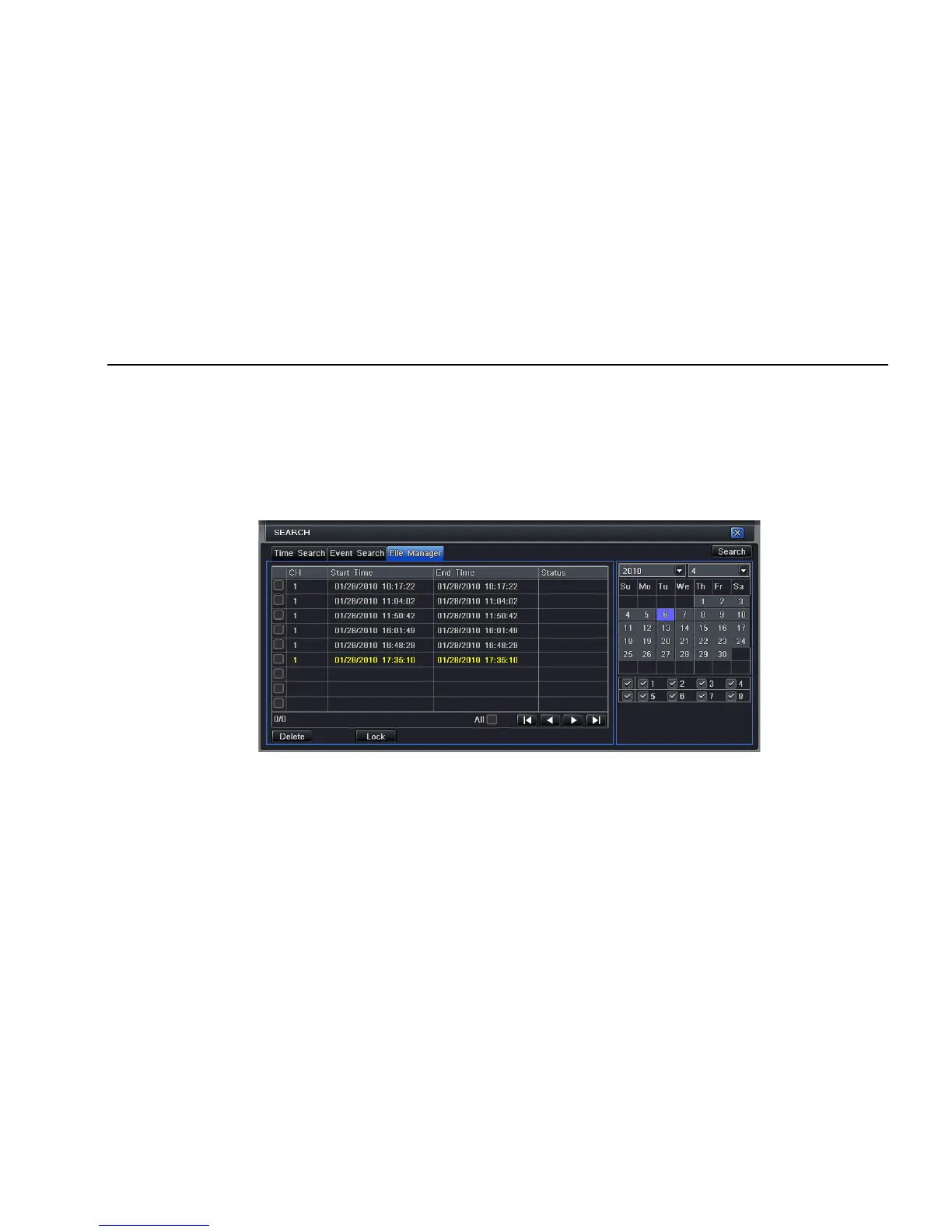

Fig 5-3 Search configuration-file manager
Step2: click Search button, the searched files will be displayed in the file list box, user can select date, channels accordingly.
① Lock: checked a file, click Lock button to lock this file, after that, that file will not be deleted or covered.
② Unlock: checked a locked file, click Lock button to unlock this file
③ Delete: checked an unlocked file, click Delete button to delete this file.
