Configuration
User Interface Guide
- 15 -
Configuration

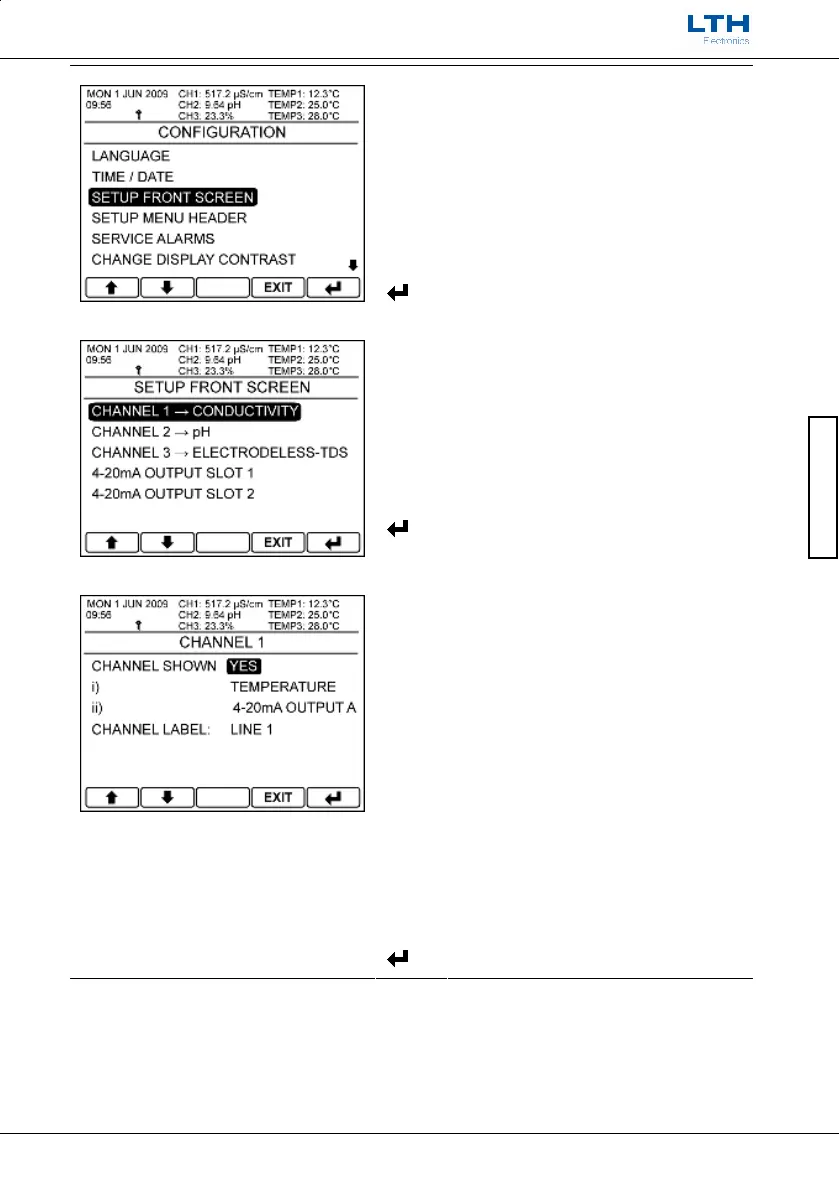

Setup Front Screen
This allows the user to customise the information the
front screen displays
/ – Select Option
EXIT
– Return to Main Menu
– Enter Option
Select Front Screen Channel
Select which front screen channel you wish to edit
/ – Select Option
EXIT
– Return to Configuration Menu
– Enter Option
Channel Setup
Channel shown – Select whether the channel is
shown or not.
i), ii) – Define which is displayed in the either of the
two secondary reading slots. Available options
depend on the selected input card type but
include temperature, sensor current, pressure and
any associated current output values.
Channel Label – Enter the channel identification
label to be shown on the front screen. (Maximum 7
characters.)
/ – Select Option
EXIT
– Return to Configuration Menu
– Enter Option
To Next Page
