Channel Calibration
- 22 -
MXD70 Electrodeless Conductivity
Setup and Operating Guide

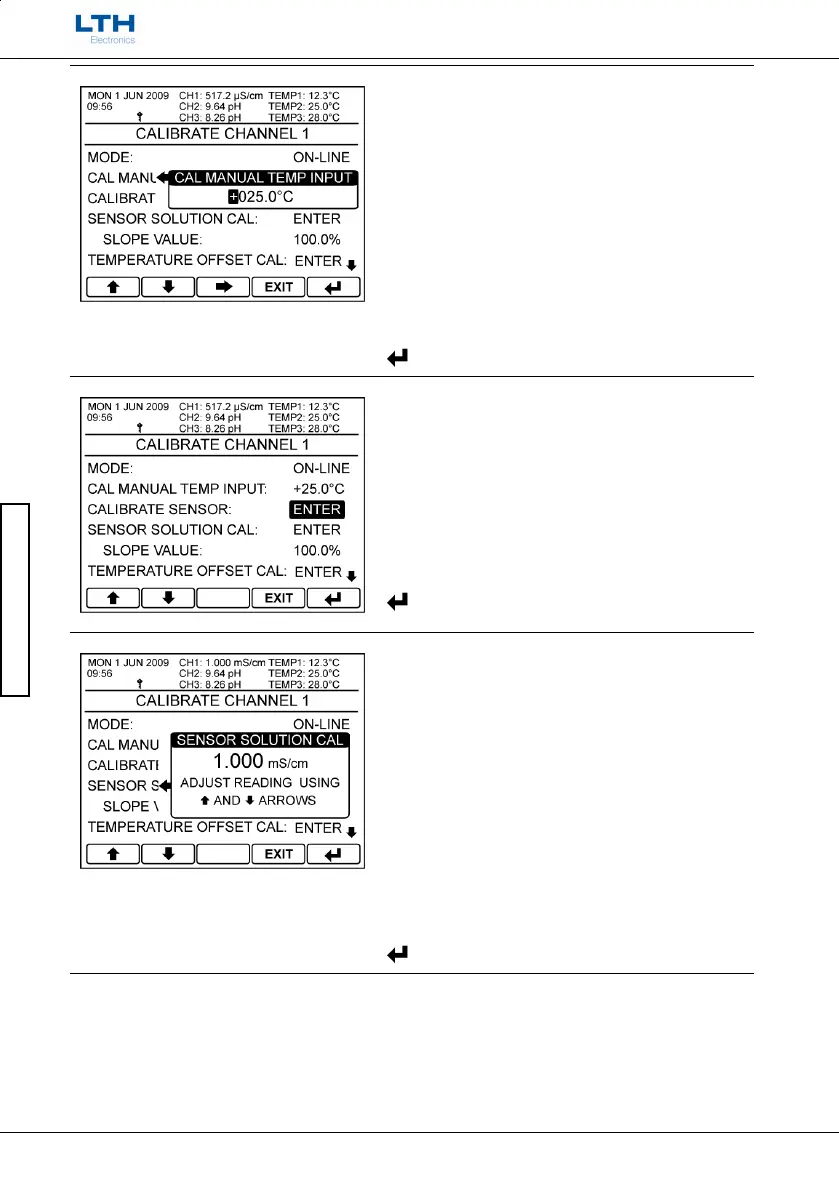

Channel Calibration
Calibration Manual Temperature Input
This setting allows a different fixed temperature
value to be used when calibrating. Makes it easier to
calibrate a standard solution at a different
temperature to the process. Only available when the
temperature compensation mode has been set to
manual in the channel setup menu.
/ – Increase / Decrease Digit

– Select Next Digit
EXIT
– Cancel
– Save Value
Calibrate Sensor
Sensor loop calibration. Must be carried out when a
sensor or sensor cable is changed. See page 27 for
more details.
/ – Select Option
EXIT
– Return to Select Calibration Channel
– Enter Sensor Calibration
Sensor Solution Calibration
The sensor solution calibration enables the user to
adjust the sensor reading to match a known input.
The current sensor reading can be seen in the pop-up
window and is adjusted by pressing the up and down
arrows. When the reading is correct press the enter
button to store the calibration. The calculated slope
or offset, depending on the channel’s units, are
shown in the next menu entry.
/ – Adjust the Reading Up or Down
EXIT
– Cancel
– Save Calibration
To Next Page
