LTH Electronics MXD70 Series User Manual

Data Logging
User Interface Guide
- 29 -

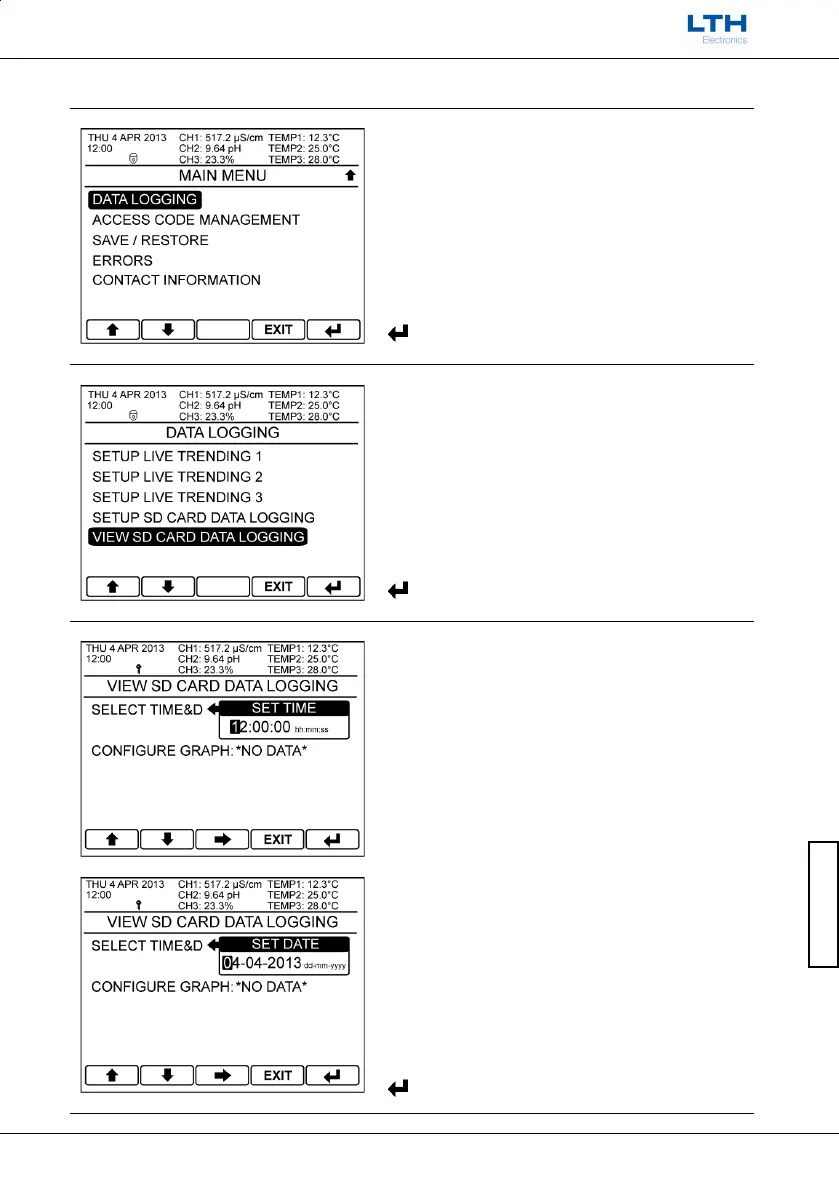

Data Logging
View SD Card Data Logging
Main Menu
From the front screen press the menu button to
show the main menu options and select Data
Logging.
/
– Select Option
EXIT
– Return to Front Screen
– Enter Option
Data Logging
Select View SD Card Data Logging.
/
– Select Option
EXIT
– Return to Main Menu
– Enter Option
Select Time & Date
Enter the time and date of the data to be viewed. If
the SD card contains no data at the selected time and
date then the configure graph shows *No Data*.
Note. If the SD card contains many files then there
may be a delay whilst the card is searched.
/
– Increase / Decrease Digit

– Select Next Digit
EXIT
– Cancel
– Save Value
