Connections

MXD75 Installation Guide

- 27 -

Connections

Digital Inputs

The MXD75 features 8 digital inputs, which can be used to initiate a user configurable

instrument operation by use of a volt free link, switch or relay. The instrument can be

configured to initiate the appropriate action when the contact either closes or opens.

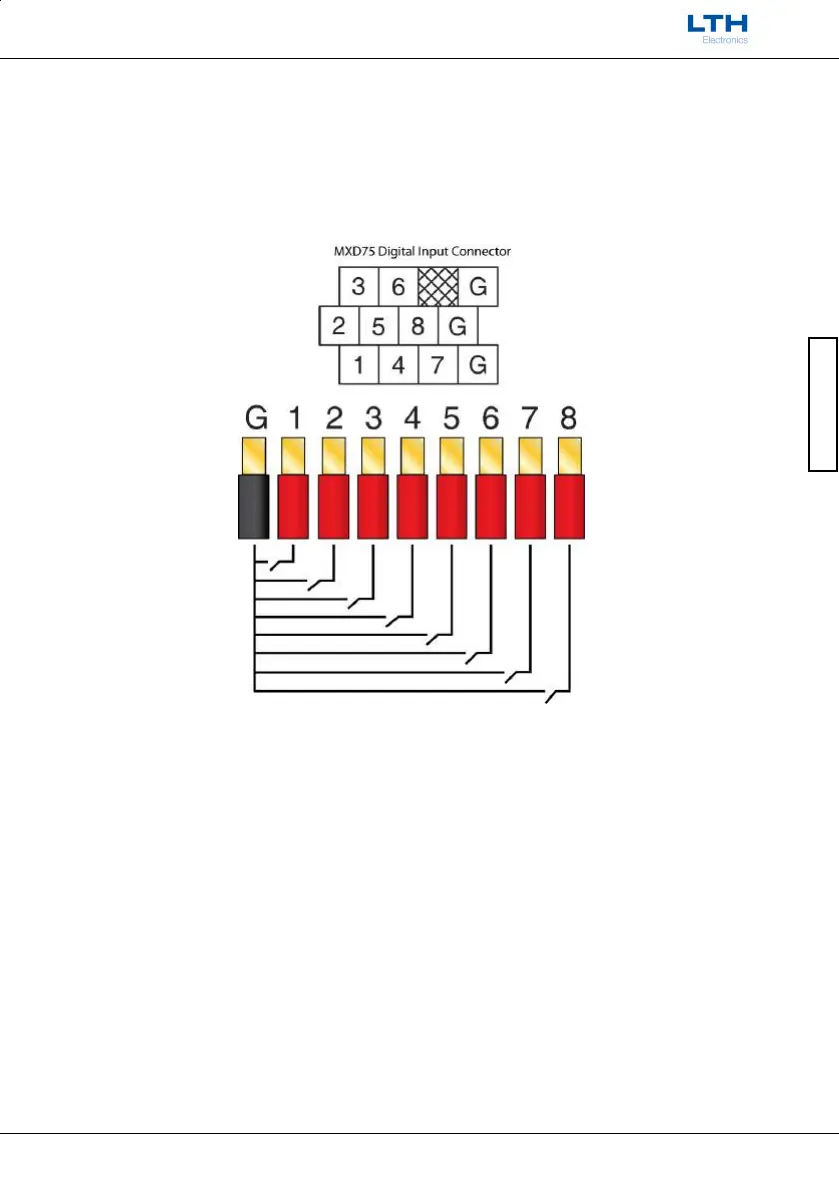

MXD75 Surface Mount Instrument Digital Inputs Connection Detail.
