LTH Electronics MXD70 Series User Manual

Installation
MXD70 Dissolved Oxygen
Setup and Operating Guide
- 11 -
Installation

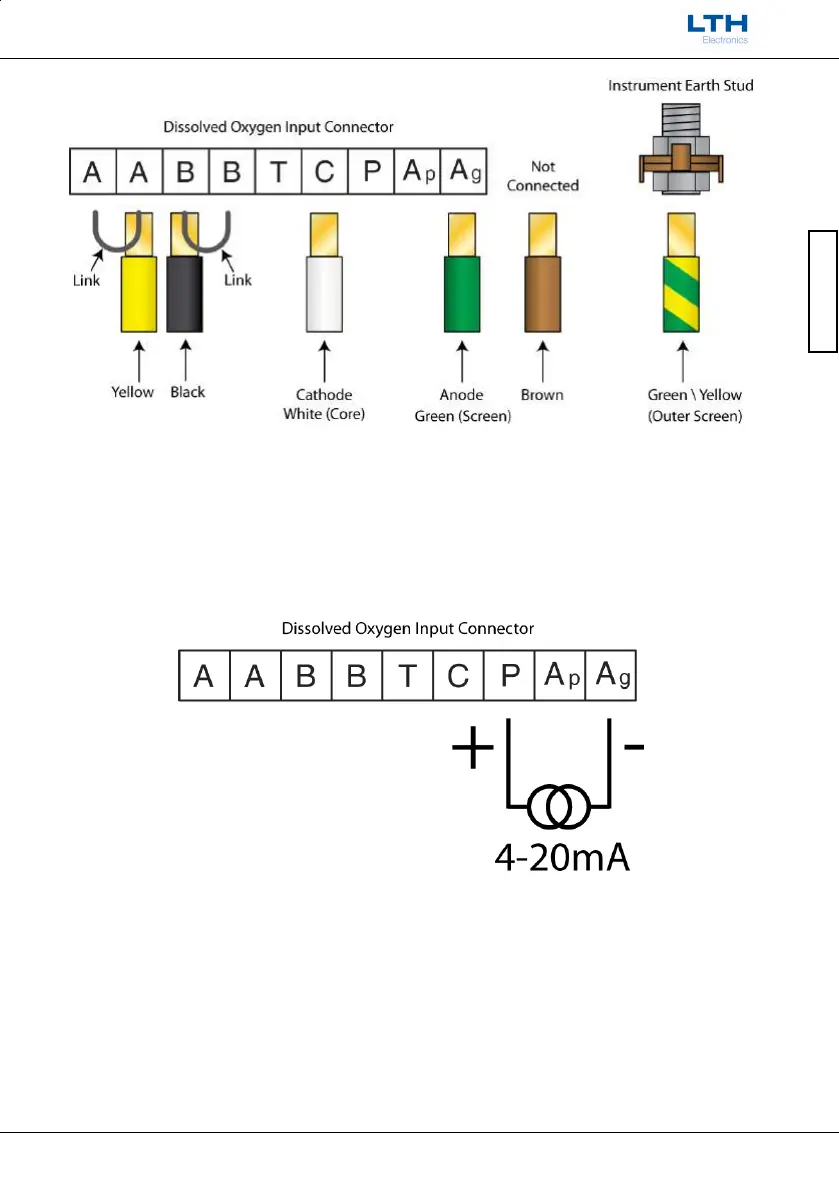

LTH OE15 Galvanic Dissolved Oxygen Sensor Cable Connection Details
The Dissolved Oxygen input card of the MXD70 Series can also accept a 4-20mA input signal from a
pressure transmitter. This can be scaled using the instrument’s user menu and permits active pressure
compensation of the dissolved oxygen measurement. The signal can either be 24V loop powered, from
the MXD70 instrument or externally powered from the transmitter. The mode of operation is selected
in the software setup.
DynaProbe & ProcessProbe Cable Connection Details
