Installation
MXD70 Auxiliary mA Input
Setup and Operating Guide
- 9 -
Installation

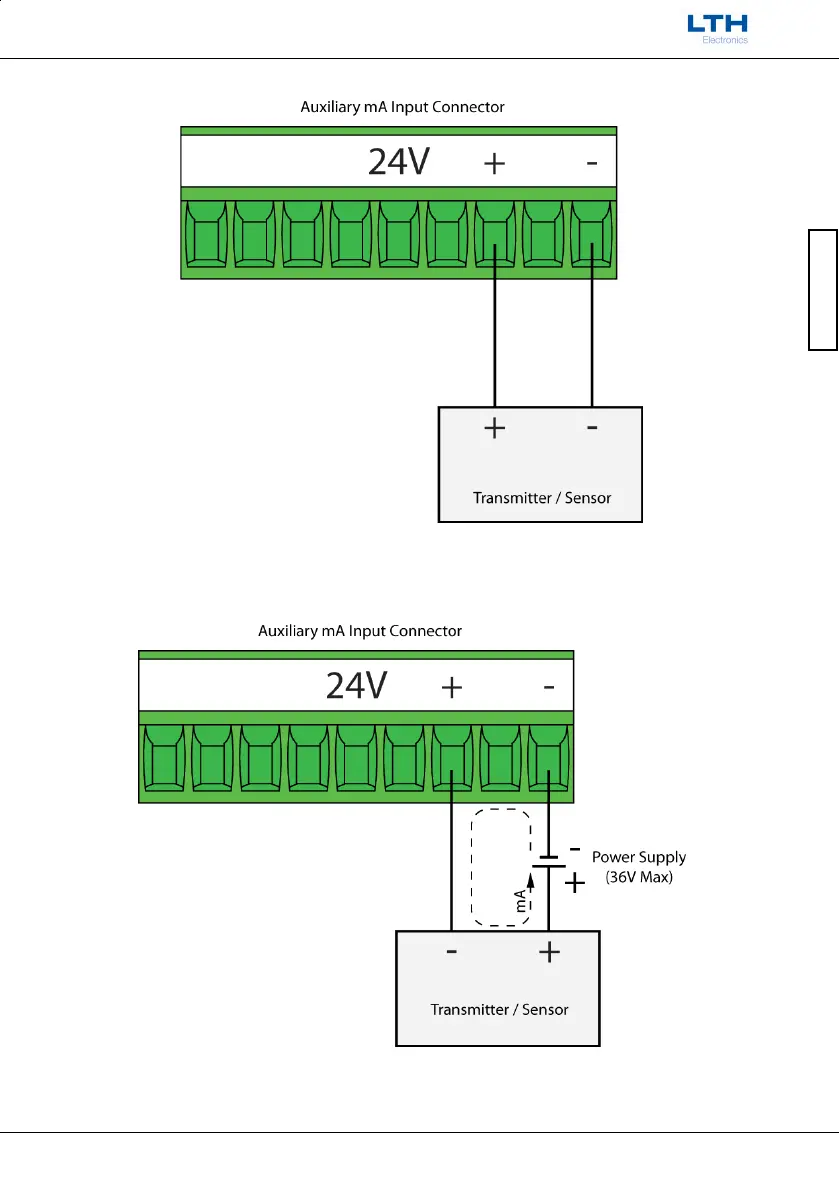

Internally Powered Loop Connection Details
Loop Mode Set to “24V Loop”
(MXD70 powers the loop with 24V)
Externally Powered Loop Connection Details
Loop Mode Set to “mA Input”
