MXD75 Installation Guide
Installation

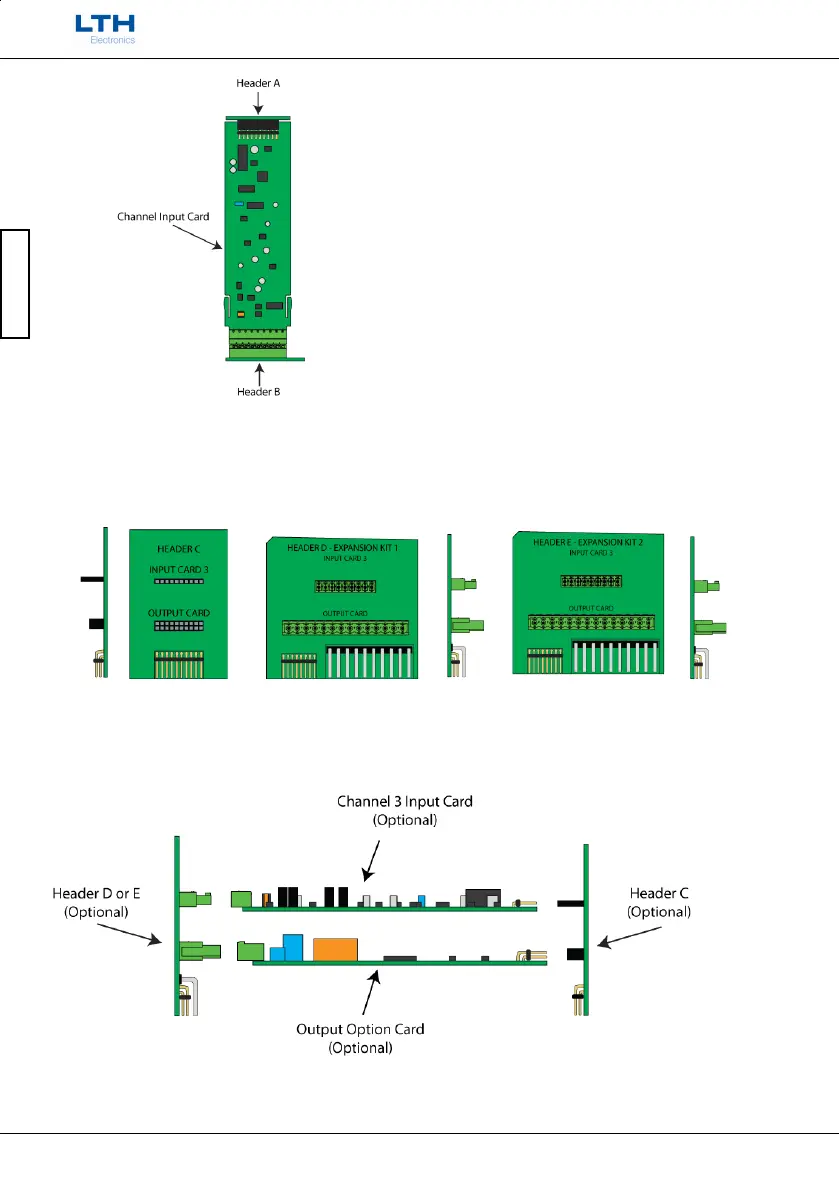

Input Card 1 & 2 Installation
Top View
Input card 3 and the output option card are installed via the use of header C and either
header D or E depending on the configuration of the output option card. (N.B. header’s C, D
and E are not supplied with the standard instrument and must be purchased separately if
upgrading the unit after initial purchase).
Header C Header D Header E
Insert the required input card or output option card between the headers as shown in the
following two diagrams, ensuring that the connectors are correctly aligned with the
headers on the cards.
Input Card 3 & Output Option Card Installation Side View
To Next Page
