Installation
MXD75 Installation Guide
- 17 -
Installation

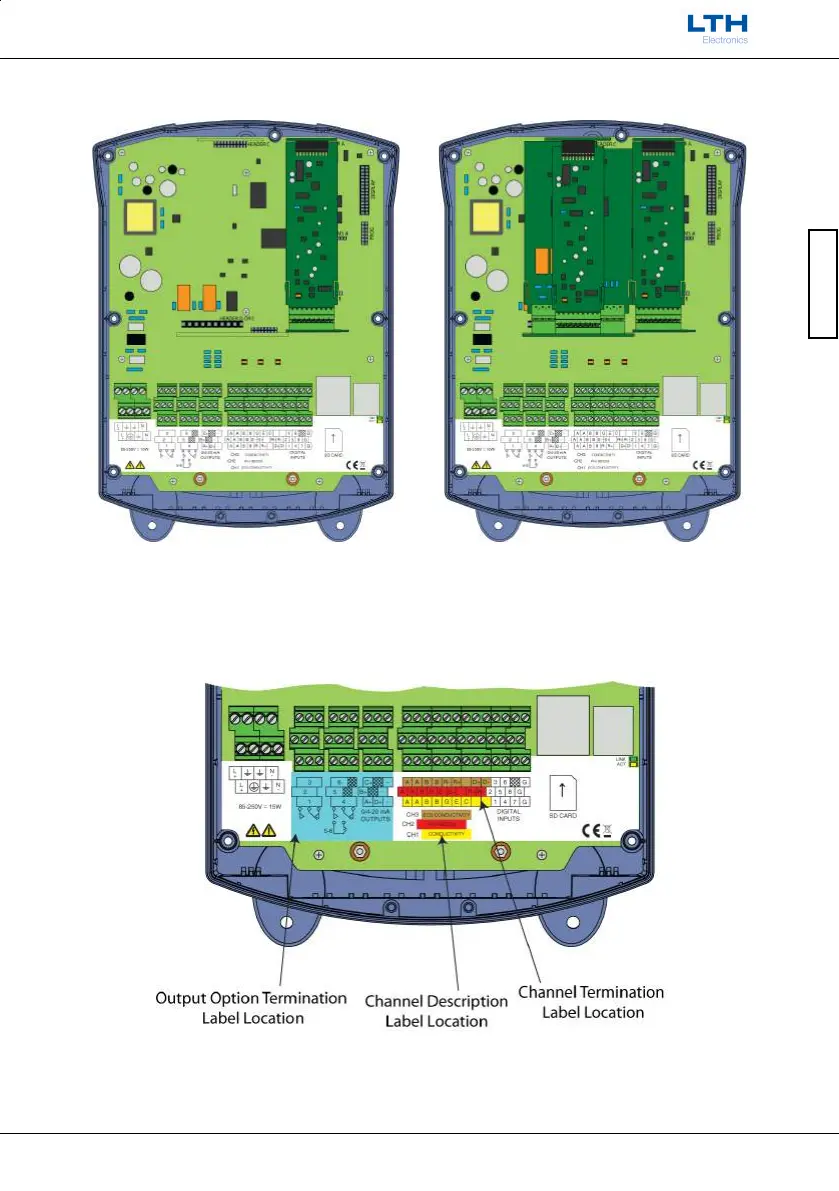

Once inserted the instrument should look as follows
With Input Card 1 and 2 With Input Card 1, 2, 3 and
Output Option Card
Now attach the supplied connection labels to the terminal area label and inside the
terminal cover as shown.
Supplied Terminal Label Locations
