LTH Electronics MXD70 Series User Manual

Data Logging
- 24 -
User Interface Guide
Data Logging

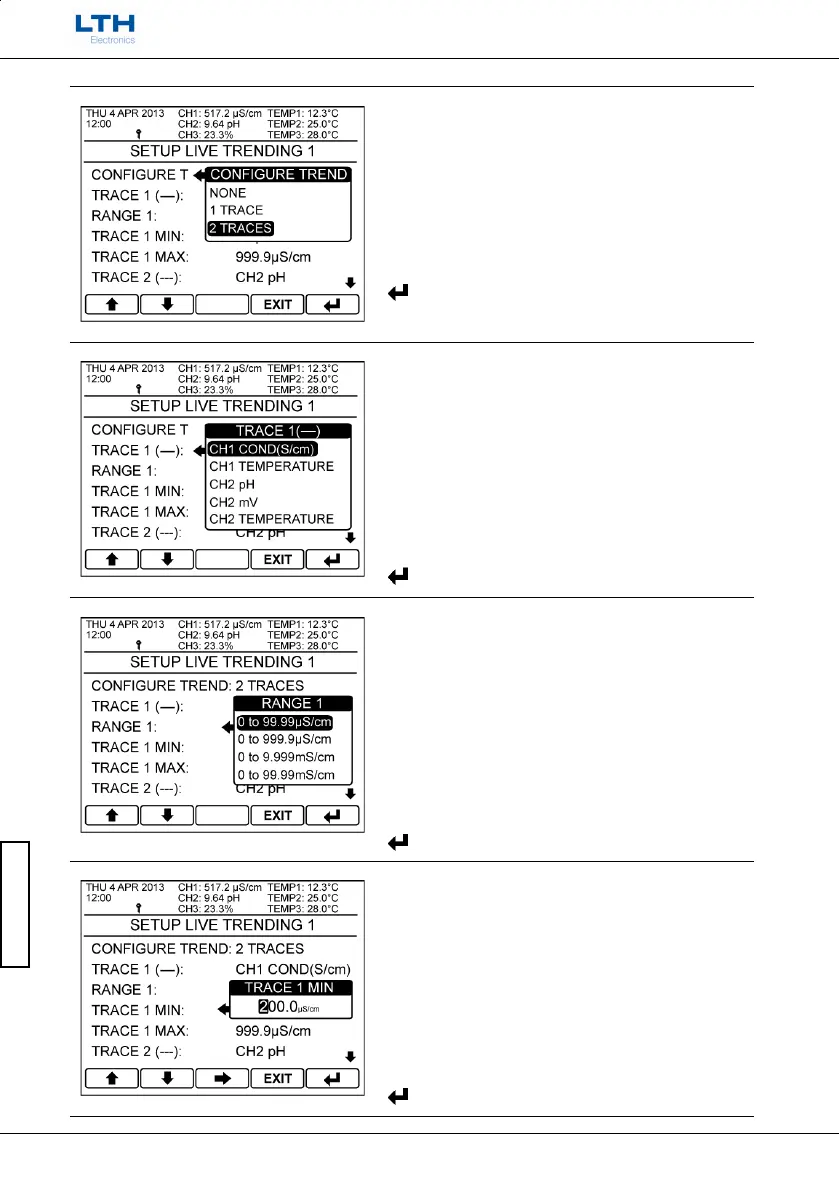

Configure Trend
Select the number of traces to display. By selecting
none the live trend is disabled and no longer visible
from the front screen.
/
– Select Option
EXIT
– Cancel
– Save Selection
Trace 1 (—)
Select which measurement Trace 1 (left hand side
axis) is to be associated with. The options shown
depend on the configuration of the instrument.
/
– Select Option
EXIT
– Cancel
– Save Selection
Range
If the trace’s associated measurement is currently
configured to use auto ranging then a fixed range
will need to be assigned to the trace.
/
– Select Option
EXIT
– Cancel
– Save Selection
Trace Min
Enter the Trace’s minimum displayed value. Adjust in
conjunction with the maximum displayed value to
increase the measurements displayed resolution.
/
– Increase / Decrease Digit

– Select Next Digit
EXIT
– Cancel
– Save Value
