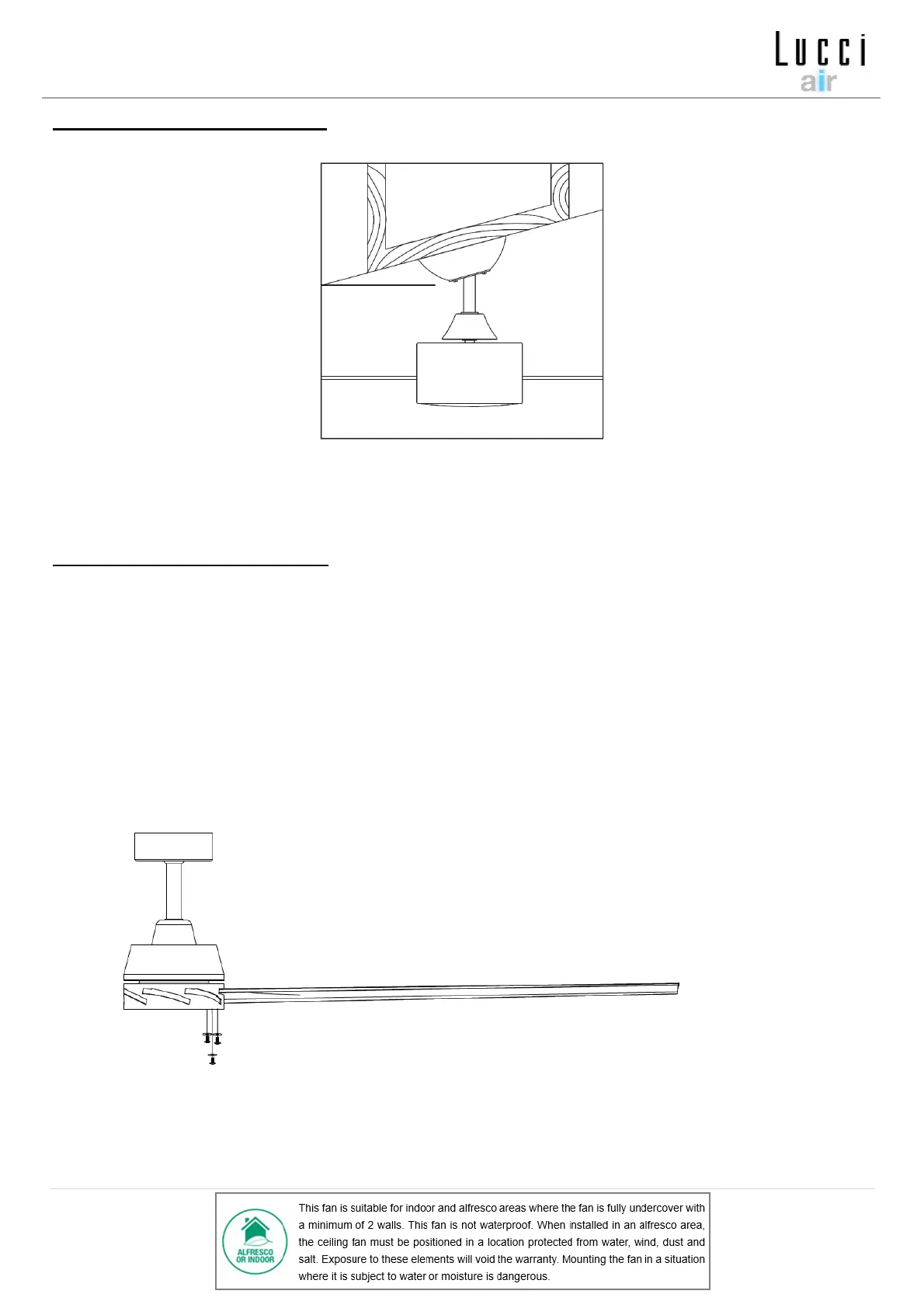

ANGLED CEILING INSTALLATION
This fan hanging system supports a maximum 9 degree angled ceiling installation. (Fig. 3)
INSTALLATION OF BLADE (Fig. 4)
1. Insert the blade into the slot of rotating member of fan motor assembly.
2. Align and engage the holes of the blade to the blade bracket.
3. Secure the blade to the fan motor assembly by tightening the 3 blade screws and washers.
Ensure all screws are tightened evenly to reduce the chance of warping or unbalancing.
Take care not to over tighten the screws, as this can damage the blades
4. Repeat the same process for the other blades.
