14

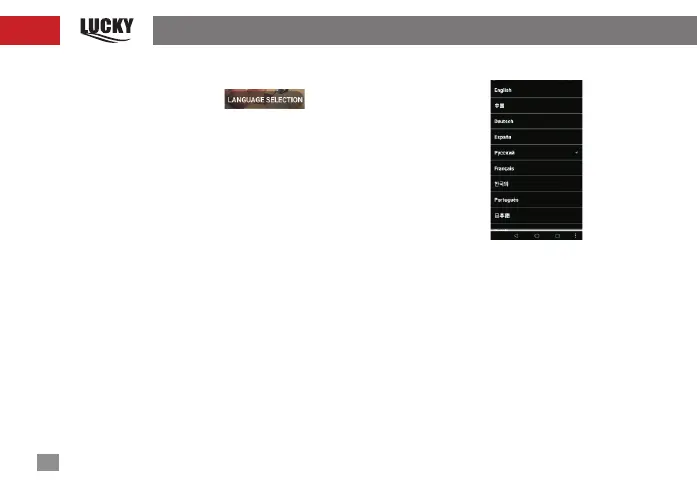

8. LANGUAGE SELECTION
In Figure 9, click on the button in the main
interface, then the language setting can be done, as shown
in figure 22;Can be selected Russian, German, Dutch, Spanish,
French, Japanese, Korean, Hungarian, Portuguese, polish,
English, Chinese, and the setting is done successfully; click
on Fish Finder button on the top left corner, and then return
the main menu for other operations.
fig-22
9. PRODUCT SPECIFICATION
1.)Sonar frequency:125KHz
2.)Sonar coverage:90 degrees
3.)Depth capacity:0.6M-45M(2Feet-135Feet)
4.)Power:3.7V rechargeable lithium battery
5.)Running time:5 hours fully charging
6.)WIFI range:70M
7.)WIFI frequency:2.4GHz
8.)Charging indicator:red light
9.)Working indicator:blue light
