Lufft WS800-UBM - XDR Protocol Communication

Operating Instructions Smart Weather Sensor
G. Lufft Mess- und Regeltechnik GmbH, Fellbach, Germany 129

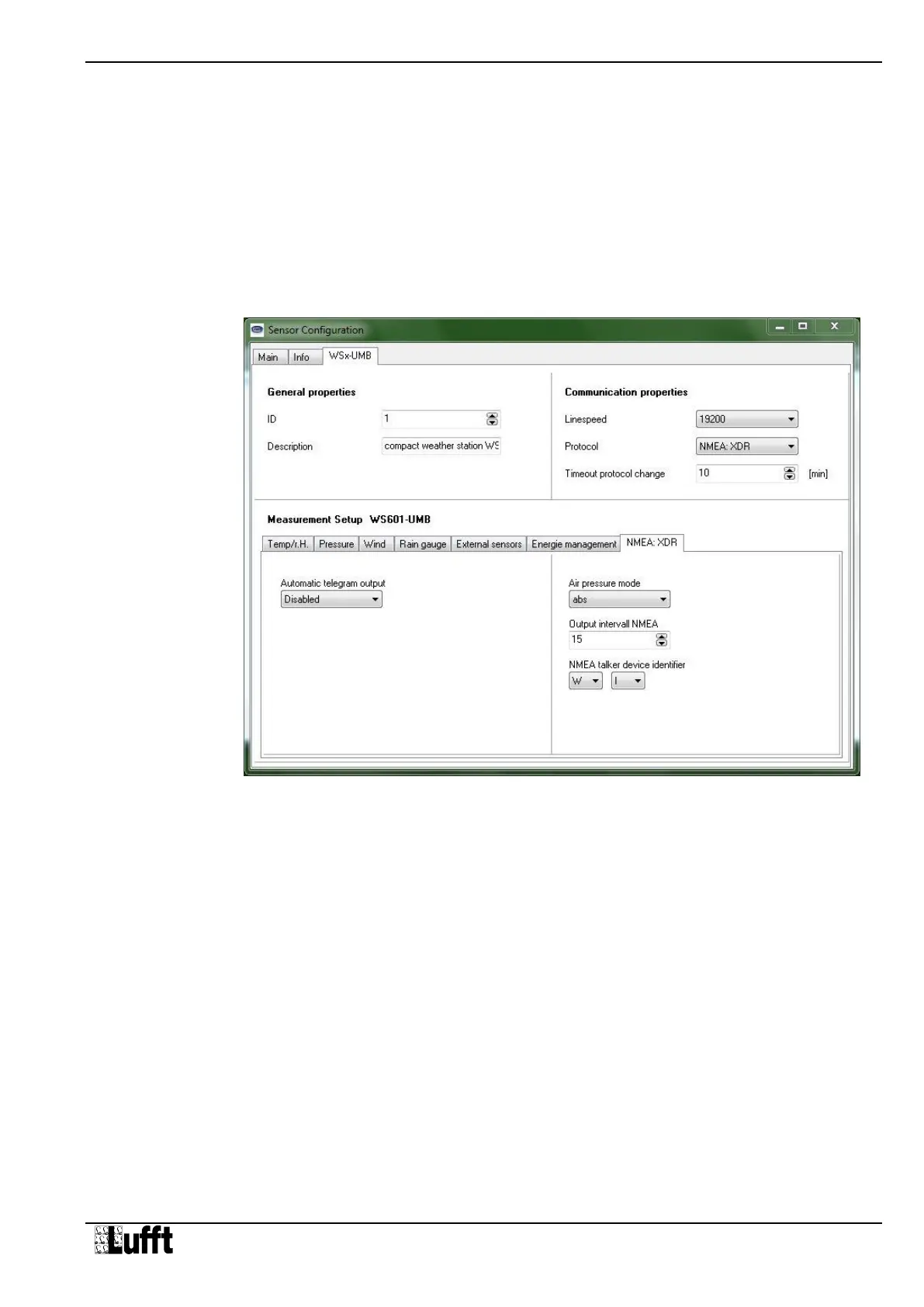

Figure 44: Sensor
Configuration XDR
19.8 Communication: XDR Protocol
The XDR protocol allows to transmit a selected data set of the Smart Weather Sensor in a
NMEA compatible format. The data telegram can be transmitted on request, or the Smart
Weather Sensor can be set into auto transmit mode, where the data telegram will be
triggered automatically at an selectable interval.
A set of ASCII configuration messages allows to apply some configuration settings without
leaving the XDR protocol.
For configuration settings exceeding this command set use the UMB Config Tool. To change
into the UMB protocol a UMB message must be addressed to the device within 5 seconds
after power up or reset.
Protocol
XDR protocol selected
Automatic telegram output
activate continous mode (automatic result
message transmission)
Air pressure mode
select absolute or relative air pressure for the
measurement data message (seconds)
Output Interval NMEA
Interval for automatic result message transmission
NMEA talker device identifier
Select the Talker ID part of the NMEA telegram
header
