Operating Manual Smart Weather Sensor
36 G. Lufft Mess- und Regeltechnik GmbH, Fellbach, Germany

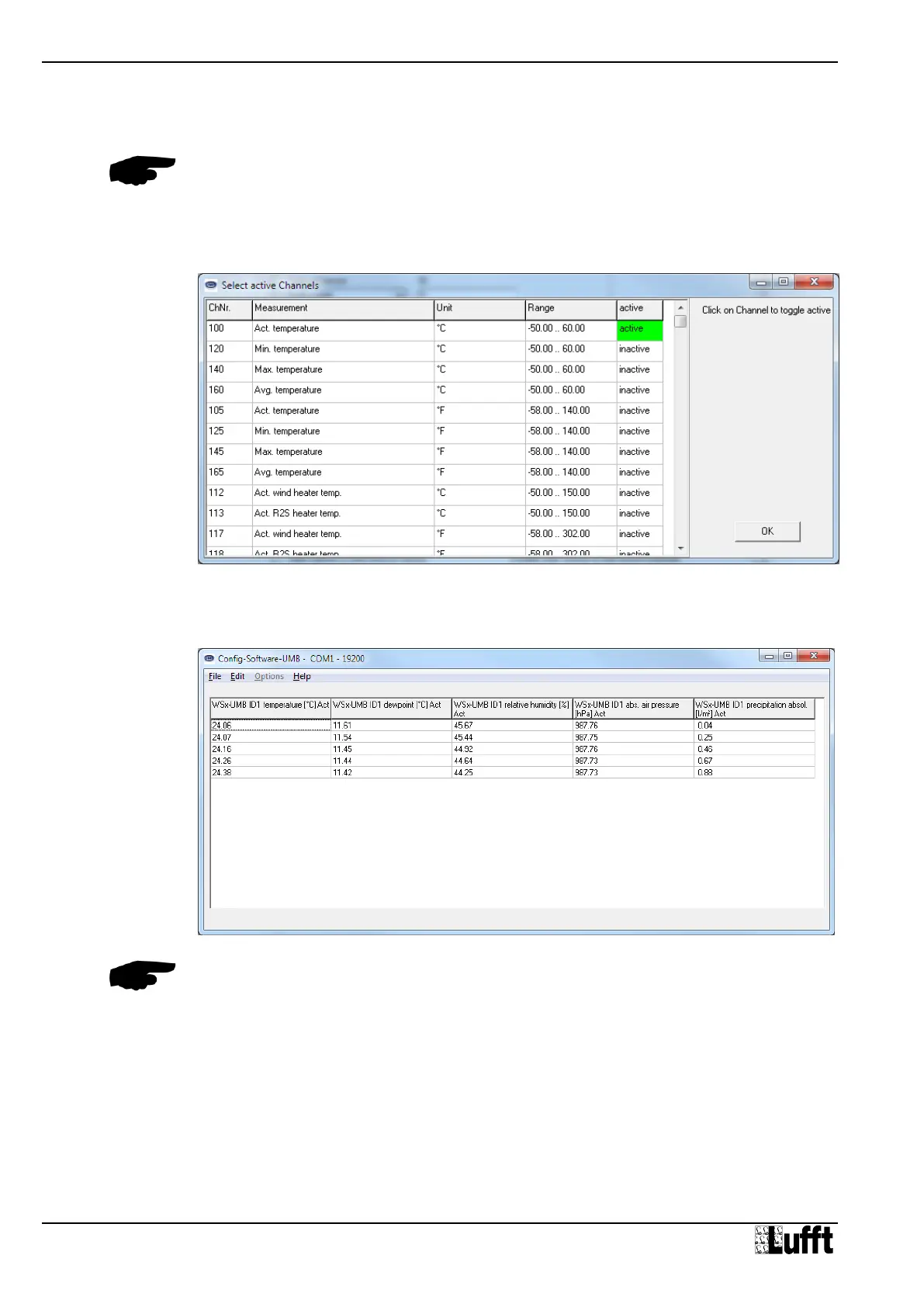

Figure 19 Measurement
Polling Channels
Figure 20 Example of
Measurement Polling
10.3 Function Test with UMB-Config-Tool
The functions of the Smart Weather Sensor can be tested with the UMB-Config-Tool by
polling various channels.
Note: All other devices which are used in the polling process, e.g. modems, LCOM etc.,
must be disconnected from the UMB network during configuration.
10.3.1 Channels for Measurement Polling
You can select the channel for measurement polling by the UMB-Config-Tool by clicking on
the respective channel.
10.3.2 Example of Measurement Polling
Note: The UMB Config Tool is provided for test and configuration purposes only. It is not
suitable for the permanent acquisition of measurement data. We recommend the use of
professional software solutions for this purpose, e.g. Lufft SmartView3.
