Operating Manual Smart Weather Sensor

G. Lufft Mess- und Regeltechnik GmbH, Fellbach, Germany 35

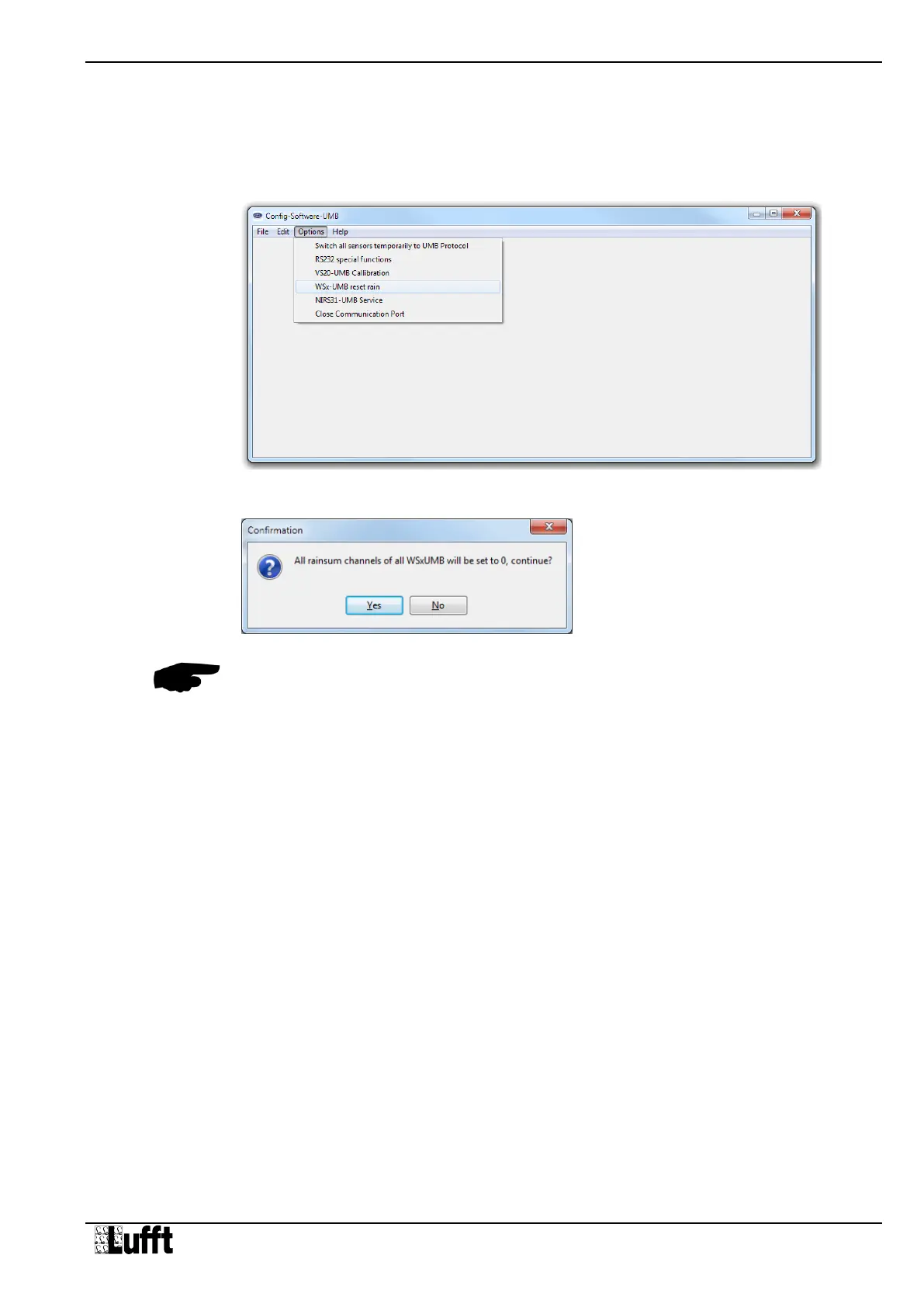

Figure 18: Reset

Precipitation Quantity

10.2.12 Reset Precipitation Quantity

To reset the accumulated absolute precipitation quantity the UMB-Config-Tool offers the

following function:

Options WSx-UMB reset rain

Confirm the reset with ‘Yes’

Note: The precipitation quantities are reset in ALL Smart Weather Sensors on the respective

UMB network. The devices reboots after this function has been used.

Default Chapter3
- Table of Contents3
1 Please Read before Use5
- Symbols Used5
- Safety Instructions5
- Designated Use5
- Incorrect Use5
- Warranty5
- Brand Names5
2 Scope of Delivery6
3 Order Numbers7
- Accessories9
- Spare Parts9
- Additional Documents and Software9
4 Equipment Description10
- Air Temperature and Humidity10
- Air Pressure10
- Precipitation11
- Wet Bulb Temperature11
- Specific Enthalpy11
- Air Density11
- Wind11
- Compass11
- Heating11
- Global Radiation11
- Lightning Sensor11
- Leaf Wetness11
- External Rain Gauge12
- Sensor Technology (Example: WS600-UMB)13
5 Generation of Measurements14
- Current Measurement (Act)14
- Minimum and Maximum Values (Min and Max)14
- Average Value (Avg)14
- Vectorial Average Value (Vct)14
6 Measurement Output15
- Air and Dewpoint Temperature15
- Wind Chill Temperature15
- Humidity15
- Air Pressure15
- Wet Bulb Temperature16
- Specific Enthalpy16
- Air Density16
- Wind Speed17
- Wind Direction17
- Wind Measurement Quality18
- Compass18
- Precipitation Quantity - Absolute19
- Precipitation Quantity - Differential19
- Precipitation Intensity19
- Precipitation Type20
- Heating Temperature20
- Global Radiation20
- Leaf Wetness21
- Lightning Sensor21
- Service Messages21
7 Installation22
- Fastening22
- North Alignment23
- Selecting the Installation Location24
8 Connections26
- Supply Voltage26
- RS485 Interface27
- Connection to ISOCON-UMB (8160.UISO)28
- Use of Surge Protection (8379.USP)28
- Connection of the Leaf Wetness Sensor28
- Connection of External Temperature and Precipitation Sensors28
9 Commissioning29
10 Configuration and Test30
- Factory Settings30
- Configuration with the UMB-Config-Tool30
- Function Test with UMB-Config-Tool36
- Operating Modes of the Smart Weather Sensor37
- Operating Modes for Equipment Heating39
11 Firmware Update41
12 Maintenance41
- Maintenance of the Rain Gauge42
13 Technical Data43
- Measuring Range / Accuracy45
- Drawings48
14 EC Certificate of Conformity59
15 Fault Description60
16 Disposal61
- Within the EC61
- Outside the EC61
17 Repair / Corrective Maintenance61
- Technical Support61
18 External Sensors62
- Leaf Wetness Sensor WLW10062
- External Temperature and Precipitation Sensors64
19 Appendix66
- Channel List Summary66
- Channel List Summary Per TLS2002 FG368
- Communication in Binary Protocol69
- Communication in ASCII Protocol72
- Communication in Terminal Mode75
- Communication in SDI-12 Mode78
- Communication in Modbus Mode119
- Communication: XDR Protocol129
20 List of Figures141
21 Index142
