IMPAC pyrometers series IN 5 plus
24

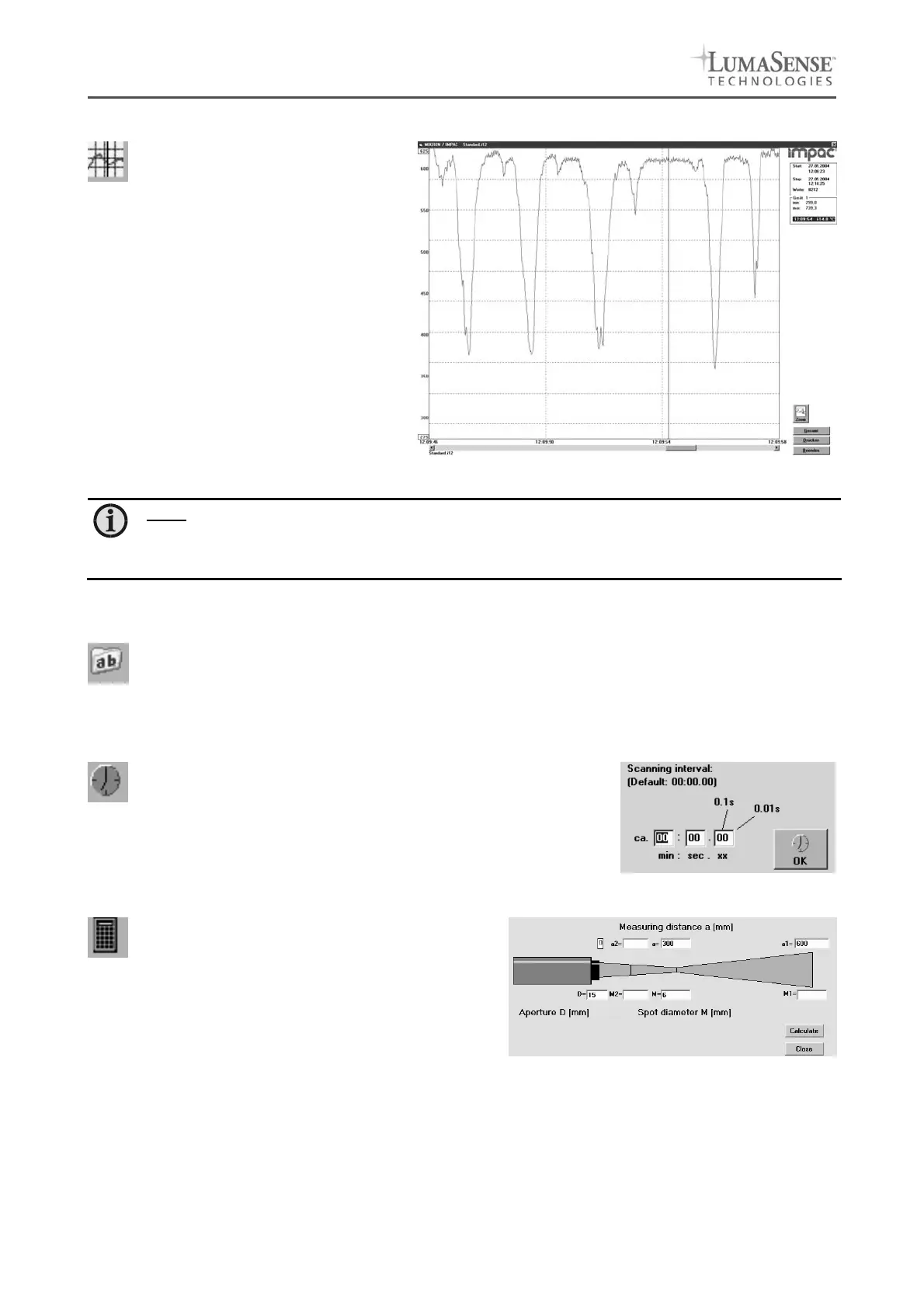

10.11 Trend output (analyzing)
The graph’s curve depicts the tem-
perature change over time within
the specified temperature range.
Additionally, other information appears in this
window; such as recorded time (x-axis) and
temperature in degrees (y-axis) as well as
the time and temperature at the vertical cur-
sor line which can be dragged with the
mouse.
• Selecting the Trend output initially
causes all the saved data to be dis-
played.
• If the data exceeds an amount that can be
represented reasonably, you may “Zoom“
in on a partial segment using the mouse
(such as the segment represented in the
example). Under “Total” you can return to
the representation of the entire curve.
Note:
The last reading is saved in the standard.i12 file and automatically appears in this
form upon opening Listing or Trend output.
If file open was loaded using another file, the previous file will be overwritten and re-
placed by the standard.i12 file.
10.12 Output .TXT file (analyzing)
The same file as under “Output listing” may be converted into a text file and can be easily opened,
for example with EXCEL. With the standard import settings EXCEL automatically formats the col-
umns accordingly (tabulator as separators).
10.13 PC sampling rate (time interval bet
ween two measurements)
This function sets a time interval. After each interval one meas-
ured value is stored on the PC. The bigger the time interval the
smaller will be the stored file. This function is mainly used for
long term measurements.
10.14 Spot size calculator
After entering the aperture and the main spot size,
the input of interim values calculates spot sizes in
different measuring distances of the fixed optics.
11 Transport, packaging, storage
The instrument can be damaged or destroyed if shipped incorrectly. To transport or store the instrument,
please use the original box or a box padded with sufficient shock-absorbing material. For storage in humid
areas or shipment overseas, the device should be placed in welded foil (ideally along with silica gel) to pro-
tect it from humidity.
The pyrometer is designed for a storage temperature of -20 to 70°C with non-condensing conditions. Other
kind of storage can damage or malfunction the pyrometer.
