IMPAC pyrometers series IN 5 plus
7
IN 5-H plus, IN 5/5-H plus:
0.01 s; adjustable in the pyrometer: 0.5 s; 1 s; 2 s; 5 s,
adjustable via interface: 0.5 s; 1 s; 2 s; 5 s; 10 s; 30 s
IN 5-L plus:
0.18 s; adjustable in the pyrometer: 0.5 s; 1 s; 2 s; 5 s,
adjustable via interface: 0.5 s; 1 s; 2 s; 5 s; 10 s; 30 s
Data handling: Digital
IR-Detektor: Thermopile
Power supply 24 V DC (18 to 30V DC) nominal, ripple must be less than 0.5 V
Power consumption: Max. 70 mA
Analog output: adjustable 0 to 20 mA or 4 to 20 mA (linear)
Load:
max. 500 Ω at 24 V (max. 200 Ω at 18 V)
Digital interface: RS232 or RS485 (addressable, half-duplex)
baud rate 1200 to 19200 Bd, resolution 0.1°C
Isolation: Power supply, analog outputs and digital interfaces are
electrically isolated from each other
Parameters: Adjustable on the pyrometer (in offline mode):
Emissivity, exposure time, 0/4 to 20 mA analog output range,
online- / offline switch
Readable and adjustable via interface / PC (in online mode):
Emissivity, exposure time, 0/4 to 20 mA analog output range, sub
temperature range, automatic clearing of the max./min value storage,
external clearing of the max./min value storage, clear times of the
max/min value storage, address, baud rate, internal temperature °C /
°F, max. / min. selection, activation of ambient temperature correction
Emissivity: 0.2 to 1 switchable in the instrument (offline mode) or with the software
InfraWin (online mode) in steps of 0.01
Maximum value store/
Minimum value store
Built-in single and double store. Clearing with clear time t
CL
(0.1 s; 0.25 s; 0.5
s; 1 s; 5 s; 25 s), external contact or via interface or also automatically with
each new item to be measured
Sighting (optional): Laser targeting light (max. power level < 1 mW,
λ = 630-680 nm, CDRH class II)
Weight: 410 g
Housing: Stainless steel
Relative humidity Non condensing conditions
Operating position: Any
Ambient temperature: 0 to 63°C (0 to 60°C for IN 5/5 plus MB 25)
Storage temperature: -20 to 70°C
Protection class: IP65 (DIN 40050)
CE-label: according to EU directives about electromagnetic immunity

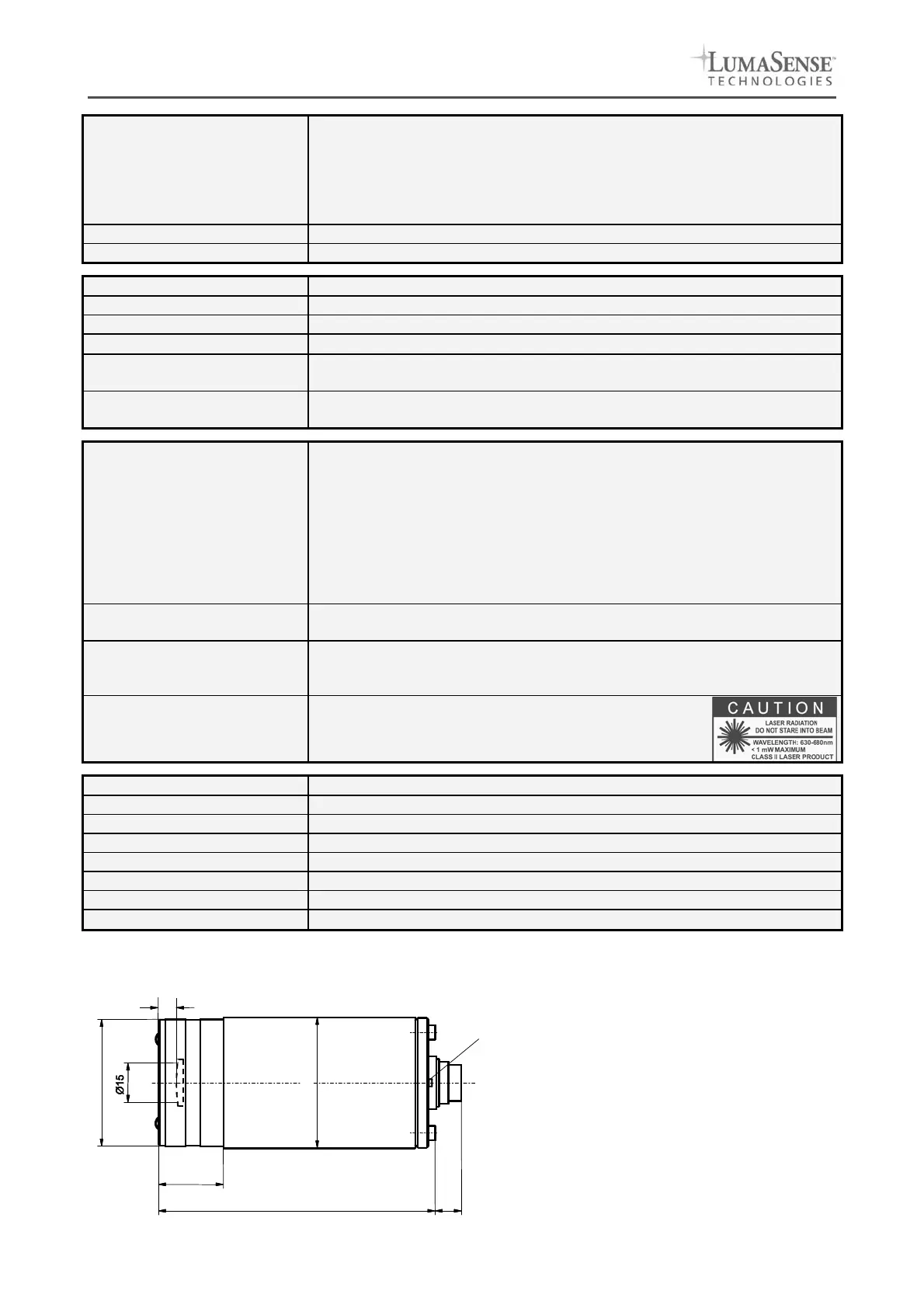

1.1 Dimensions
104.5
10
24.5
7
Button for laser targeting light
(only if the instrument is equipped
with a laser targeting light)
Ø 49.5
-0.1
Ø 48
-0.1
