IMPAC pyrometers series IN 5 plus
8

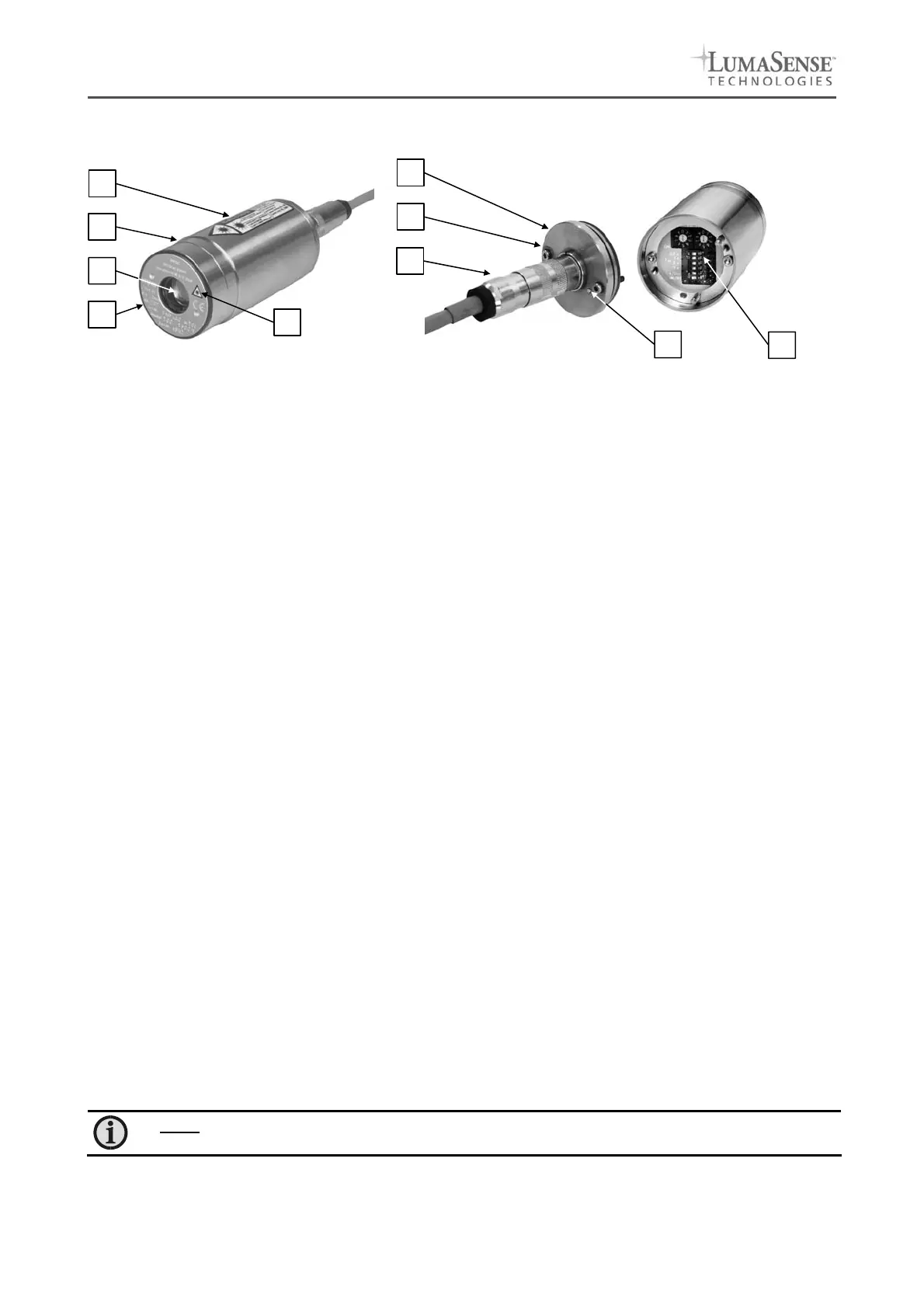

2 Overview
1 Laser warning label (only instruments with
laser targeting light)
2 Stainless steel housing
3 Optics
4 Type label
5 Housing rear panel
6 Fixing screws for rear panel
7 Electrical connector
8 Laser targeting light button
(only instruments with laser targeting light)
9 Setting keys at the pyrometer
2.1 Appropriate use
IN 5 plus: The IMPAC pyrometer I
N 5 plus is a stationary infrared thermometer for non-contact temperature
measurement of non-metallic surfaces or painted, coated or anodized metals with a temperature range from
-32 to 900°C.
IN 5-L plus: as IN 5 plus, with small spot size.
IN 5-H plus: as IN 5 plus, with shorter exposure time.
IN 5/5 plus: The IMPAC pyrometer IN 5/5 plus is a stationary pyrometer especially for non-contact tempera-
ture measurement of glass surfaces and quartz surfaces with temperature ranges between 100 and 2500°C.
IN 5/5-L plus: as IN 5/5 plus, with small spot size (temperature ranges between 200 and 2500°C).
IN 5/5-H plus: as IN 5/5 plus, with shorter exposure time (temperature ranges between 200 and 2500°C).
IN 5/4 plus: The IMPAC pyrometer IN 5/4 plus is a special pyrometer for non-contact temperature meas-
urement of metal parts in flame heated furnaces and the measurement of glass if a small penetration into the
glass is necessary (e.g. glass drop) (temperature ranges between 300 and 2500°C).
For optimal match of the instrument to the application the pyrometers are equipped ex works with the desired
optics (for every instrument 3 different optics are available).
All settings which are necessary for a correct temperature measurement can be adjusted at the pyrometer
itself (emissivity, exposure time, analog output (0 or 4 to 20 mA) and online- / offline-mode). Additionally
further pyrometer settings can be made via serial interface RS232 or RS485 (specified when ordering) and a
PC and the standard software InfraWin. Also temperature indication, analyzing of the measurement and data
logging can be done with this software.
The type IN 5/5 plus can optionally be equipped with a laser targeting light for the exact alignment on the
measuring object, all other types are always equipped with a laser targeting light.
2.2 Scope of delivery
Instrum
ent with selectable optics, PC measurement and evaluation software „InfraWin“, allen key 2.5 mm,
works certificate, operation manual.
Note:
A connection cable is not included with the instrument and has to be ordered
separately (see section 15, Refer
ence numbers).
6
7
5
9
1
2
4
8
3
1
