Series 6 – TV Advanced Manual Accessory (optional) ∂ 17
5 Accessory (optional)

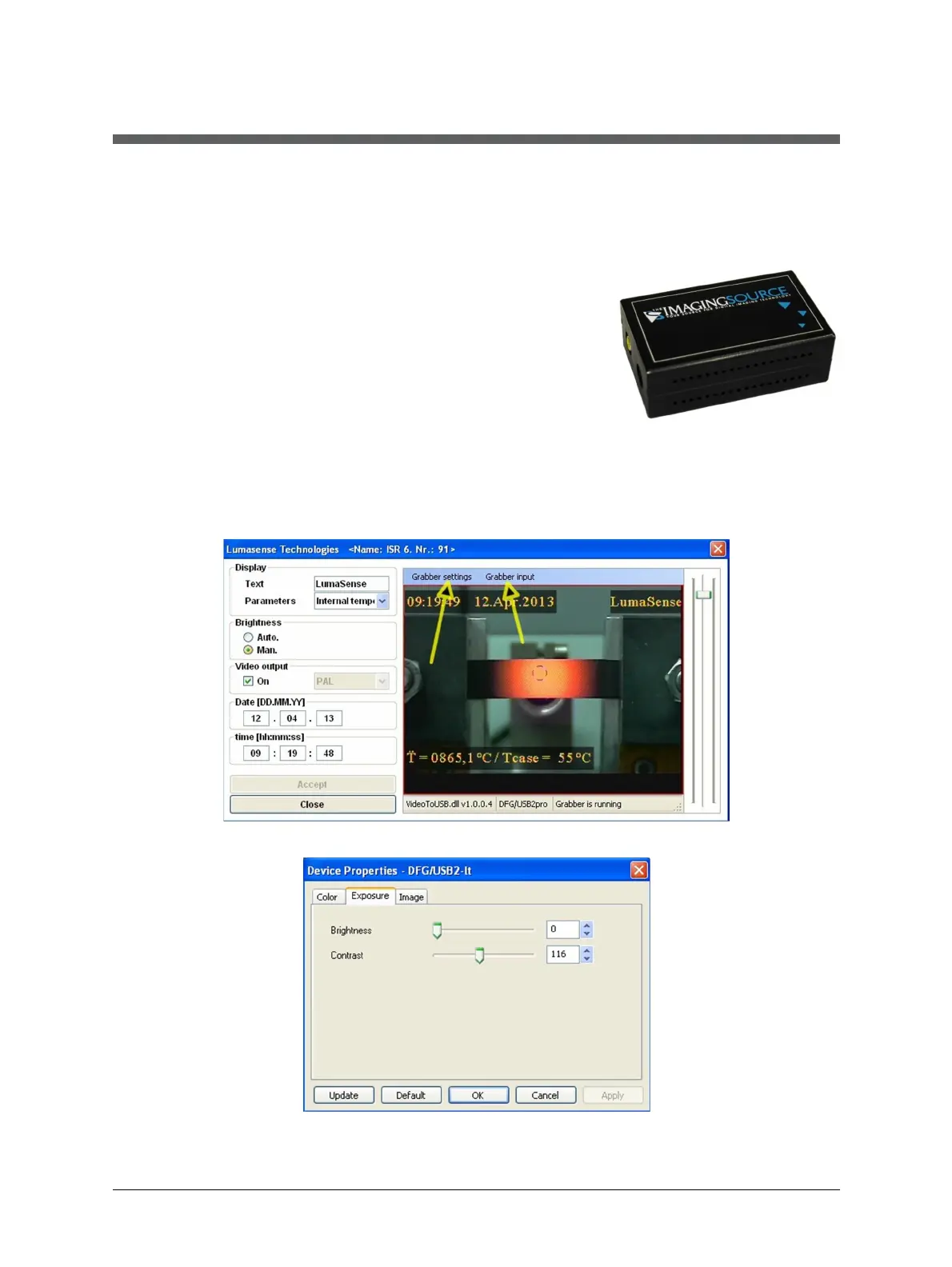

5.1 Video Grabber (Converts Analog TV to USB)
Using the video grabber (optional accessory) in conjunction
with the software InfraWin 5, it is possible to see the video
image on the PC screen together with the temperature graph.
The video image can be size adjusted and positioned at any
place of the screen. The properties of the pyro's video chip as
well as properties of the video grabber can be adjusted with
InfraWin 5.
5.1.1 Adjusting Grabber Settings
On top of the video image there is a menu labeled Grabber settings. Set the properties of the
video image by changing the parameters of the video grabber (works like the controlling knobs
of a monitor).
1. Select Grabber settings.
2. Configure the desired settings.
3. Save the configured settings by pressing OK.
