Series 6 – TV Advanced Manual Electrical Installation ∂ 11
3 Electrical Installation
3.1 Video Output Electrical Connection
On the back cover of Series 6-TV Advanced pyrometers, there is an additional coaxial connector
for the video output. LumaSense offers ready-made video connection cables in various lengths,
which are fitted with a BNC connector and a BNC-RCA adapter to connect to a monitor or video
grabber.

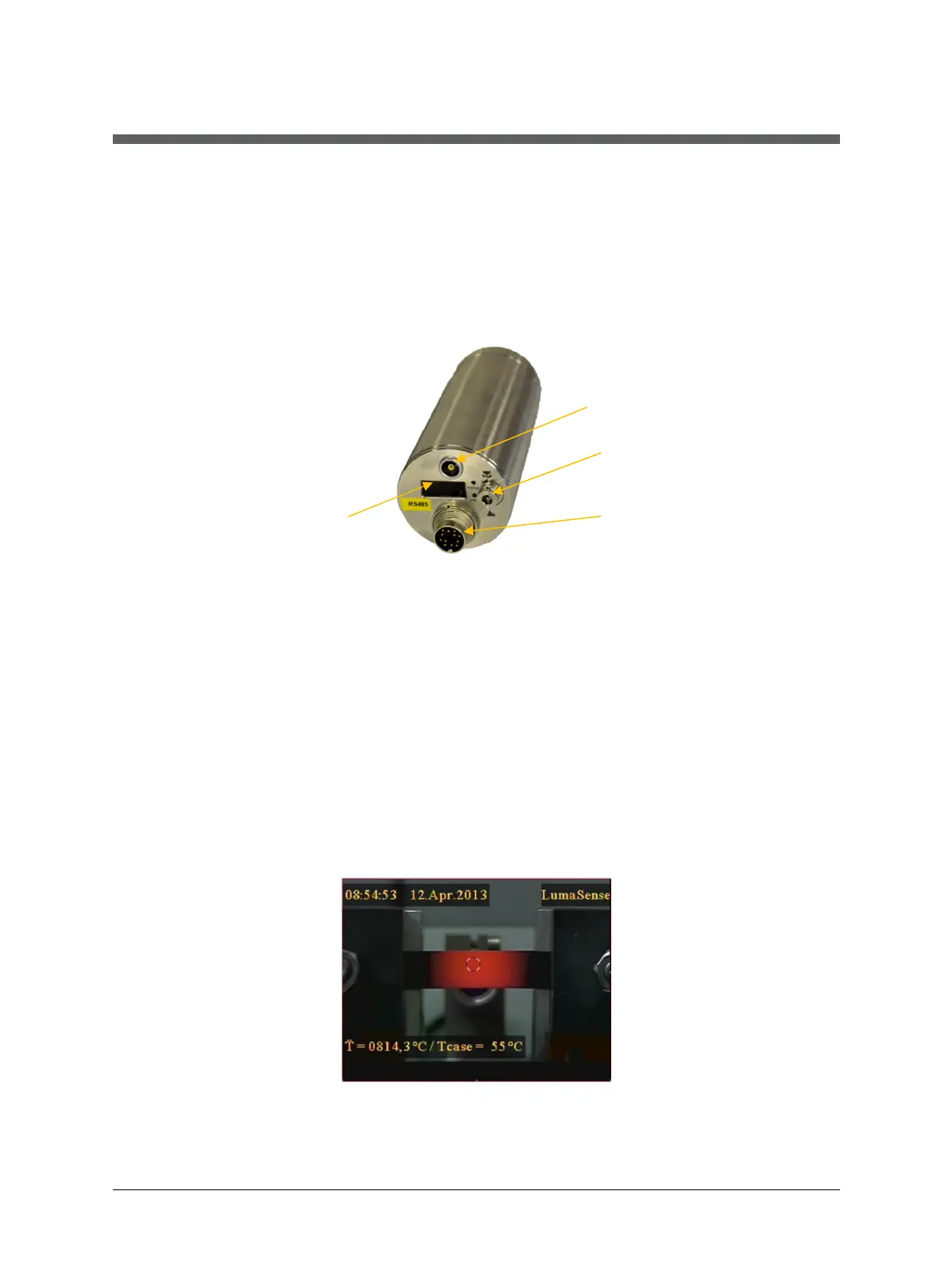

Rear View of the Pyrometer
3.1.1 Video Image
The video image is used for aligning the pyrometer to the measuring object and shows the
following information:
∂ The measuring object and its surroundings
∂ Target marking circle (The size of the circle corresponds to the measuring target size)
∂ Current temperature reading
∂ In addition to the measuring temperature, one of the following parameters is displayed:
o Internal temperature of the pyrometer (Tcase)
o Measuring distance (a = xxxxx)
o Serial number (SNo: xxxx)
o Signal intensity (I = xxx.x% only ISR 6-TV Advanced and IGAR 6-TV Advanced)
∂ Current Time and Date
∂ User text (e.g. "LumaSense")
Example of a video image
Triaxial video-output
Focus adjustment set screw
12-pin connector4 digit LED display
