LumaSense technologies IS 6-TV Advanced User Manual

Series 6 – TV Advanced Manual Software Infrawin ∂ 13
4 Software InfraWin
You can configure the video image and display options using a PC and the InfraWin 5 software
(included in scope of delivery).
4.1 Set Video Mode Parameters

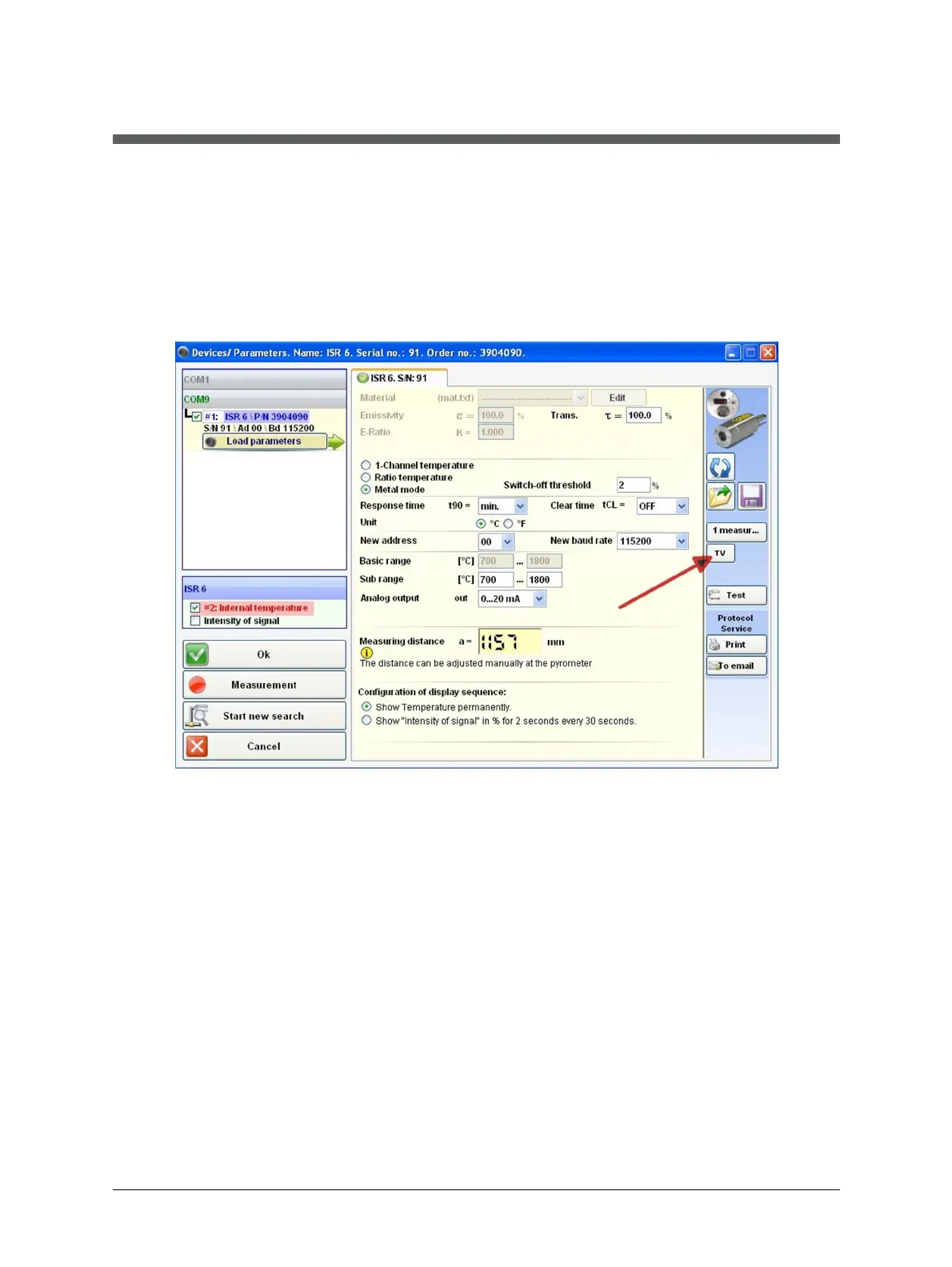

1. Choose TV for setting the parameters of the video module.
2. Complete the following fields on the screen:
∂ Text: Enter user text (e.g "LumaSense")
∂ Parameters: Display in addition to measuring temperature
o Off (no parameter is displayed)
o Device temperature
o Measuring distance
o Serial number
o Signal intensity (ISR 6-TV Advanced and IGAR 6-TV Advanced only)
∂ Brightness: Selects the brightness adjustment mode of the video image:
automatic or manual
∂ Video Output: To turn on/off the video output (high impedance=off)
∂ Date and Time Settings: Set the current time and date
3. Click the Accept button to save the settings.
4.2 Adjusting Brightness
You can set the brightness control to Manual (Man.) or Automatic (Auto) using the InfraWin 5
software.
