Series 6 – TV Advanced Manual Software Infrawin ∂ 14

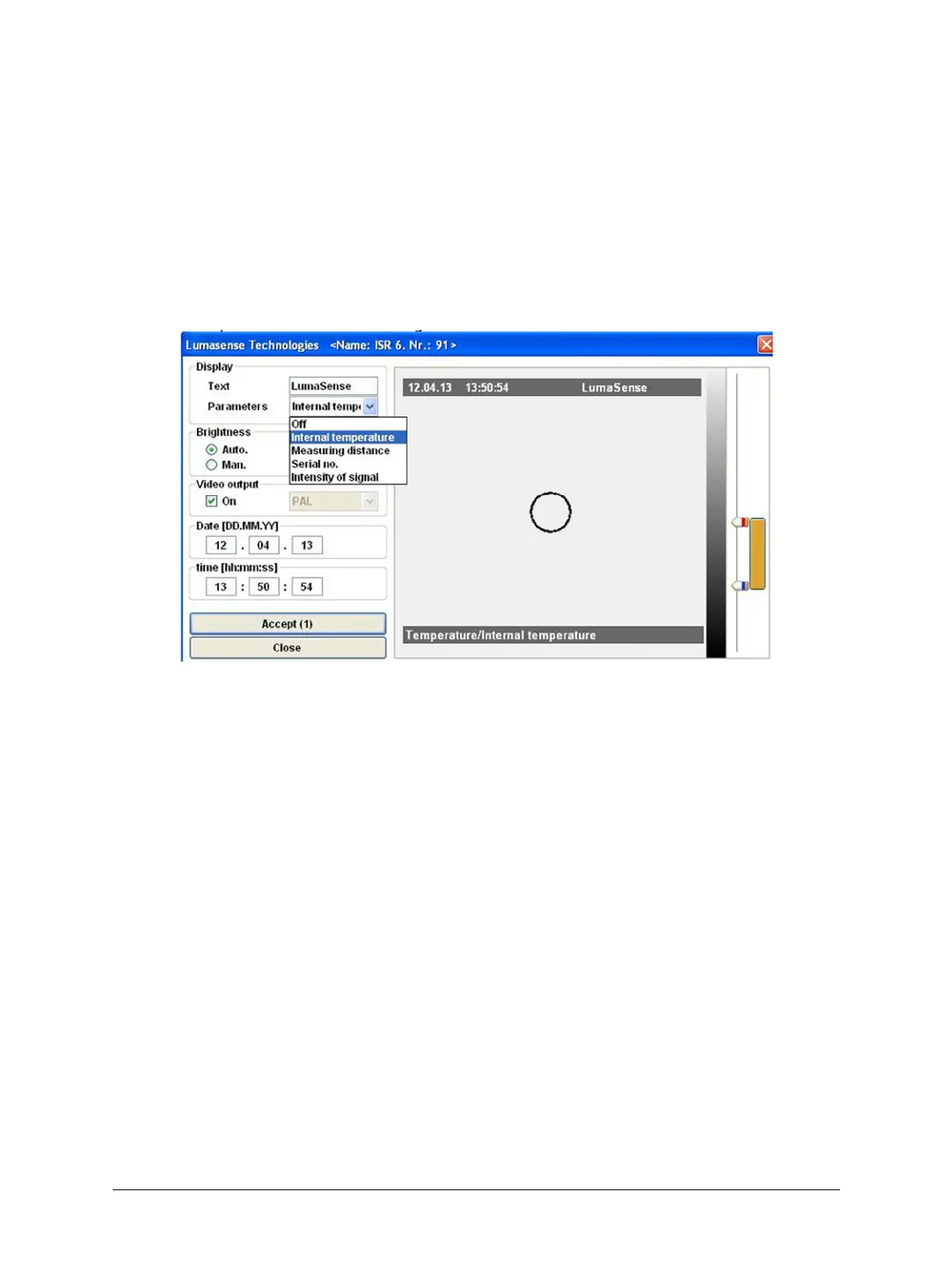

∂ Manual - the brightness of the video image can be set manually using the slider at the
right side of the video image.
∂ Automatic - the brightness of the video image is automatically controlled. Using the
two sliders (red and blue) at the right side of the video image, a range of brightness can
be set where the automatic control should work. With the yellow button, the selected
range can be moved.
If the circle (representing the current brightness) is within the chosen range, automatic
brightness control is not active. Once the circle is outside of the chosen range, automatic
brightness control activates and automattically adjusts the brightness until the circle returns to
the chosen range.
These settings affect the video chip in the pyrometer. By pressing the Accept button, the
settings are stored in the pyrometer.
