Series 6 – TV Advanced Manual Electrical Installation ∂ 12
Operating Mode

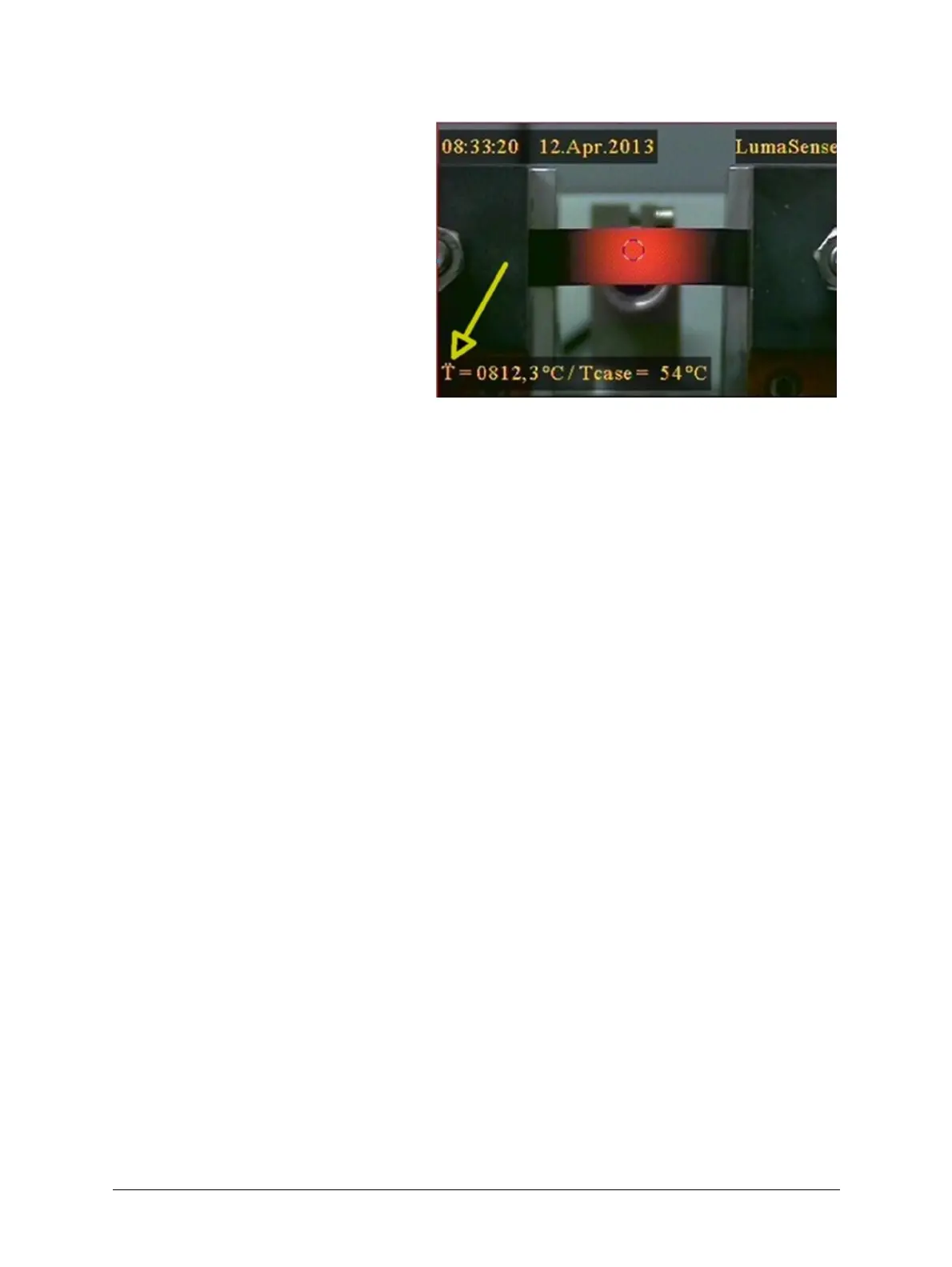

The two dots above the letter “T” show
the selected operating mode
(ISR 6-TV Advanced and
IGAR 6-TV Advanced only).
∂ 2-channel mode: 2 dots
displayed. If the signal falls
below the set Relative Signal (see
"Relative Signal" in
ISR 6 Advanced or
IGAR 6 Advanced Manual), the
temperature displayed on the
image will be flashing.
∂ 1-channel mode: only the left
dot is displayed.
∂ Metal mode: the left dot is displayed continuously,
the right dot flashes.
∂ Smart-Mode (IGAR 6-TV Advanced only): both dots flash.
