Original Instructions Lumedica OQ LabScope 1.2 | Page 9 of
12. Holder for scanner attaches to vertical stage with one screw. Note that holder should be
orientated with arm at the bottom, otherwise scanner will be too high above the sample.
13. Place plate in base.
14. Insert scanner into scanner adapter and secure with the provided screws.
15. Insert scanner with adapter into holder on scanner stand.
16. Power up monitor by pressing power switch.
17. Power up OQ LabScope by pushing the button on top of the box.
18. Windows 10 OS will boot up and take you to the login screen.
19. Login username is: oqlabscope
20. Login password is: oqlabscope
21. Start OQ LabScope software by double clicking on Lumedica icon.
22. Software will come up on “Main” tab.
23. Push “Start Scan” button on “Main” tab.
24. OCT image will begin updating.
25. Push “Update Background” to minimize horizontal noise in image.
26. Place Scotch™ tape under handheld scanner and position scanner and tape so that top
of tape is near to the top of the OCT image.
27. Adjust the focus slider on the left side of the image to optimize.

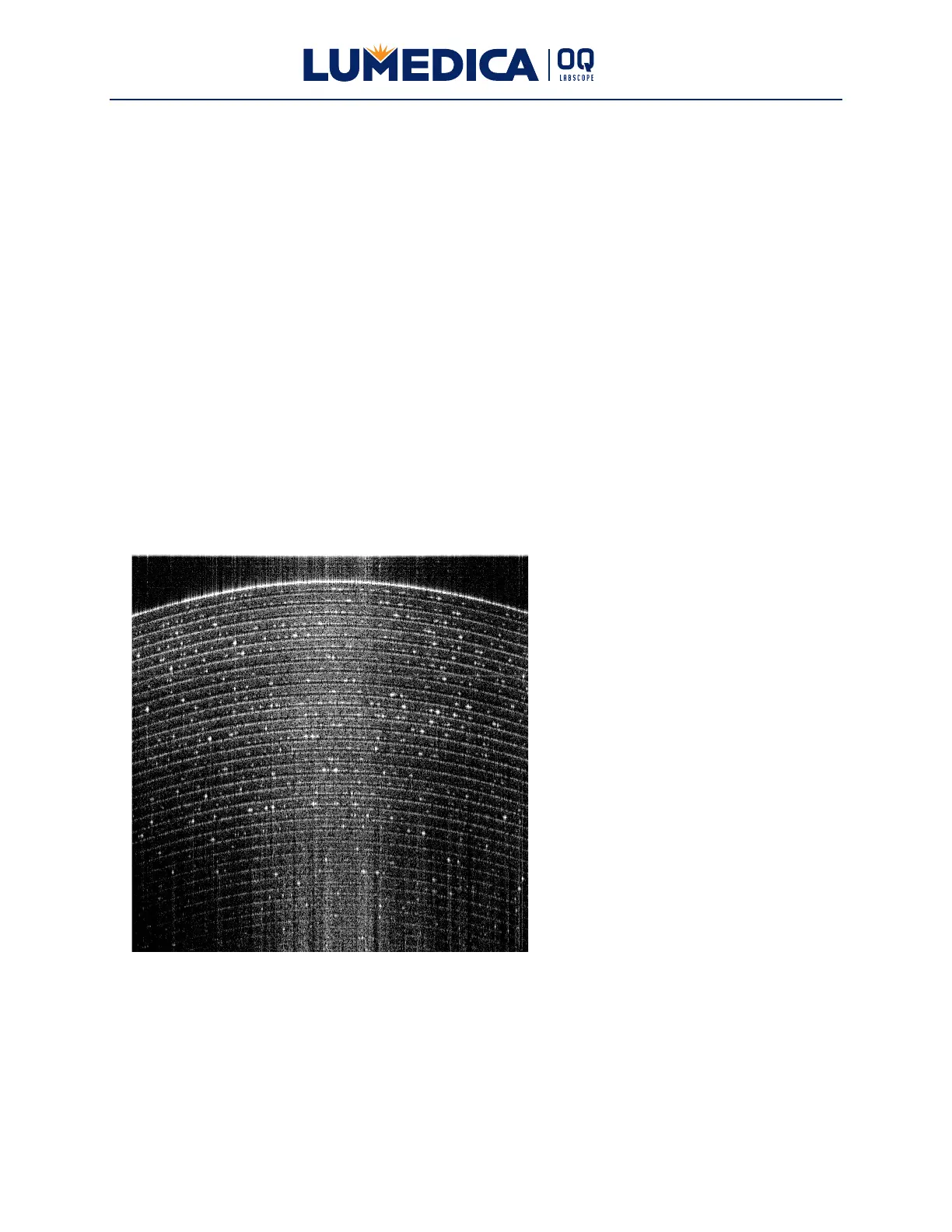

28. Image should look like this:
