10

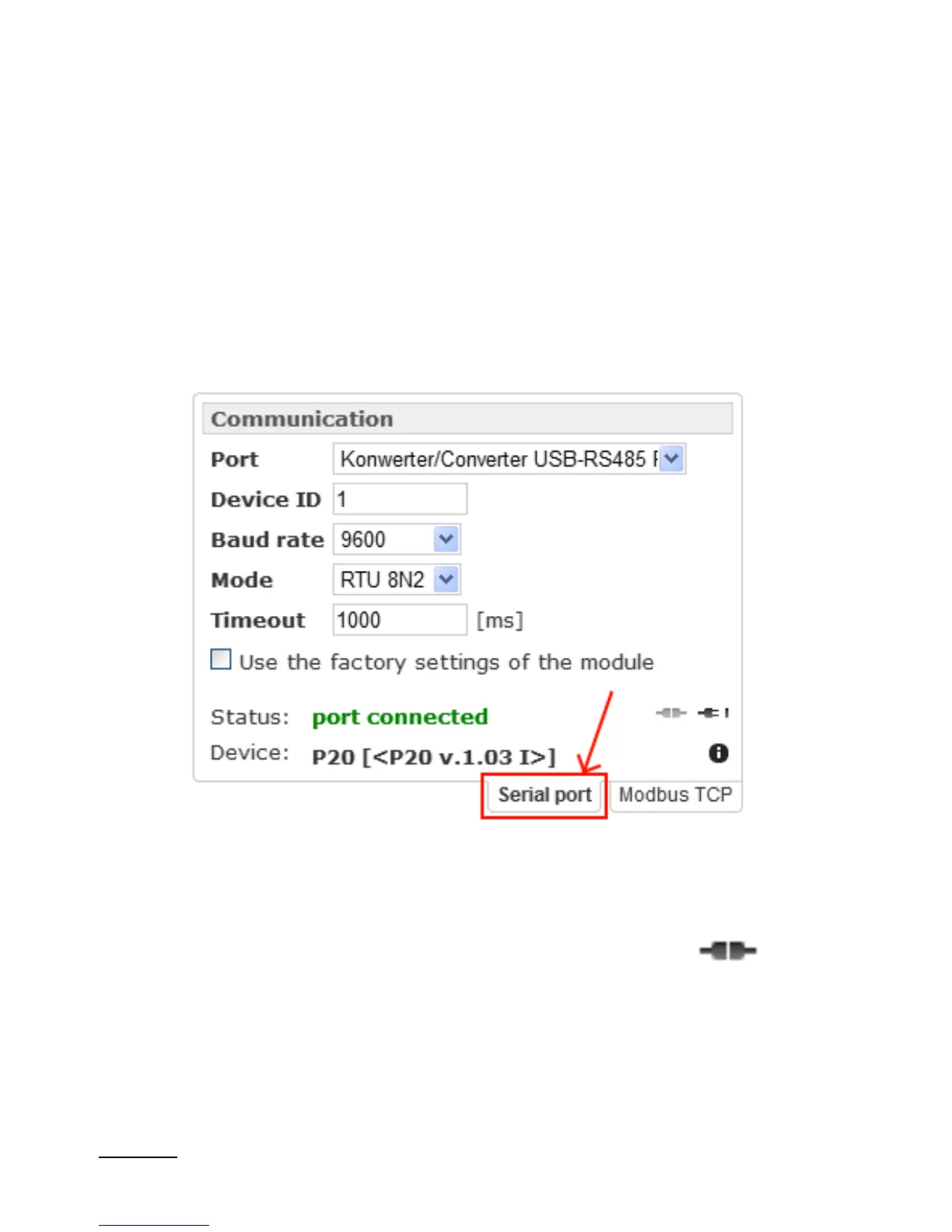

Fig. 4. Configuration of the connection with the P20 transducer.
5.1. Transducer configuration by means
of the eCon software
The eCon software is destined for the P20 transducer configuration.
One must connect the PC computer through the PD14 programmer and
configure the connection choosing Communication -> Serial port from
the menu (for the P20 transducer, we choose the address 1, baud rate
9600 kb/s, the mode RTU 8N2 and the appropriate port COM under
which the controller of the PD14 programmer has been installed).
After configuring the connection, use the Connect
button.
The eCon software will automatically identify the device and con-
nect to it and display all parameters in the panel P20- Configuration.
To change parameters, enter the new value in the parameter window
and click the Save button.
