Lumel P20 - Analog output overflow configuration

13

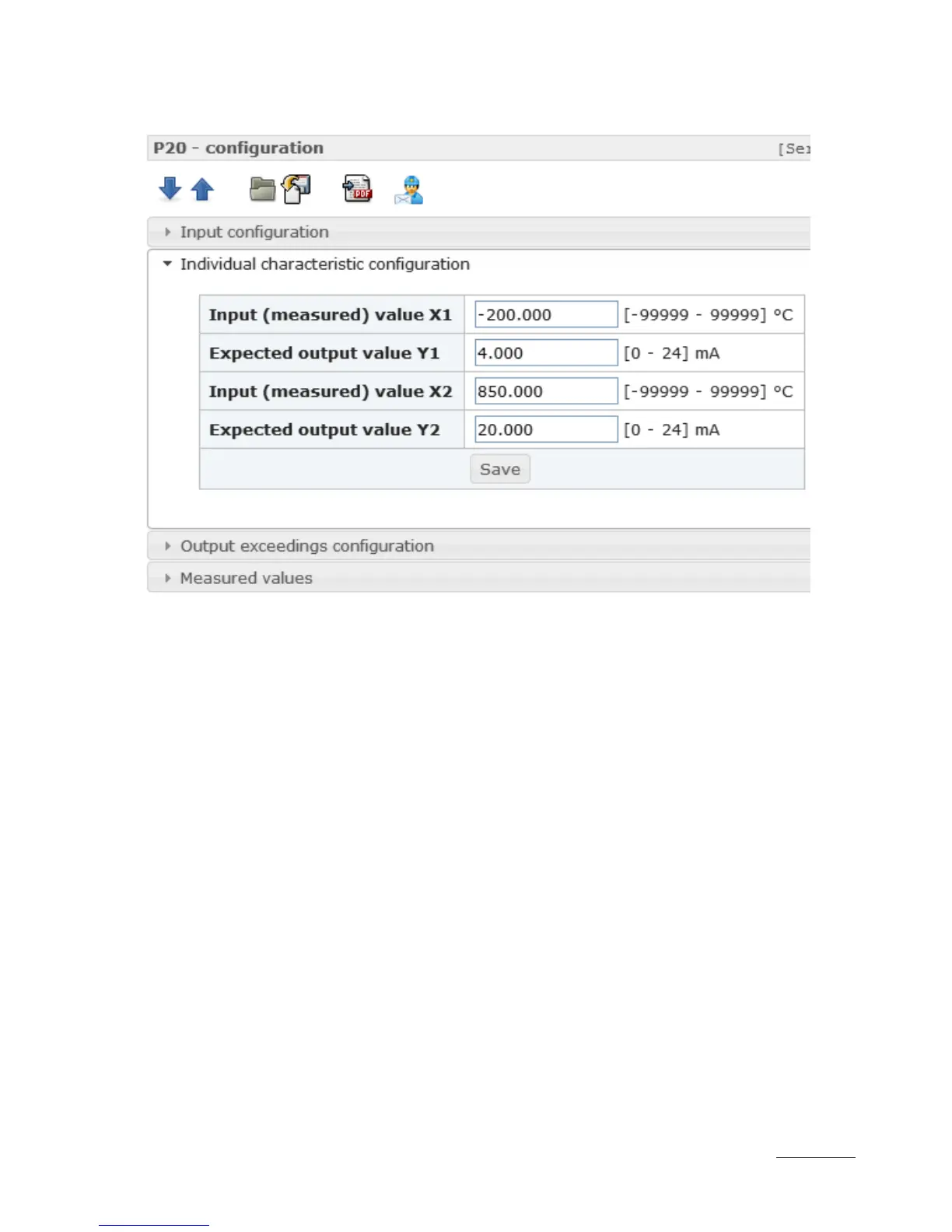

Fig. 7. View of the eCon software window “Individual characteristic
configuration”
5.1.3. Configuration of the analog output at overflows
The user has the additional possibility in the P20 transducer to confi-
gure the preservation of the analog output after the signal overflow
occurrence on the measuring input. By default, the service of overflows
is switched out – then, after the signal overflow on the input, the out-
put is still proportional to the steered up input beyond the basic output
range. After switching the overflow service on, the user can define him-
self by which value the output is to be steered up after the occurrence
of the higher or lower overflow.
