Lumens LC200 User Manual

18

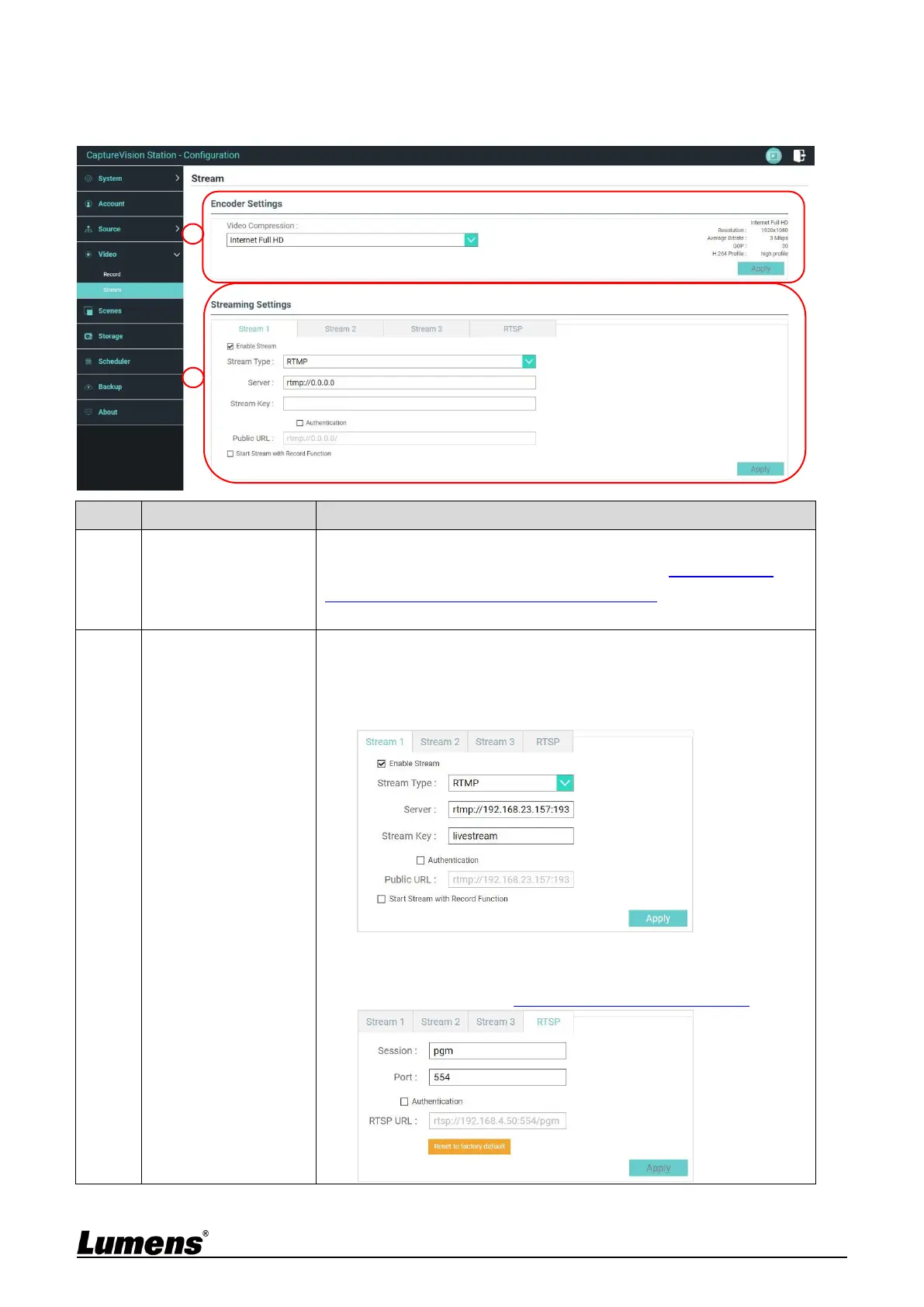

5.2.4.2 Streaming Settings
You may change the streaming settings here. Related settings must follow the
streaming protocol and the settings recommended by server system support.
No
Item
Function Descriptions
1
Encoder Settings
Encode Profile: 7 default encoding formats are available to be selected
by resolutions and average bitrate (Please refer to 5.2.4.1 for the
instructions of Encode Profile in Record Settings). You can also set
user-defined image quality.
2
Streaming Settings
 Streaming 1 / Streaming 2 / Streaming 3: You can customize 3
podcast addresses of network streaming
Supported streaming type: RTMP / RTMPS / RTP / Youtube /
Youtube_Gaming / Facebook Live / Twitch / Smashcast
 Real Time Streaming Protocol (RTSP): You can customize the real
time streaming route of LC200
Default RTSP location: rtsp://LC200_IP_address:554/pgm
1
2

Lumens LC200 Specifications

General

Internal	No
Product color	Black
LED indicators	Yes
Number of persons	- person(s)
Supported aspect ratios	16:9
Analog signal format system	-
HDMI in	4
USB version	3.2 Gen 1 (3.1 Gen 1)
Audio (L/R) out	1
Headphone outputs	0
USB connector type	USB Type-A
HDMI ports quantity	6
Number of HDMI outputs	2
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 40 °C
AC adapter output current	2 A
AC adapter output voltage	12 V
Maximum frame rate	60 fps
Supported resolutions	640 x 480, 1280 x 720, 1920 x 1080
Supported video modes	480p, 720p, 1080p
Megapixel	- MP

Weight and Dimensions

Depth	122.5 mm
Width	431 mm
Height	44.3 mm
Weight	1200 g
