Lumens LC200 User Manual

26

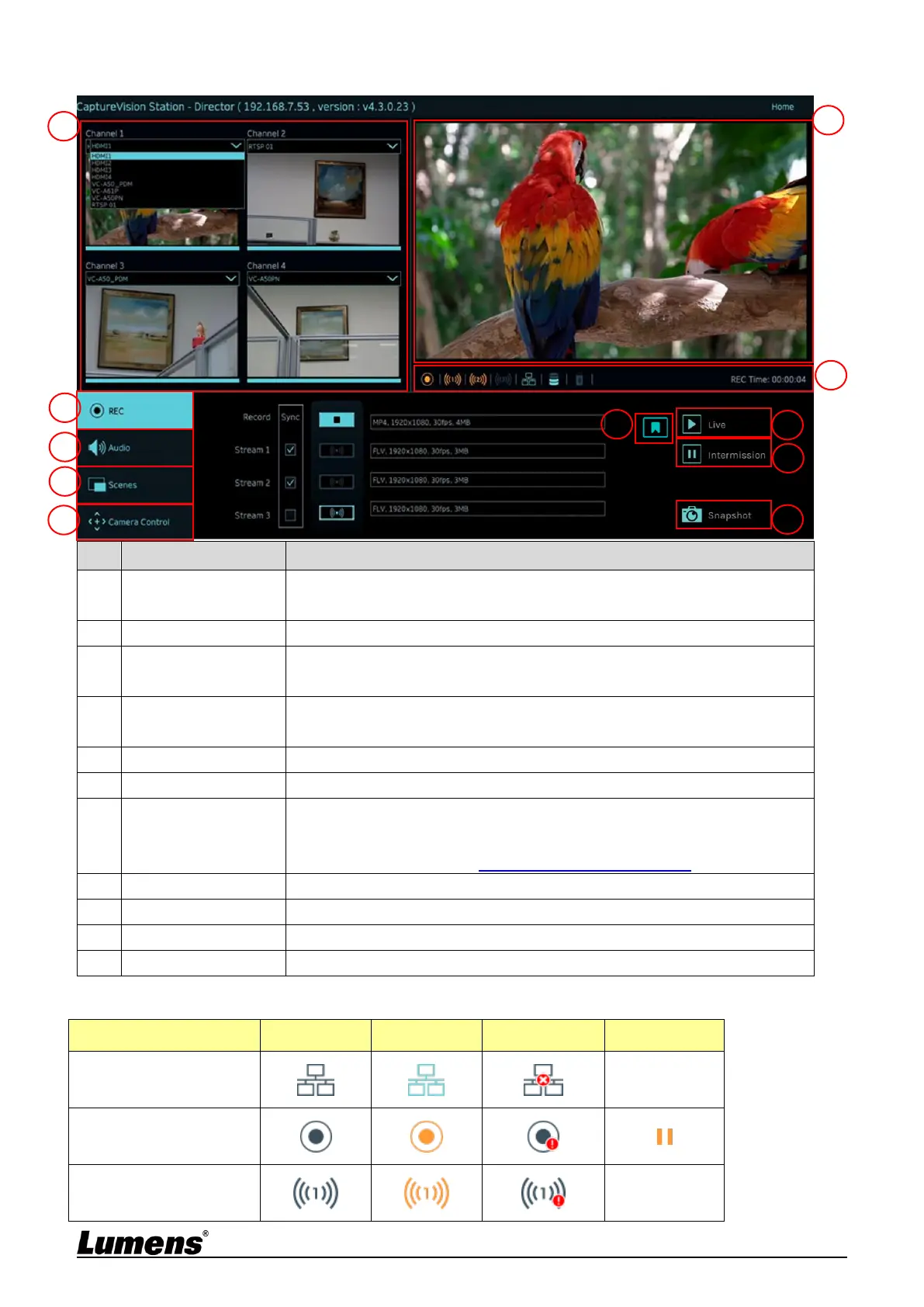

Online Director related feature description as below:
No
Item
Function Descriptions
1
Channel Signal
Selection
The drop-down menu of image sources includes 4-channel HDMI source,
IP camera, or streaming image
2
REC Record Setting
Start or stop recording; also select whether to synchronously stream or not
3
Audio Source
Management
Manage the input and output audio source; adjust the audio volume of the
recording
4
Scenes Layout
Setting
Fast select the recording layout, or customize the background and scene
style
5
Camera Control
Provide the IP video camera PTZ control or simple function settings
6
Main Screen Output
Display the layout of current output screens
7
Recording Progress
Bar
Display information of the current status of recording/streaming, such as
hard drive capacity
<Remark> Please refer to 5.3.1 Status Icon Description for details
8
Index
Timestamp can be added after the recording starts
9
Live
Switch to live image
10
Intermission
Switch to intermission image
11
Snapshot
Take a snapshot
5.3.1 Icon Description of Status Display Bar
Off
On
Error
Pause
Network
Record
Streaming 1 / 2 / 3
1
2
3
4
5
6
7
9
11
8
10

Lumens LC200 Specifications

General

Internal	No
Product color	Black
LED indicators	Yes
Number of persons	- person(s)
Supported aspect ratios	16:9
Analog signal format system	-
HDMI in	4
USB version	3.2 Gen 1 (3.1 Gen 1)
Audio (L/R) out	1
Headphone outputs	0
USB connector type	USB Type-A
HDMI ports quantity	6
Number of HDMI outputs	2
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 40 °C
AC adapter output current	2 A
AC adapter output voltage	12 V
Maximum frame rate	60 fps
Supported resolutions	640 x 480, 1280 x 720, 1920 x 1080
Supported video modes	480p, 720p, 1080p
Megapixel	- MP

Weight and Dimensions

Depth	122.5 mm
Width	431 mm
Height	44.3 mm
Weight	1200 g
