Lumens LC200 User Manual

28

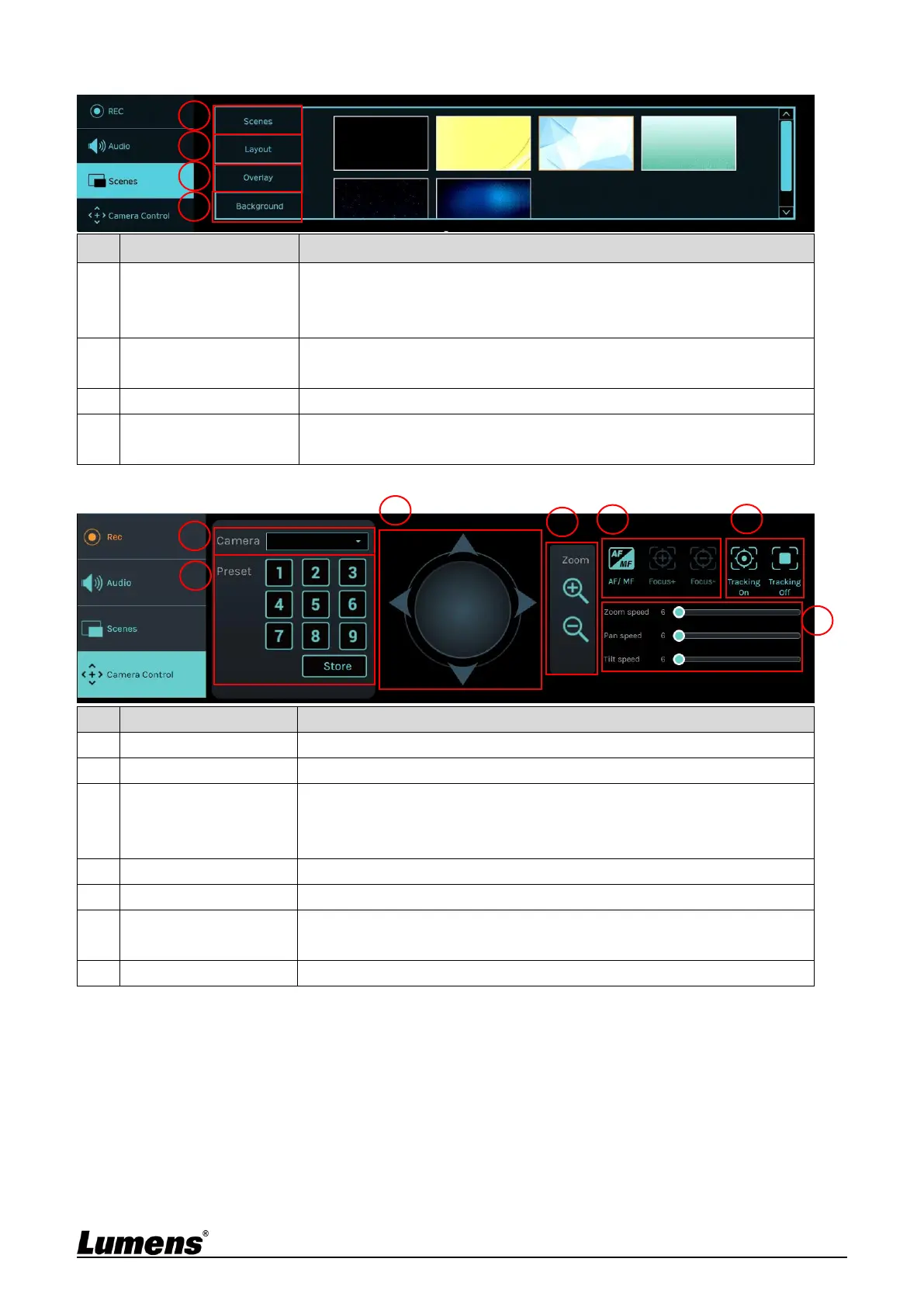

5.3.4 Scenes Layout Setting
No
Item
Function Descriptions
1
Scenes
Scenes page is the integration of “Overlay,” “Background Image,” and
“Recording Layout,” which can perform a series of scene change
according to your needs.
2
Layout
Apply a different layout to highlight the screen focus of different
channels. Click a desired layout style to apply.
3
Overlay
Select a desired style to apply
4
Background
Display the background images supported by “Director” system. Click the
thumbnail to apply
5.3.5 Camera Setting
No
Item
Function Descriptions
1
Camera
Select a desired camera to control
2
Preset Setting and Call
Click number keys to perform preset settings and calls
3
Direction Control Panel
Move the center point to control the shooting direction
Web pages do not support trackball controls. Please use arrow keys to
adjust the screen direction
4
Zoom In/Zoom Out
Zooms in/out the lens
5
Focus Setting
Set up auto or manual focus
6
Tracking Setting
Turn on/off the tracking function
 This function can only track cameras.
7
PTZ Speed Setting
Set up the moving speed of Pan Tilt Zoom
1
2
3
4
1
2
7
3
4
5
6

Lumens LC200 Specifications

General

Internal	No
Product color	Black
LED indicators	Yes
Number of persons	- person(s)
Supported aspect ratios	16:9
Analog signal format system	-
HDMI in	4
USB version	3.2 Gen 1 (3.1 Gen 1)
Audio (L/R) out	1
Headphone outputs	0
USB connector type	USB Type-A
HDMI ports quantity	6
Number of HDMI outputs	2
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 40 °C
AC adapter output current	2 A
AC adapter output voltage	12 V
Maximum frame rate	60 fps
Supported resolutions	640 x 480, 1280 x 720, 1920 x 1080
Supported video modes	480p, 720p, 1080p
Megapixel	- MP

Weight and Dimensions

Depth	122.5 mm
Width	431 mm
Height	44.3 mm
Weight	1200 g
