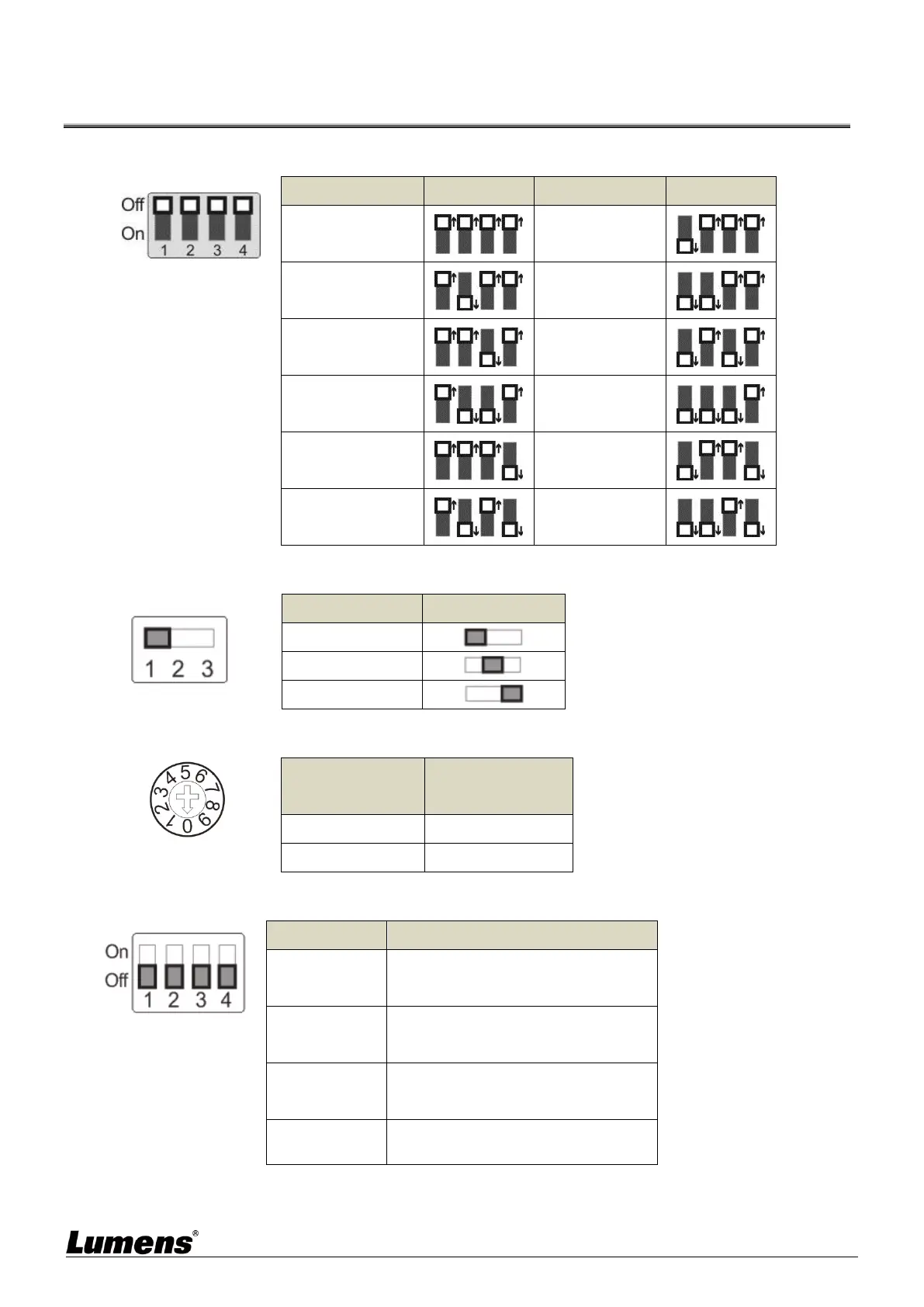

Chapter 6 DIP Switch Setting
6.1 OUTPUT Switch
Output Mode
Setting
Output Mode
Setting
1920x1080/60p
1920x1080/50p
1920x1080/30p
1920x1080/25p
1920x1080/60i
1920x1080/50i
1280x720/60p
1280x720/50p
1080/59.94p
1080/59.94i
1080/29.97p
720/59.94p
6.2 IR SELECT
ID
Setting
1
2
3
6.3 Camera Address Selector
Setting
Function
Descriptions
0~7
ID 0~7
8~9
Reserved
6.4 System Switch
Setting
功能說明
DIP 1
RS-232/RS-422 Communication Control
OFF: RS-232 / ON: RS-422
DIP 2
IR signal output
OFF: Off / ON: On
DIP 3
Communication baud rate
OFF: 9600 / ON : 38400
DIP 4
Reserved
