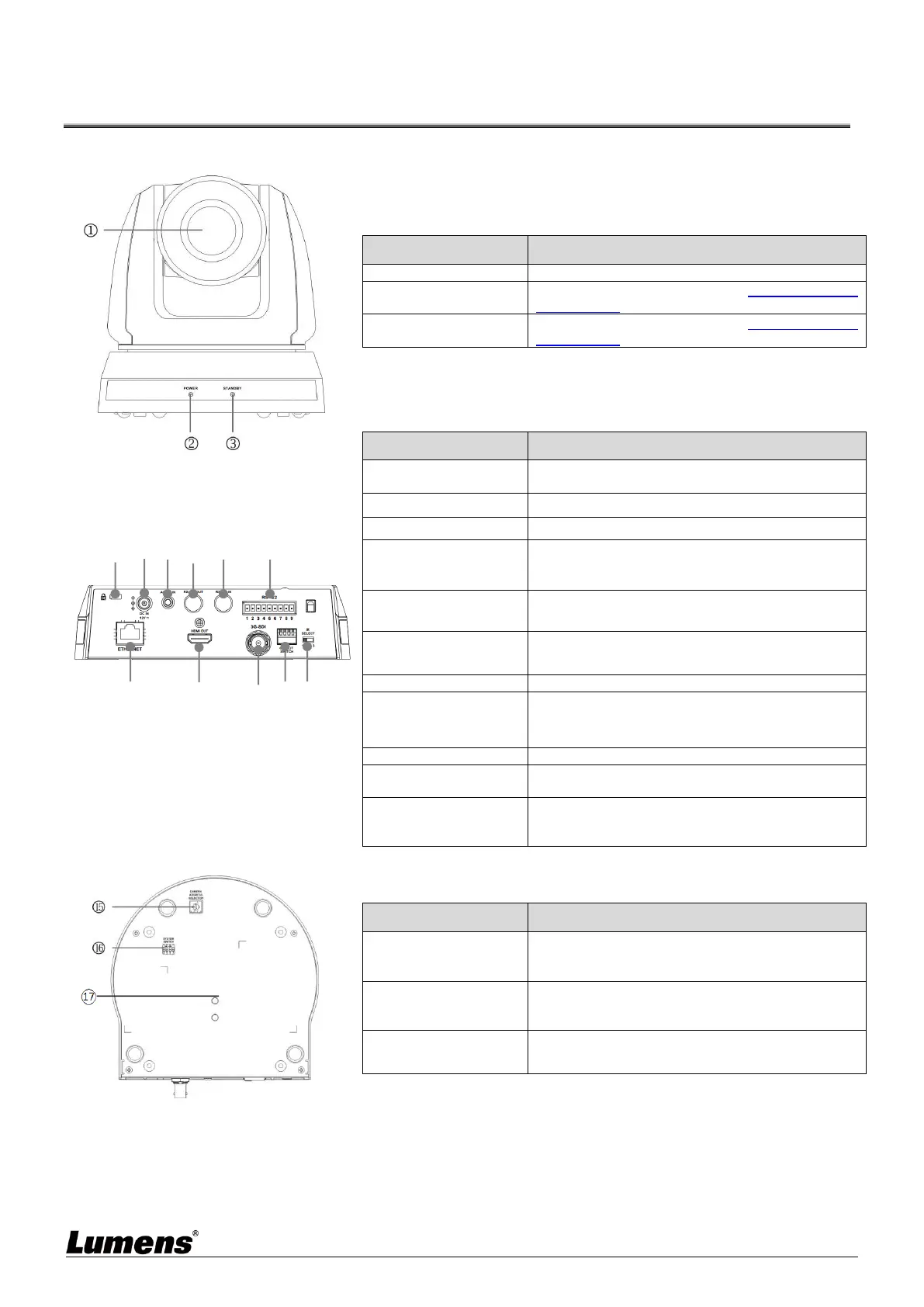

Chapter 2 Product Overview and Interface
2.1 I/O functions Introduction
Item
Function Descriptions
1. Camera lens
HD camera lens
2. Power LED
Display the status, please refer to 2.2 Description of
LED indicator
3. Standby LED
Display the status, please refer to 2.2 Description of
LED indicator
Item
Function Descriptions
4. Kensington lock
hole
Safety lock slot
5. Power input
AC power supply connecting port
6. Audio In
Support Line In/Mic In
7. RS-232 output
RS-232 output port, at most 7 cameras can be
connected in a serial connection
8. RS-232 input
RS-232 input port, at most 7 cameras can be
connected in a serial connection
9. RS-422 connecting
RS-422 connecting port, at most 7 cameras can be
connected in a serial connection
10. Network port
Support IEEE 802.3at PoE + power supply
11. HDMI output
HDMI output (support Audio output)
12. 3G-SDI
3G-SDI output
13. OUTPUT Switch
Adjust the resolution setting. The default is 1920 x
1080/60p
14. IR SELECT
Remote control ID setting
It can be controlled only when it corresponds to the
Camera Select on the remote control
Item
Function Descriptions
15. Camera Address
Selectors
Camera ID Setting
16. SYSTEM Switch
System DIP Setting
17. Tripod lock hole
The camera is mounted on a (specification) 1/4” -
-20 UNC tripod







⑪
⑫
⑬
⑭

Lumens VC-TA50 Specifications

General

Brand	Lumens
Model	VC-TA50
Category	Digital Camera
Language	English
